Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 13
Flow Rating: 19 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 73.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty: 1050.0
Resistance Ohms Full: 70.0
Strainer Included: Yes
System Pressure: 49 psi
Terminal Gender: Male
Terminal Quantity: 3
Terminal Type: Blade
UPC: 689604061527
Vapor Pressure Sensor: No
Voltage: 13.0 VDC

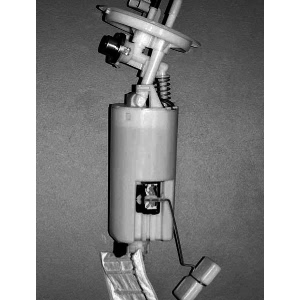

Part Description: 1996 Plymouth Grand Voyager Fuel Pump Module Assembly
More Info
Vehicle Fitment
1996 Plymouth Grand Voyager | All Trims | 4 Cyl 2.4L
1996 Plymouth Grand Voyager | All Trims | 6 Cyl 3.8L
1996 Plymouth Grand Voyager | All Trims | 6 Cyl 3.0L
1996 Plymouth Grand Voyager | All Trims | 6 Cyl 3.3L
