Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F3005A |

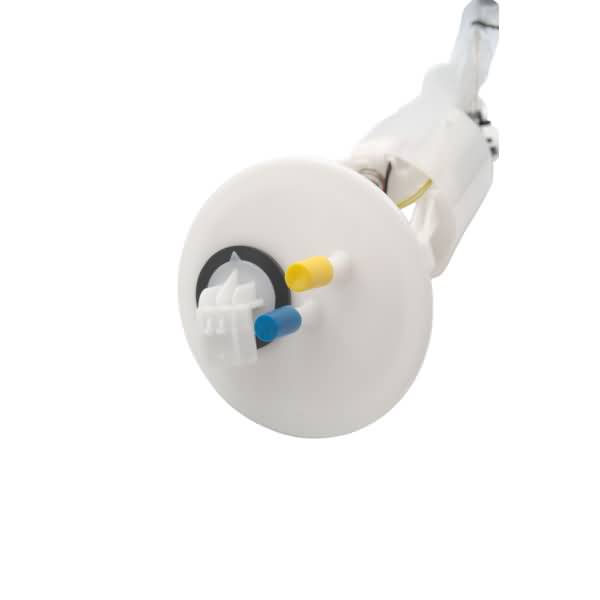

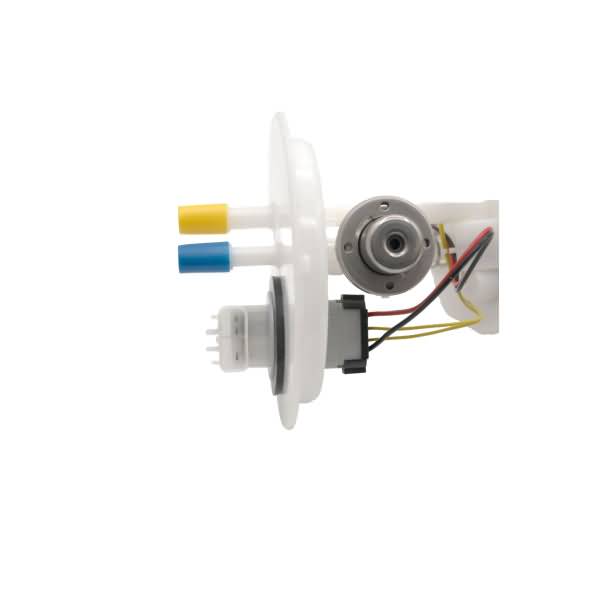

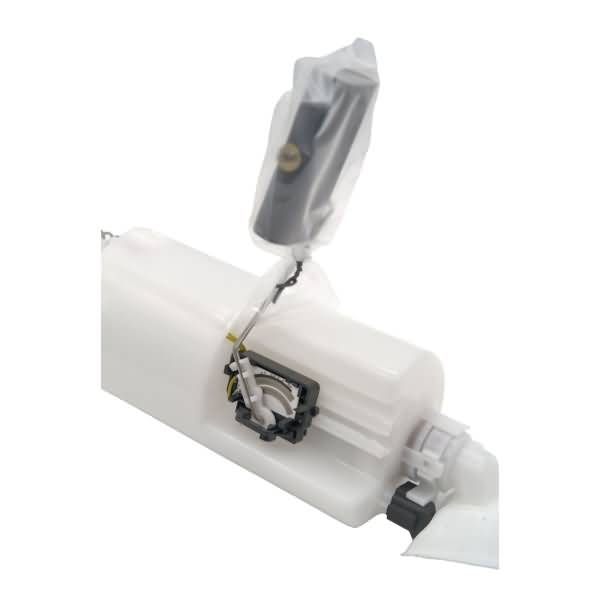

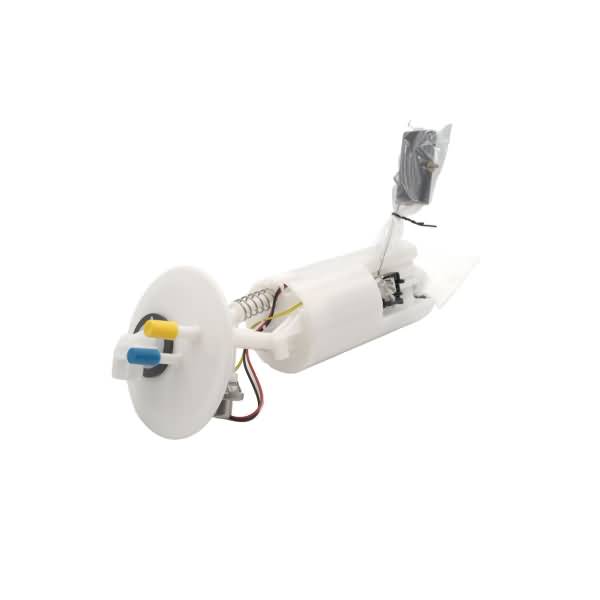

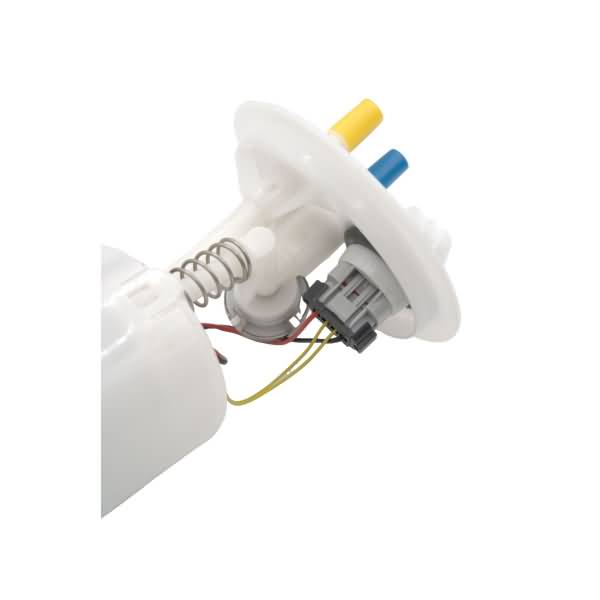

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 8 |
Average Flow Rating(GPH) | 27.8 |
Connector Gender | Female |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Filter Included | No |

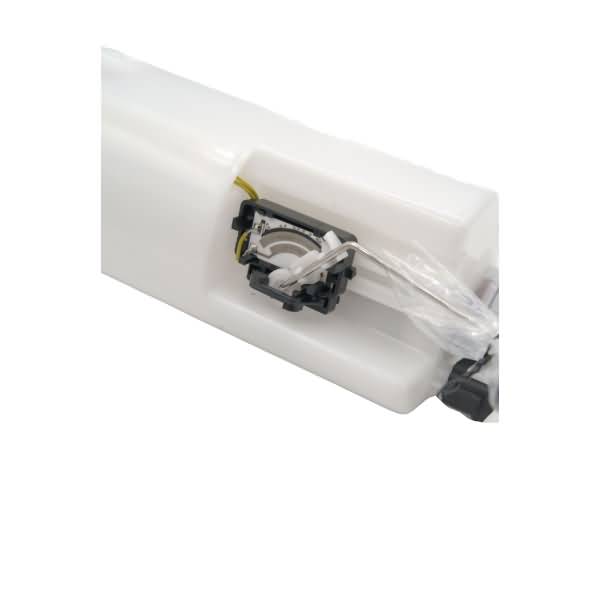

Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Fuel Type | Rollervane |

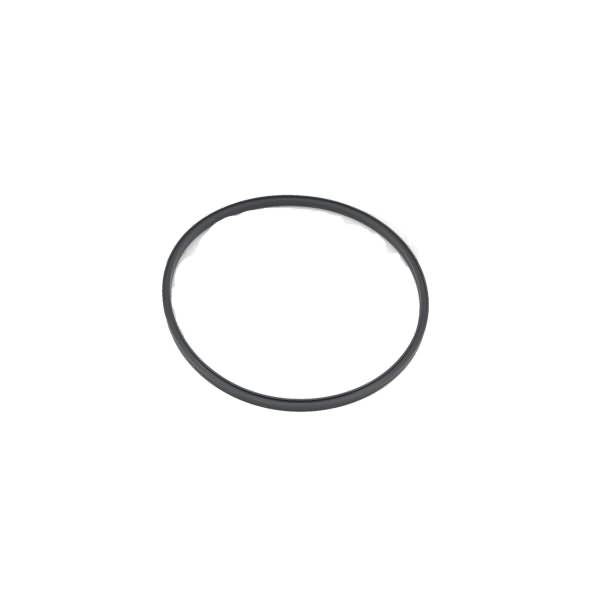

Gasket or Seal Included | Yes |
Gasket Or Seal Material | FKM |
Grade Type | Regular |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.5 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal or External | Internal |
Internal Or External Strainer | Internal |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 49.6 |
Maximum Pump Pressure (PSI) | 52.8 |
Minimum Free Flow (GPH) | 39.6 |
Minimum Pump Pressure (PSI) | 48.7 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Product Height (in) | 5.31 |
Product Length (in) | 16.54 |
Product Width (in) | 6.69 |
Pump Type | Rollervane |

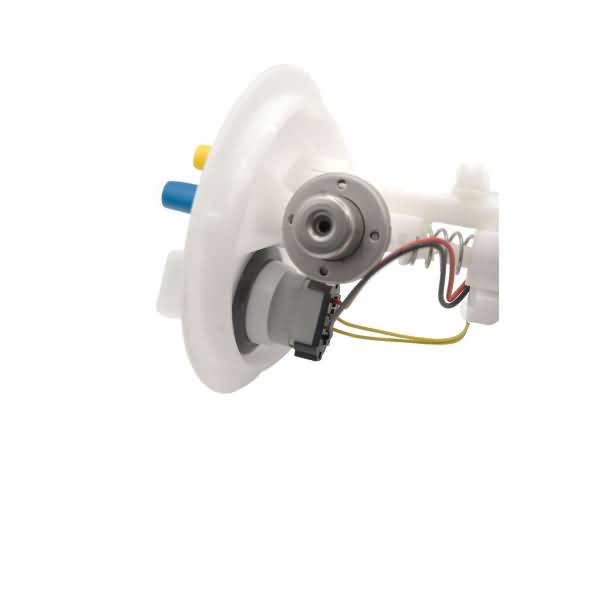

Regulator Included | Yes |
Resistance Ohms Empty | 1050 |
Resistance Ohms Full | 70 |

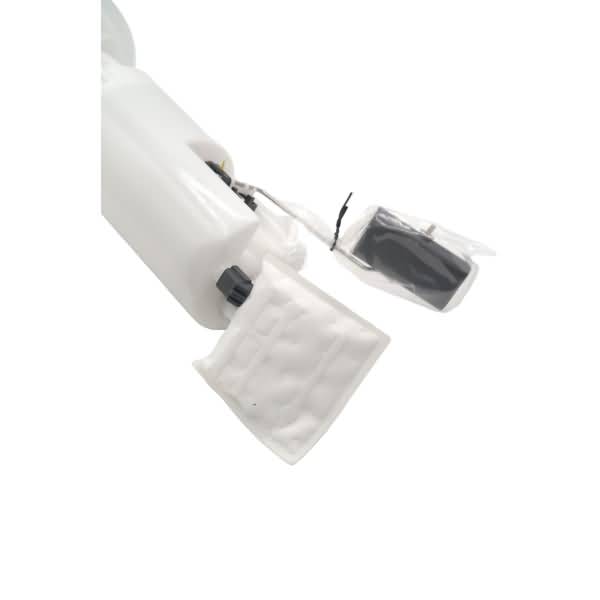

Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845130051 |
Voltage | 12V |
Weight (lbs) | 2.36 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2000 Chrysler Grand Voyager | All Trims | 6 Cyl 3.0L |
2000 Chrysler Grand Voyager | All Trims | 6 Cyl 3.3L |
1996-2000 Chrysler Town & Country | All Trims | 6 Cyl 3.3L |
1996-2000 Chrysler Town & Country | All Trims | 6 Cyl 3.8L |
2000 Chrysler Voyager | All Trims | 4 Cyl 2.4L |
2000 Chrysler Voyager | All Trims | 6 Cyl 3.0L |
2000 Chrysler Voyager | All Trims | 6 Cyl 3.3L |
1996-1999 Dodge Caravan | All Trims | 6 Cyl 3.8L |
1996-2000 Dodge Caravan | All Trims | 4 Cyl 2.4L |
1996-2000 Dodge Caravan | All Trims | 6 Cyl 3.0L |
