Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0215 |

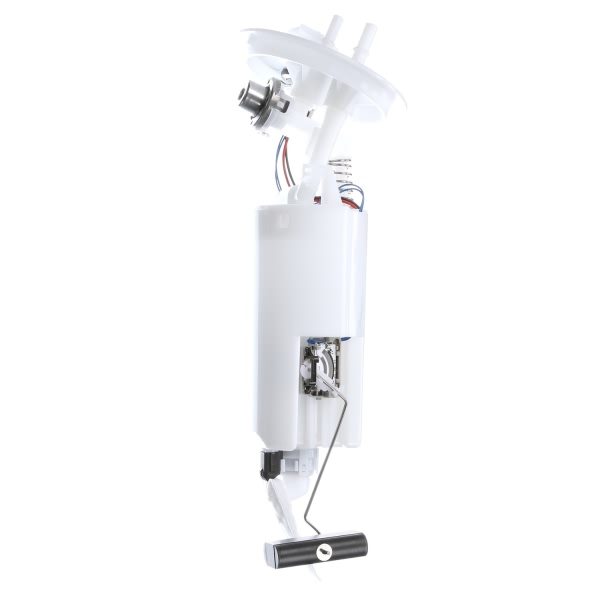

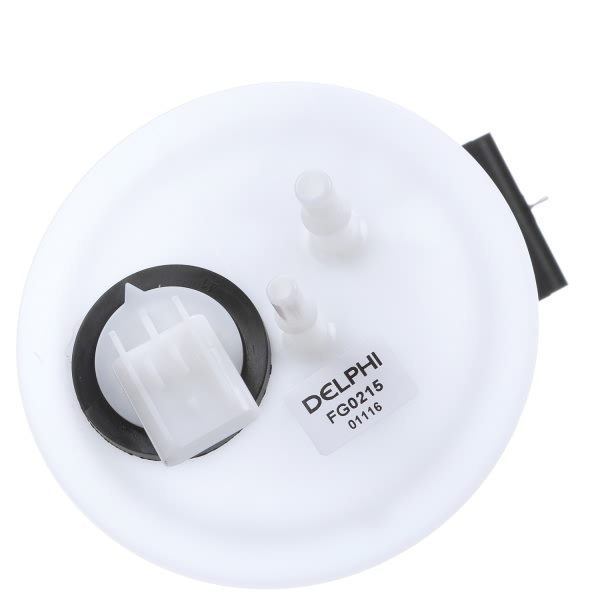

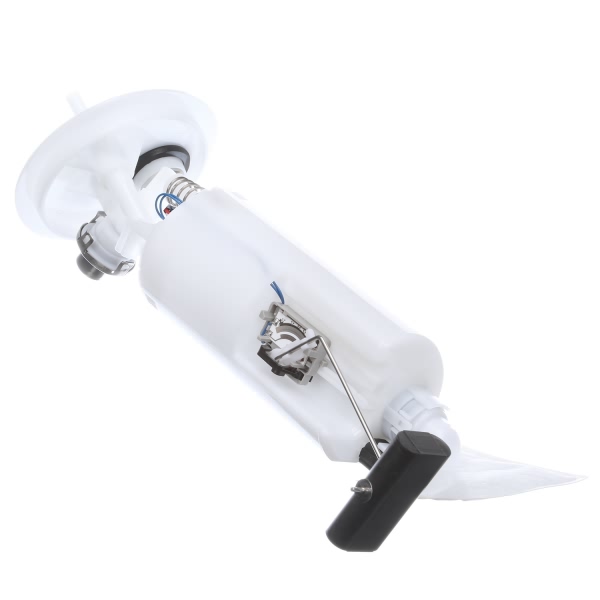

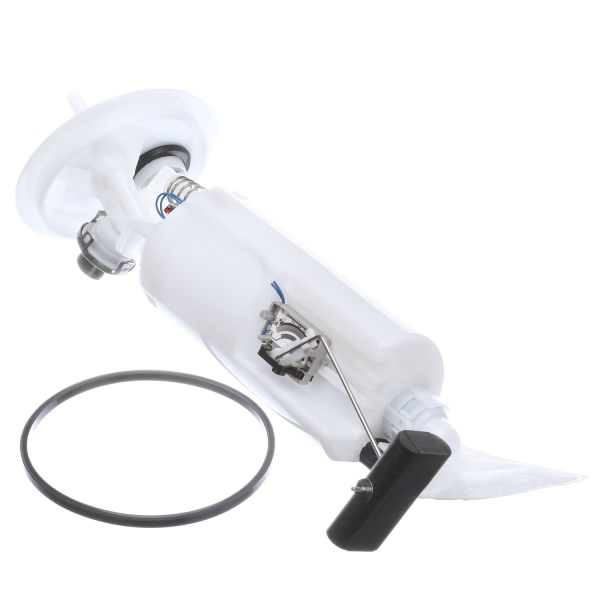

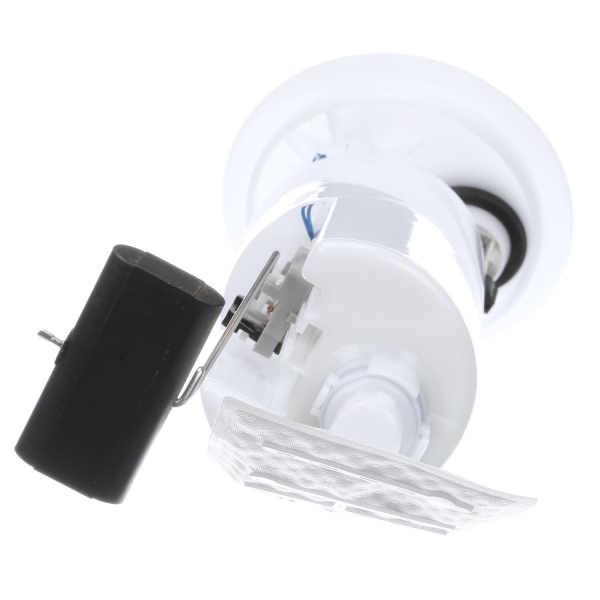

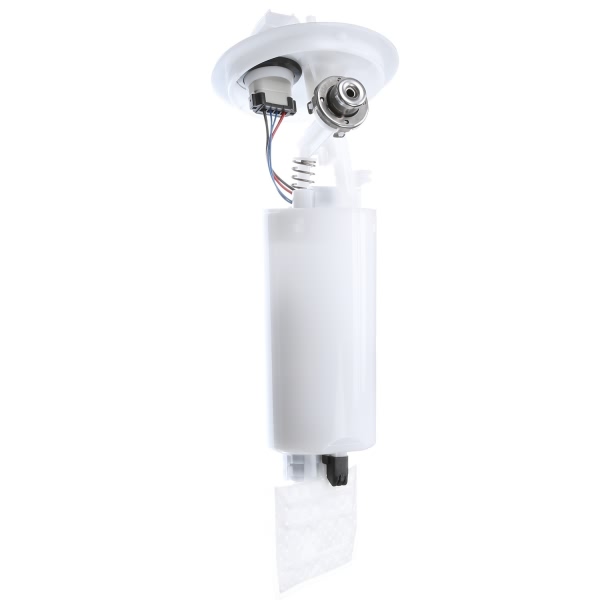

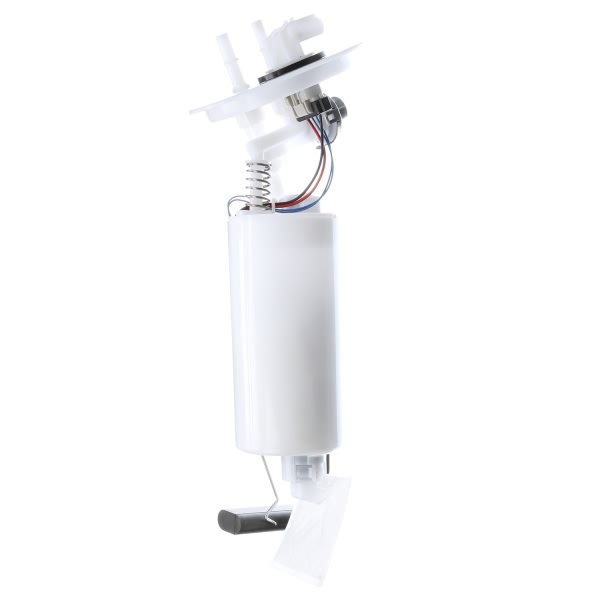

Part Description | Fuel Pump Module Assembly |
Current Draw | 13 |
Flow Rating | 19 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Maximum Pressure | 73.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 1050.0 |
Resistance Ohms Full | 70.0 |
Strainer Included | Yes |
System Pressure | 49 psi |

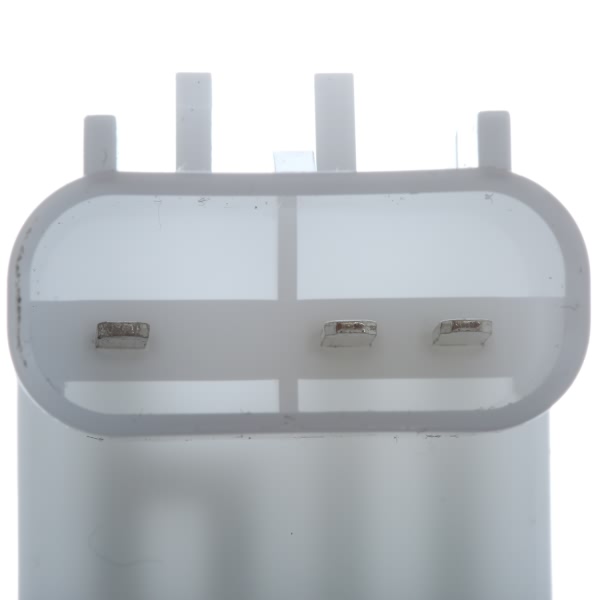

Terminal Gender | Male |
Terminal Quantity | 3 |
Terminal Type | Blade |
UPC | 689604061527 |
Vapor Pressure Sensor | No |
Voltage | 13.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2000 Chrysler Grand Voyager | All Trims | 6 Cyl 3.0L |
2000 Chrysler Grand Voyager | All Trims | 6 Cyl 3.3L |
2000 Chrysler Grand Voyager | All Trims | 6 Cyl 3.8L |
1996-2000 Chrysler Town & Country | All Trims | 6 Cyl 3.3L |
1996-2000 Chrysler Town & Country | All Trims | 6 Cyl 3.8L |
2000 Chrysler Voyager | All Trims | 4 Cyl 2.4L |
2000 Chrysler Voyager | All Trims | 6 Cyl 3.0L |
2000 Chrysler Voyager | All Trims | 6 Cyl 3.3L |
1996-1999 Dodge Caravan | All Trims | 6 Cyl 3.8L |
1996-2000 Dodge Caravan | All Trims | 4 Cyl 2.4L |
