1987 Volkswagen Cabriolet
Gates® Engine Coolant Reservoir Hose for 1987 Volkswagen Cabriolet
PartNumber: 28468Product Specifications- Notes: Cut to fit
- Angle: 90
- Arm Length 1 (in): 4"
- Arm Length 2 (in): 18"
- Centerline Length (in): 22"
- Inside Diameter 1 (in): 0.625"
- UPC: 072053062021
- Part Description: 1987 Volkswagen Cabriolet Engine Coolant Reservoir Hose
Vehicle Fitment- 1987 Volkswagen Cabriolet | All Trims | 4 Cyl 1.8L
$11.94
Four Seasons® A C Compressor With Clutch for 1987 Volkswagen Cabriolet
PartNumber: 58113Product Specifications- Notes: w/ SD508 Compressor; New w/ Clutch
- Belt Width IN: 0.375
- Belt Width MM: 9.525
- Clutch Included: Yes
- Clutch Maximum Diameter: 5.125
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Comp Head Prt Config: Rear-Horiz-O-Ring
- Compatible Refrigerant Oil Type: PAG 100
- Compressor Head Type: KB
- Compressor Type: SD508
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 0.953125
- Mount Distance B IN: 1.546875
- Mount Distance B MM: 39.370
- Mount Distance MM: 24.130
- Mounting Hardware: Not Included
- Mounting Type: Ear Mount
- New or Reman: New
- O-Ring A Number/Desc: [24608] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24610] / Green O-Ring
- O-Ring B Quantity: 1
- Pulley Belt Type: V-Belt
- Pulley Diameter MM: 130.048
- Pulley Groove Quantity: 2
- Pulley Lip Diameter: 5.125
- Pulley Outside Diameter: 5.125
- Pulley Ridge Diameter: 5.125
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Bullet
- UPC: 096361581135
- Part Description: 1987 Volkswagen Cabriolet A C Compressor With Clutch
Vehicle Fitment- 1987 Volkswagen Cabriolet | All Trims | All Engines
$193.27
Dayco® Small Id Hvac Heater Hose for 1987 Volkswagen Cabriolet
PartNumber: 87612Product Specifications- Color: Black
- Contains Heat Shield: N
- Contains Protective Sleeve: N
- End 1 Inside Diameter: 5/8
- End 2 Inside Diameter: 3/4
- Hose Type: Dual I.D. Hose
- Material: EPDM
- SAE Specification: SAE J20R3 Class D-1, SAE J1684 Type EC
- Trunk Height: 6
- UPC: 038244597987
- Part Description: 1987 Volkswagen Cabriolet Small Id Hvac Heater Hose
Vehicle Fitment- 1987 Volkswagen Cabriolet | All Trims | All Engines
$9.23
Gates® Hvac Heater Molded Hose for 1987 Volkswagen Cabriolet
PartNumber: 18080Product Specifications- Notes: Cut to fit
- Centerline Length (in): 6"
- Inside Diameter 1 (in): 0.62"
- Inside Diameter 2 (in): 0.75"
- Number of Branches: 0
- UPC: 072053178180
- Part Description: 1987 Volkswagen Cabriolet Hvac Heater Molded Hose
Vehicle Fitment- 1987 Volkswagen Cabriolet | All Trims | 4 Cyl 1.8L
$10.51

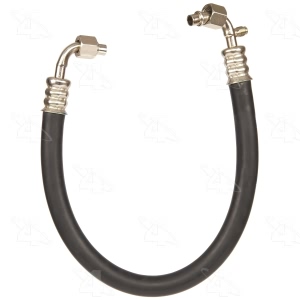

Four Seasons® A C Discharge Line Hose Assembly for 1987 Volkswagen Cabriolet
PartNumber: 55439Product Specifications- Notes: Discharge Line
- Bracket: w/o Bracket
- Component Type: Discharge Line
- Fittings Included: Included
- Gasket or Seal Included: Included
- Muffler: w/o Muffler
- O-Ring A Number/Desc: [24608] / Green O-Ring
- O-Ring A Quantity: 2
- O.E. Replacement: Yes
- Refrigerant Type: R12, R134a
- Service Port: w/ Service Port
- Suction End Type: Female O-Ring
- Switch Included: Not Included
- Switch Service Port: w/o Switch Port
- UPC: 096361554399
- Part Description: 1987 Volkswagen Cabriolet A C Discharge Line Hose Assembly
Vehicle Fitment- 1987 Volkswagen Cabriolet | All Trims | All Engines
$56.17
Four Seasons® A C Receiver Drier for 1987 Volkswagen Cabriolet
PartNumber: 33363Product Specifications- Body Diameter: 2.500
- Body Length: 6.000
- Bracket: w/o Bracket
- Connector B Type: Female O-Ring
- Connector Type: Male Insert O-Ring
- Desiccant: Yes
- Desiccant Replaceable: Not Replaceable
- Dia. MM: 63.500
- Fuse Plug: Yes
- Gasket / Seals: Included
- In Line Filter Material: Desiccant
- In Line Filter Outlet Fitting Type: Female
- Inlet Filter Fitting Thread Diameter: 0.625
- Inlet Filter Fitting Type: Female
- Inlet Fitting Diameter: 0.375
- Inlet Fitting Type: Male Insert O-Ring
- Inlet Fraction: 3/8
- Inlet IN: 0.375
- Inlet MM: 9.525
- Length MM: 152.400
- Material: Steel
- Meets / Exceeds OEM: Yes
- Moisture Indicator Window: No
- Mounting Bracket Included: Hardware not included
- O-Ring A Number/Desc: [24610] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24650] / Green O-Ring
- O-Ring B Quantity: 1
- O-Ring C Number/Desc: [24606] / Green O-Ring
- O-Ring C Quantity: 2
- Outlet Fitting Type: Female O-Ring
- Outlet Fraction: 3/8
- Outlet IN: 0.375
- Outlet MM: 9.525
- Overall Depth IN: 7.625
- Overall Depth MM: 193.675
- P. R. V.: No
- Service Port: w/o Service Port
- Sight Glass: Yes
- Stud: No
- Style: Steel Filter Drier
- Switch Port: w/ Switch Port
- Switch Port Dia. IN: 0.250
- Switch Port Dia.MM: 6.350
- UPC: 096361333635
- Part Description: 1987 Volkswagen Cabriolet A C Receiver Drier
Vehicle Fitment- 1987 Volkswagen Cabriolet | All Trims | All Engines
$13.52
Gates® Hvac Control Duct Hose for 1987 Volkswagen Cabriolet
PartNumber: 28091Product Specifications- Notes: w/o Calif Emission System
- Centerline Length (in): 39.37"
- Inside Diameter 1 (in): 1.57"
- UPC: 072053028218
- Part Description: 1987 Volkswagen Cabriolet Hvac Control Duct Hose
Vehicle Fitment- 1987 Volkswagen Cabriolet | All Trims | 4 Cyl 1.8L
$8.68
Four Seasons® A C System Valve Core And Cap Kit for 1987 Volkswagen Cabriolet
PartNumber: 26777Product Specifications- Notes: Caps and Valve Core Seal Kit; w/ R12 or R134a Retrofit System
- Cap Color: Red, Blue, Black
- Cap Inside Diameter: Specific
- Cap Material: Plastic
- Material: Aluminum
- Refrigerant Type: R12, R134a
- Style: Cap & Valve Kit
- UPC: 096361267770
- Valve Core Material: Specific
- Part Description: 1987 Volkswagen Cabriolet A C System Valve Core And Cap Kit
Vehicle Fitment- 1987 Volkswagen Cabriolet | All Trims | All Engines
$10.69
Four Seasons® A C System O Ring And Gasket Kit for 1987 Volkswagen Cabriolet
PartNumber: 26765Product Specifications- Notes: O-Ring and Gasket Seal Kit
- Material: Green Rubber O-Rings
- Style: O-Ring & Gasket Kit
- UPC: 096361267657
- Part Description: 1987 Volkswagen Cabriolet A C System O Ring And Gasket Kit
Vehicle Fitment- 1987 Volkswagen Cabriolet | All Trims | All Engines
$10.52
Four Seasons® A C Clutch Control Relay Harness Connector for 1987 Volkswagen Cabriolet
PartNumber: 37210Product Specifications- Connector Pin Qty: 5
- Connector Shape: Other design
- Gender: Female
- Printed Foot Note: Harness Connector for Bosch Relays 4 or 5
- Style: Harness Connector
- Terminal Gender: Female
- Terminal Quantity: 5
- UPC: 096361372108
- Wire Length IN: 6.000
- Part Description: 1987 Volkswagen Cabriolet A C Clutch Control Relay Harness Connector
Vehicle Fitment- 1987 Volkswagen Cabriolet | All Trims | All Engines
$10.29
Four Seasons® A C Expansion Valve for 1987 Volkswagen Cabriolet
PartNumber: 38609Product Specifications- Color: Brass
- Refrigerant Type: R134A
- Super Heat: 8.0
- UPC: 096361386099
- Part Description: 1987 Volkswagen Cabriolet A C Expansion Valve
Vehicle Fitment- 1987 Volkswagen Cabriolet | All Trims | All Engines
$23.69
Four Seasons® A C Evaporator Core for 1987 Volkswagen Cabriolet
PartNumber: 54668Product Specifications- Core Depth Fraction: 3-1/4; 3-1/8
- Core Depth MM: 79.375; 82.550
- Core Height Fraction: 10; 9-7/16
- Core Height MM: 239.713; 254.000
- Core Width Fraction: 10
- Core Width MM: 254.000
- Depth: 3.125; 3.250
- Height: 10.000; 9.4375
- Inlet Fitting Outside Diameter: No. 8
- Material: Aluminum
- O-Ring A Number/Desc: [24608] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24610] / Green O-Ring
- O-Ring B Quantity: 1
- Outlet Fitting Outside Diameter: No. 10
- UPC: 096361546684
- Width: 10.000
- Part Description: 1987 Volkswagen Cabriolet A C Evaporator Core
Vehicle Fitment- 1987 Volkswagen Cabriolet | All Trims | All Engines
$234.18
National® A/C Compressor Clutch Ball Bearing for 1987 Volkswagen Cabriolet
PartNumber: 5001-KFFProduct Specifications- Notes: w/Sanden SD-508 AC Compressor
- Part Description: 1987 Volkswagen Cabriolet A/C Compressor Clutch Ball Bearing
Vehicle Fitment- 1987 Volkswagen Cabriolet | All Trims | All Engines
