Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58113 |

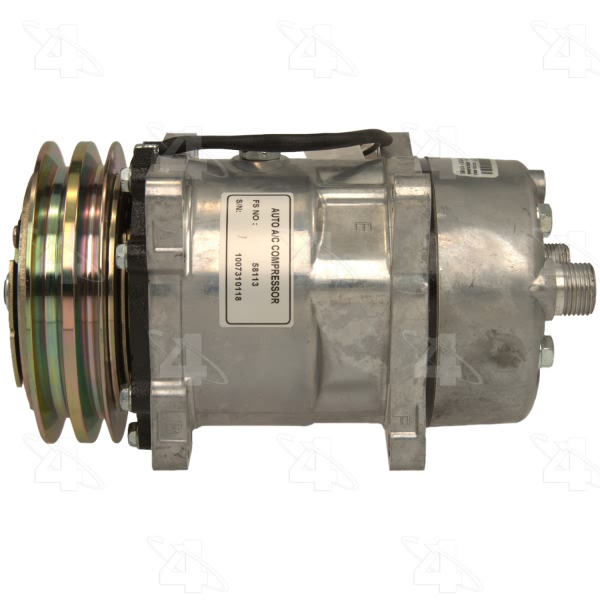

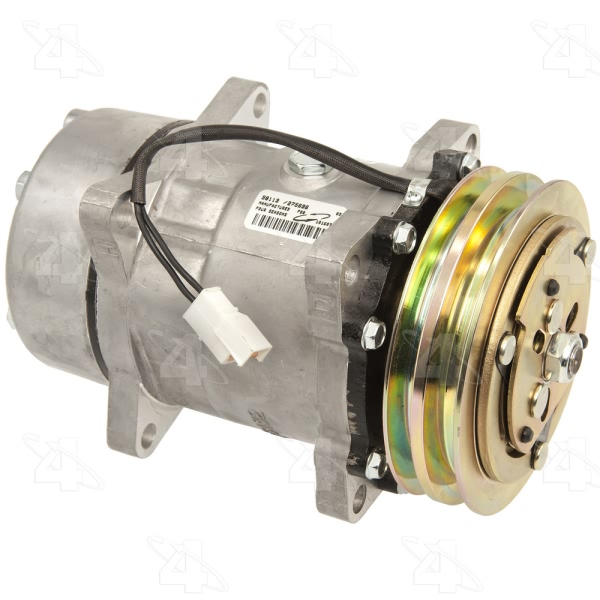

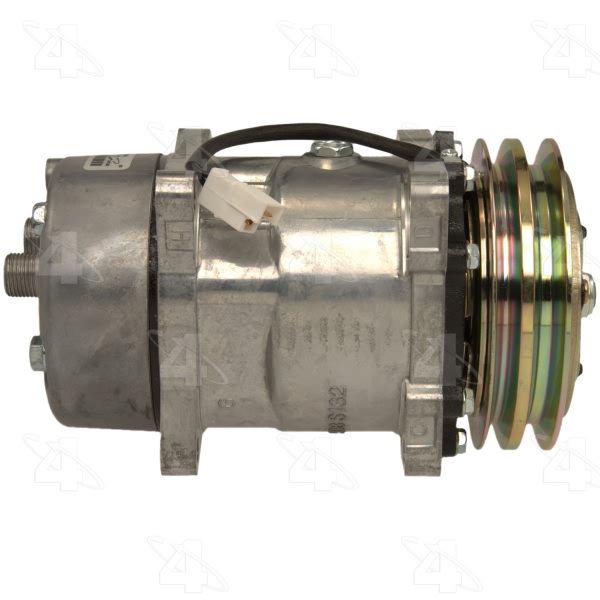

Part Description | A C Compressor With Clutch |
Belt Width IN | 0.375 |
Belt Width MM | 9.525 |

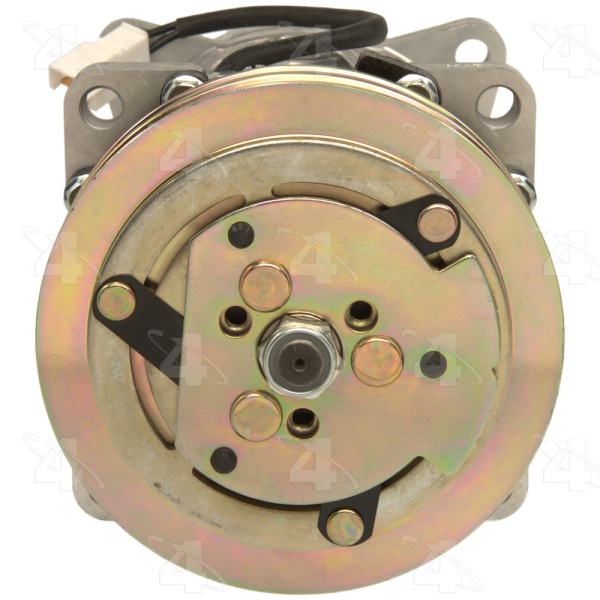

Clutch Included | Yes |
Clutch Maximum Diameter | 5.125 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |

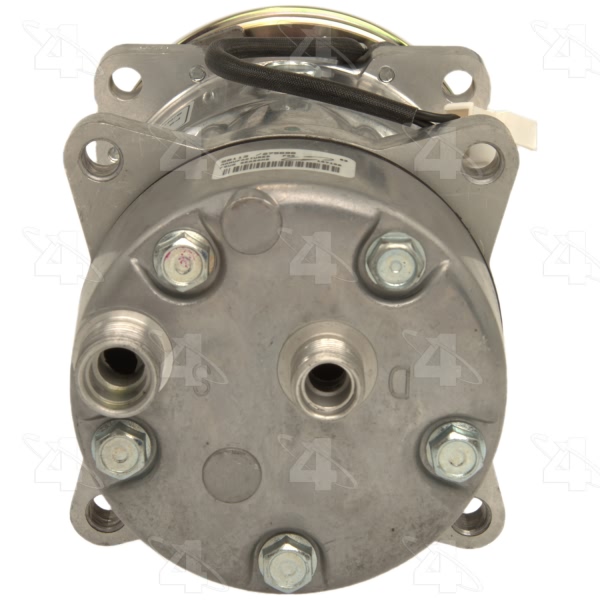

Comp Head Prt Config | Rear-Horiz-O-Ring |
Compatible Refrigerant Oil Type | PAG 100 |
Compressor Head Type | KB |
Compressor Type | SD508 |

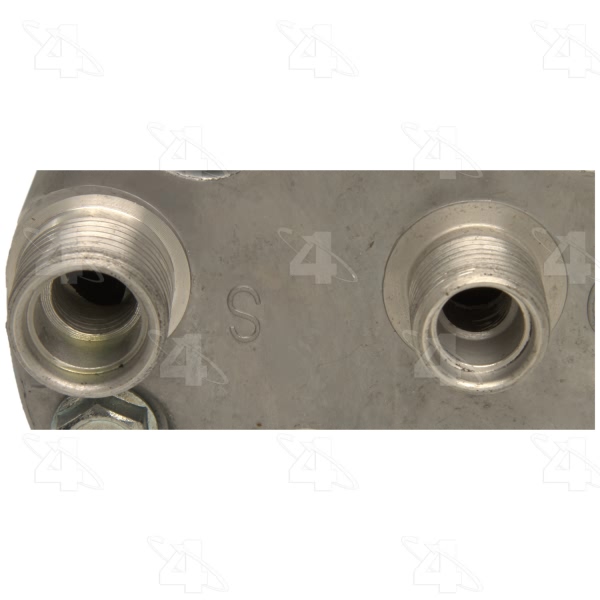

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 0.953125 |
Mount Distance B IN | 1.546875 |
Mount Distance B MM | 39.370 |
Mount Distance MM | 24.130 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | New |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24610] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | V-Belt |
Pulley Diameter MM | 130.048 |
Pulley Groove Quantity | 2 |
Pulley Lip Diameter | 5.125 |
Pulley Outside Diameter | 5.125 |
Pulley Ridge Diameter | 5.125 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |

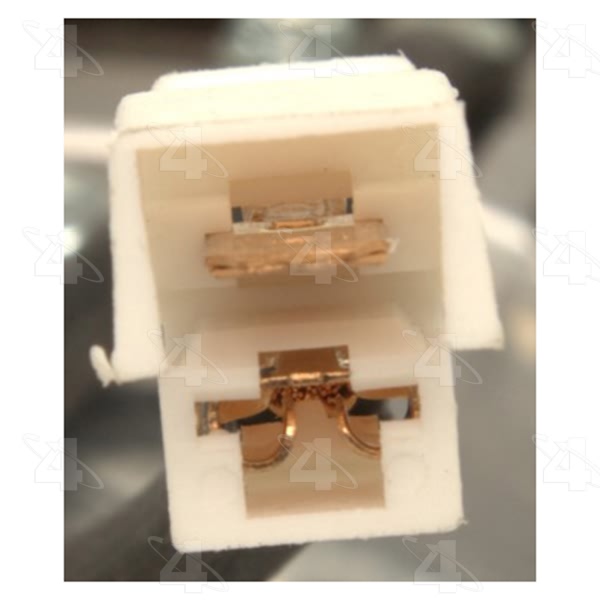

Terminal Type | Bullet |
UPC | 096361581135 |
Year Make Model | Trim | Engine |
---|---|---|
1985-1993 Volkswagen Cabriolet | All Trims | All Engines |
1985-1989 Volkswagen Golf | All Trims | All Engines |
1990-1992 Volkswagen Golf | All Trims | 4 Cyl 1.8L |
1985-1990 Volkswagen Jetta | All Trims | All Engines |
1991-1992 Volkswagen Jetta | All Trims | 4 Cyl 1.6L |
1991-1992 Volkswagen Jetta | All Trims | 4 Cyl 1.8L |
1985-1988 Volkswagen Scirocco | All Trims | All Engines |
