1986 American Motors Eagle
Gates® Safety Stripe Hvac Heater Hose for 1986 American Motors Eagle
PartNumber: 28412Product Specifications- Notes: w/AC; Cut to Length, 32";W/O AC; Cut to Length, 42";W/AC; Cut to Length, 8"
- Centerline Length: 50 ft
- End 1 Inside Diameter: 19 mm
- End 2 Inside Diameter: 19 mm
- Material: EPDM
- OE Part Number: 49693
- UPC: 072053066326
- Weight Per Length: 13.20 lbs./Carton
- Working Pressure: 50 PSI
- Part Description: 1986 American Motors Eagle Safety Stripe Hvac Heater Hose
Vehicle Fitment- 1986 American Motors Eagle | All Trims | 6 Cyl 4.2L
$67.45
Four Seasons® Remanufactured A C Compressor With Clutch for 1986 American Motors Eagle
PartNumber: 57580Product Specifications- Notes: w/ SD508 Compressor; Reman w/ Clutch; Factory Air
- Clutch Included: Yes
- Clutch Maximum Diameter: 4.750
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 100
- Compressor Head Type: C/CE
- Compressor Type: SD508
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.250
- Mounting Hardware: Not Included
- Mounting Type: Ear Mount
- New Compressor w/o Clutch: [58046]
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24111] / Mini York Teflon Seal O-Ring
- O-Ring A Quantity: 2
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 120.650
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 4.750
- Pulley Outside Diameter: 4.750
- Pulley Ridge Diameter: 4.750
- Refrigerant Type: R134a
- Reman w/o Clutch: [57046]
- Suction Port Type: O-Ring
- Terminal Type: Bullet
- UPC: 096361575806
- Part Description: 1986 American Motors Eagle Remanufactured A C Compressor With Clutch
Vehicle Fitment- 1986 American Motors Eagle | All Trims | All Engines
$160.18
Gates® Safety Stripe Hvac Heater Hose for 1986 American Motors Eagle
PartNumber: 28411Product Specifications- Notes: W/AC; Cut to Length, 8";Cut to Length, 12";w/o AC; Cut to Length, 32";w/AC; Cut to Length, 24"
- Centerline Length: 50 ft
- End 1 Inside Diameter: .625 in
- End 2 Inside Diameter: .625 in
- Material: EPDM
- OE Part Number: 8990
- UPC: 072053066319
- Weight Per Length: 11.70 lbs./Carton
- Working Pressure: 60 PSI
- Part Description: 1986 American Motors Eagle Safety Stripe Hvac Heater Hose
Vehicle Fitment- 1986 American Motors Eagle | All Trims | 6 Cyl 4.2L
$55.34
Four Seasons® A C Compressor With Clutch for 1986 American Motors Eagle
PartNumber: 58580Product Specifications- Notes: w/ SD508 Compressor; New w/ Clutch; Factory Air
- Clutch Included: Yes
- Clutch Maximum Diameter: 4.750
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Comp Head Prt Config: Top-Vert-Tube-O
- Compatible Refrigerant Oil Type: PAG 100
- Compressor Head Type: C/CE
- Compressor Type: SD508
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.250
- Mount Distance MM: 31.750
- Mounting Hardware: Not Included
- Mounting Type: Ear Mount
- New or Reman: New
- O-Ring A Number/Desc: [24111] / Mini York Teflon Seal O-Ring
- O-Ring A Quantity: 2
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- O-Ring C Number/Desc: Not Required
- O-Ring C Quantity: NR
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 120.650
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 4.750
- Pulley Outside Diameter: 4.750
- Pulley Ridge Diameter: 4.750
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Bullet
- UPC: 096361585805
- Part Description: 1986 American Motors Eagle A C Compressor With Clutch
Vehicle Fitment- 1986 American Motors Eagle | All Trims | All Engines
$196.46
Four Seasons® A C Compressor Without Clutch for 1986 American Motors Eagle
PartNumber: 58046Product Specifications- Notes: w/ SD508 Compressor; New w/o Clutch; Factory Air
- Clutch Included: No
- Coil Clock Position: Non Clutch
- Coil Voltage: NR
- Compatible Refrigerant Oil Type: PAG 100
- Compressor Type: SD508
- Discharge Port Type: O-Ring
- Mounting Hardware: Not Included
- Mounting Type: Ear Mount
- New or Reman: New
- O-Ring A Number/Desc: [24111] / Mini York Teflon Seal O-Ring
- O-Ring A Quantity: 2
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- Pulley Belt Type: Non-Clutch
- Pulley Groove Quantity: NR
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- UPC: 096361580466
- Part Description: 1986 American Motors Eagle A C Compressor Without Clutch
Vehicle Fitment- 1986 American Motors Eagle | All Trims | All Engines
$143.81
Four Seasons® Hvac Blower Motor Without Wheel for 1986 American Motors Eagle
PartNumber: 35593Product Specifications- Notes: w/o Wheel; Dealer Air; w/ AC
- Cage Wheel Included: w/o Wheel
- Connector Gender: Female
- Connector qty: 2
- Flanged End: No
- Material: Metal
- Motor Diameter: 3.000
- Motor Length: 4.125
- Mount Type: OE Mount
- New or Reman: New
- Number of Terminals: 6
- O.E. Replacement: Yes
- Rotation: CW/CCW
- Shaft Diameter: 0.3125
- Shaft Length: 1.875
- Shaft Shape: D-Shaped
- Shaft Type: D-Shaped
- Stud Distance: 2.3125
- Style: Single Shaft
- Terminal Type: 6 Lead Wires w/ Connectors; w/ 3 Speed Motor; 6 Lead Wires, w/Connectors - 3 Speed Motor
- UPC: 096361355934
- Vented: Vented
- Voltage: 12
- Wheel Dia. IN: Yes
- Part Description: 1986 American Motors Eagle Hvac Blower Motor Without Wheel
Vehicle Fitment- 1986 American Motors Eagle | All Trims | All Engines
$79.21
Four Seasons® A C Receiver Drier for 1986 American Motors Eagle
PartNumber: 33351Product Specifications- Notes: Factory Air
- Body Diameter: 2.500
- Body Length: 14.000
- Bracket: w/ Bracket
- Connector B Type: Male Insert O-Ring
- Connector Type: Female O-Ring
- Desiccant: Yes
- Desiccant Replaceable: Not Replaceable
- Dia. MM: 63.500
- Fuse Plug: Yes
- Gasket / Seals: Included
- In Line Filter Material: Desiccant
- In Line Filter Outlet Fitting Type: Male
- Inlet Filter Fitting Thread Diameter: 0.625
- Inlet Filter Fitting Type: Male
- Inlet Fitting Diameter: 0.375
- Inlet Fitting Type: Female O-Ring
- Inlet Fraction: 3/8
- Inlet IN: 0.375
- Inlet MM: 9.525
- Length MM: 355.600
- Material: Steel
- Meets / Exceeds OEM: Yes
- Moisture Indicator Window: No
- Mounting Bracket Included: Hardware not included
- New or Reman: New
- O-Ring A Number/Desc: [24608] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24606] / Green O-Ring
- O-Ring B Quantity: 1
- O-Ring C Number/Desc: [24606] / Green O-Ring
- O-Ring C Quantity: 1
- O-Ring D Number/Desc: [24608] / Green O-Ring
- O-Ring D Quantity: 2
- Outlet Fitting Type: Male Insert O-Ring
- Outlet Fraction: 5/16
- Outlet IN: 0.3125
- Outlet MM: 7.9375
- Overall Depth IN: 10.25
- P. R. V.: No
- Service Port: w/o Service Port
- Sight Glass: No
- Stud: No
- Style: Steel Filter Drier
- Switch Port: w/ Switch Port
- UPC: 096361333512
- Part Description: 1986 American Motors Eagle A C Receiver Drier
Vehicle Fitment- 1986 American Motors Eagle | All Trims | All Engines
$54.13
Four Seasons® Hvac Blower Motor Without Wheel for 1986 American Motors Eagle
PartNumber: 35508Product Specifications- Notes: w/o Wheel; Factory Air
- Cage Wheel Included: w/o Wheel
- Connector Gender: None
- Connector qty: None
- Flanged End: No
- Material: Metal
- Motor Diameter: 3.000
- Motor Length: 4.3125
- Mount Type: OE Mount
- New or Reman: New
- Number of Terminals: Connector Not Included
- O.E. Replacement: Yes
- Rotation: CW/CCW
- Shaft Diameter: 0.3125
- Shaft Length: 2.000
- Shaft Shape: D-Shaped
- Shaft Type: D-Shaped
- Stud Distance: 2.3125
- Style: Single Shaft
- Terminal Type: 2 Lead Wires
- UPC: 096361355088
- Vented: Non Vented
- Voltage: 12
- Wheel Dia. IN: Yes
- Part Description: 1986 American Motors Eagle Hvac Blower Motor Without Wheel
Vehicle Fitment- 1986 American Motors Eagle | All Trims | All Engines
$33.55
Four Seasons® A C Expansion Valve for 1986 American Motors Eagle
PartNumber: 38608Product Specifications- Notes: Dealer Air
- Color: Brass
- Refrigerant Type: R134A
- UPC: 096361386082
- Part Description: 1986 American Motors Eagle A C Expansion Valve
Vehicle Fitment- 1986 American Motors Eagle | All Trims | All Engines
$16.15

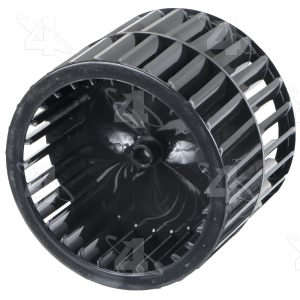

Four Seasons® Hvac Blower Motor Wheel for 1986 American Motors Eagle
PartNumber: 35609Product Specifications- Notes: Factory Air
- Attachment Type: Retainer Clip
- Hub Offset: 0.500
- Hub Offset MM: 12.700
- Material: Plastic
- Motor Dia. IN: 5.250
- Motor Dia. MM: 133.350
- New or Reman: New
- O.E. Replacement: Yes
- Offset: 0.500
- Rotation: CCW
- Set Screw Attached: No
- Shaft Diameter: 0.3125
- Shaft Length IN: 2.875
- Shaft Length MM: 73.025
- Shaft Shape: D-Shaped
- Style: Reverse Rotation Blower Motor Wheel
- UPC: 096361356092
- Wheel: Yes
- Wheel Dia. MM: 133.350
- Wheel Diameter: 5.250
- Wheel Height MM: 73.025
- Wheel Width: 2.875
- Part Description: 1986 American Motors Eagle Hvac Blower Motor Wheel
Vehicle Fitment- 1986 American Motors Eagle | All Trims | All Engines
$12.63
Four Seasons® A C Clutch Control Relay Harness Connector for 1986 American Motors Eagle
PartNumber: 37210Product Specifications- Notes: Blower Motor Relay Connector; Harness Connector-Repair; w/ Bracket;Blower Motor Relay Connector; Harness Connector-Repair; w/o Bracket
- Connector Pin Qty: 5
- Connector Shape: Other design
- Gender: Female
- Printed Foot Note: Harness Connector for Bosch Relays 4 or 5
- Style: Harness Connector
- Terminal Gender: Female
- Terminal Quantity: 5
- UPC: 096361372108
- Wire Length IN: 6.000
- Part Description: 1986 American Motors Eagle A C Clutch Control Relay Harness Connector
Vehicle Fitment- 1986 American Motors Eagle | All Trims | All Engines
$10.29
Four Seasons® A C Compressor Cut Out Switch Harness Connector for 1986 American Motors Eagle
PartNumber: 37219Product Specifications- Notes: AC System Mounted Low Pressure Cut-Out Switch Connector; Harness Connector-Repair
- Connector Pin Qty: 2
- Connector Shape: Round
- Connector Type: Pin
- Gender: Female
- Printed Foot Note: Pressure Switch Harness Connector
- Style: Harness Connector
- Terminal Gender: Female
- Terminal Quantity: 2
- UPC: 096361372191
- Part Description: 1986 American Motors Eagle A C Compressor Cut Out Switch Harness Connector
Vehicle Fitment- 1986 American Motors Eagle | All Trims | All Engines
$6.63
Four Seasons® Hvac Pressure Switch for 1986 American Motors Eagle
PartNumber: 35758Product Specifications- Notes: Low Pressure AC System Mounted;Low Pressure AC System Mounted Cut-Out Switch
- Color: Black; Purple
- Comp Open/Closed: Open
- Connector Gender: Male
- Connector Shape: Open
- Fitting Thread Size: 3/8 in. x 24
- Harness Connector: [37219] / Harness Connector
- Item Included A Desc: 24606
- Item Included A Qty.: 1
- Material: Steel
- Meets / Exceeds OEM: YES
- Mnt Sys Loc: System mount; System Mounted
- Number of Terminals: 2
- Operate Psi Low Off: 30
- Operate Psi Low On: 31
- Style: Pressure
- UPC: 096361357587
- Weather Pack: No; Yes
- Part Description: 1986 American Motors Eagle Hvac Pressure Switch
Vehicle Fitment- 1986 American Motors Eagle | All Trims | All Engines
$6.20
Four Seasons® Hvac Blower Control Switch for 1986 American Motors Eagle
PartNumber: 35702Product Specifications- Notes: Blower Motor Switch; Dealer Air; Rotary
- Connector Gender: Male
- Connector Shape: Rectangle
- Meets / Exceeds OEM: Yes
- Number of Terminals: 5
- UPC: 096361357020
- Part Description: 1986 American Motors Eagle Hvac Blower Control Switch
Vehicle Fitment- 1986 American Motors Eagle | All Trims | All Engines
$6.91
Gates® Hvac Control Duct Hose for 1986 American Motors Eagle
PartNumber: 28095Product Specifications- Centerline Length (in): 18"
- Inside Diameter 1 (in): 2"
- UPC: 072053028256
- Part Description: 1986 American Motors Eagle Hvac Control Duct Hose
Vehicle Fitment- 1986 American Motors Eagle | All Trims | 6 Cyl 4.2L
National® A/C Compressor Clutch Ball Bearing for 1986 American Motors Eagle
PartNumber: 5001-KFFProduct Specifications- Notes: w/Sanden SD-508 AC Compressor
- Part Description: 1986 American Motors Eagle A/C Compressor Clutch Ball Bearing
Vehicle Fitment- 1986 American Motors Eagle | All Trims | All Engines
Denso® A/C Compressor for 1986 American Motors Eagle
PartNumber: 471-7043Product Specifications- Notes: OE Recommended Replacement part.
- UPC: 042511108554
- Part Description: 1986 American Motors Eagle A/C Compressor
Vehicle Fitment- 1986 American Motors Eagle | All Trims | 6 Cyl 4.2L
Four Seasons® HVAC Blower Motor Wheel for 1986 American Motors Eagle
PartNumber: 35529Product Specifications- Notes: Dealer Air; w/ AC
- Attachment Type: Retainer Clip
- Hub Offset: 1.125
- Hub Offset MM: 28.575
- Material: Plastic
- Motor Dia. IN: 4.4375
- Motor Dia. MM: 112.725
- New or Reman: New
- O.E. Replacement: Yes
- Offset: 1.125
- Rotation: CCW
- Set Screw Attached: No
- Shaft Diameter: 0.3125
- Shaft Length IN: 3.375
- Shaft Length MM: 85.725
- Shaft Shape: Round
- Style: Reverse Rotation Blower Motor Wheel
- UPC: 096361355293
- Wheel: Yes
- Wheel Dia. MM: 112.725
- Wheel Diameter: 4.4375
- Wheel Height MM: 85.725
- Wheel Width: 3.375
- Part Description: 1986 American Motors Eagle HVAC Blower Motor Wheel
Vehicle Fitment- 1986 American Motors Eagle | All Trims | All Engines
