Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58580 |

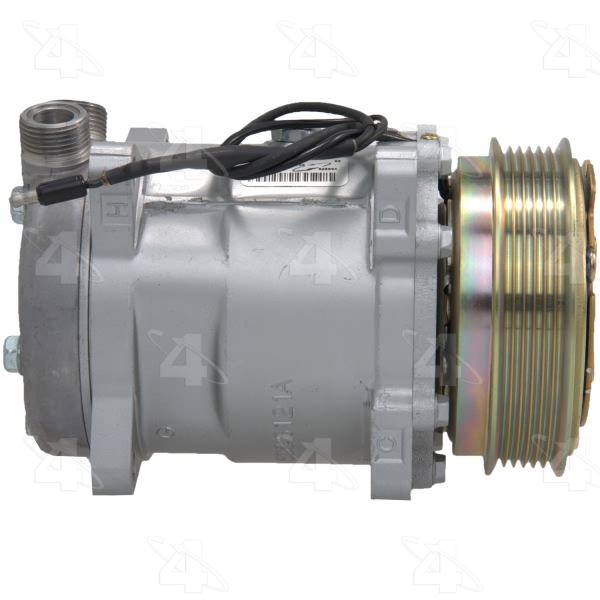

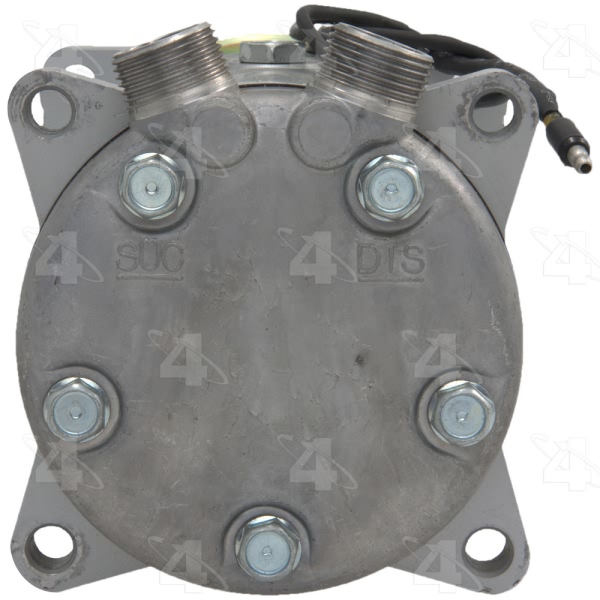

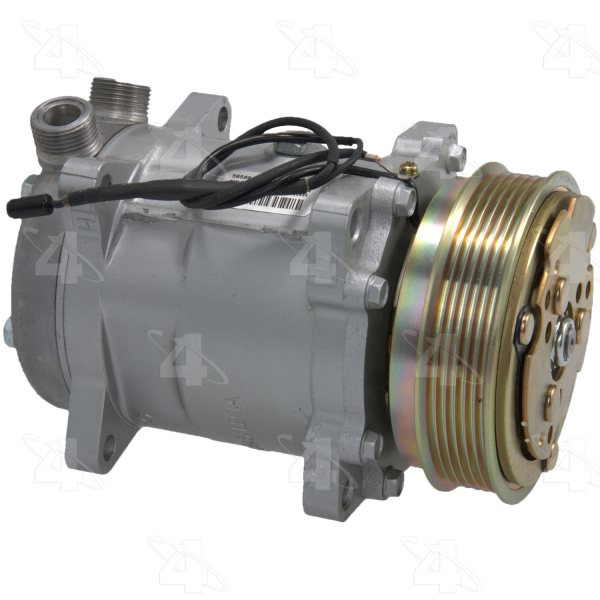

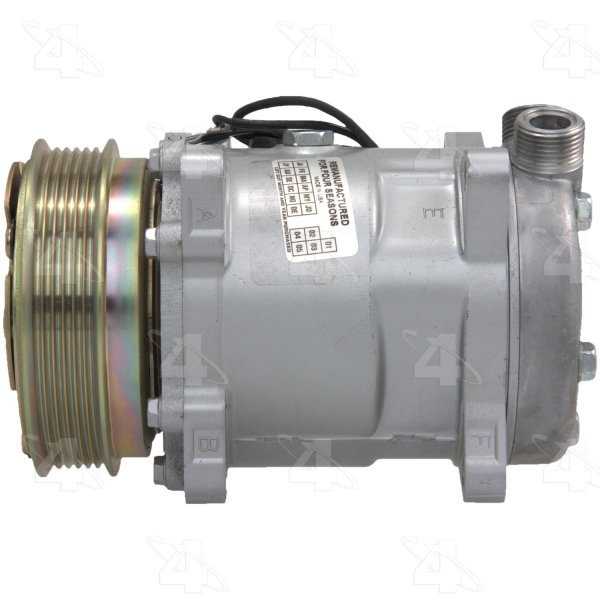

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.750 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Comp Head Prt Config | Top-Vert-Tube-O |
Compatible Refrigerant Oil Type | PAG 100 |
Compressor Head Type | C/CE |
Compressor Type | SD508 |

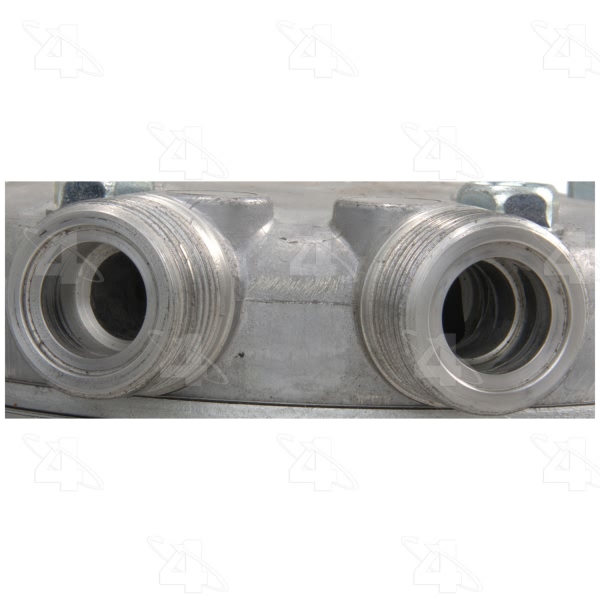

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.250 |
Mount Distance MM | 31.750 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | New |
O-Ring A Number/Desc | [24111] / Mini York Teflon Seal O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | Not Required |
O-Ring B Quantity | NR |
O-Ring C Number/Desc | Not Required |
O-Ring C Quantity | NR |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 120.650 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 4.750 |
Pulley Outside Diameter | 4.750 |
Pulley Ridge Diameter | 4.750 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Terminal Type | Bullet |
UPC | 096361585805 |
Year Make Model | Trim | Engine |
---|---|---|
1983 American Motors Eagle | All Trims | 6 Cyl 4.2L |
1984-1988 American Motors Eagle | All Trims | All Engines |
1984-1986 Jeep CJ7 | All Trims | 6 Cyl 4.2L |
1982-1983 Jeep Cherokee | All Trims | 6 Cyl 4.2L |
1984-1985 Jeep Cherokee | All Trims | 4 Cyl 2.5L |
1985-1986 Jeep Cherokee | All Trims | 6 Cyl 2.8L |
1987-1990 Jeep Cherokee | All Trims | 4 Cyl 2.5L |
1987-1990 Jeep Cherokee | All Trims | 6 Cyl 4.0L |
1986 Jeep Comanche | All Trims | 6 Cyl 2.8L |
1987-1990 Jeep Comanche | All Trims | 4 Cyl 2.5L |
