Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 33351 |

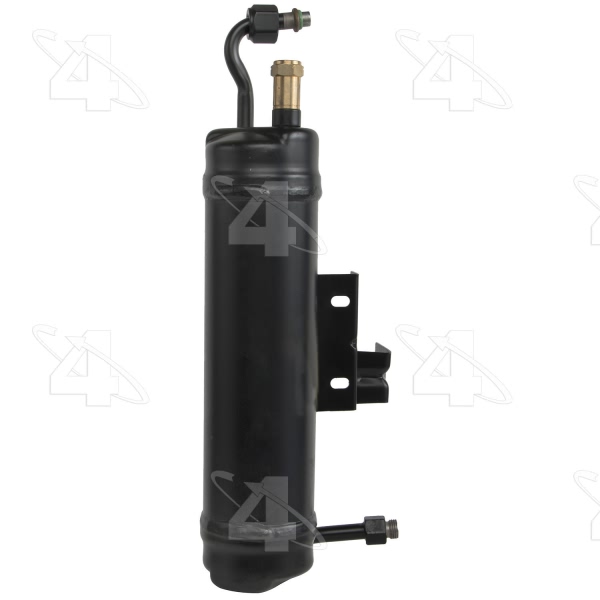

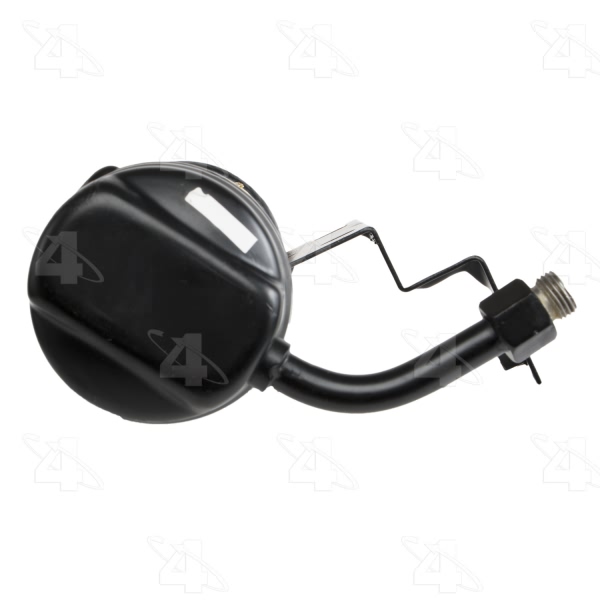

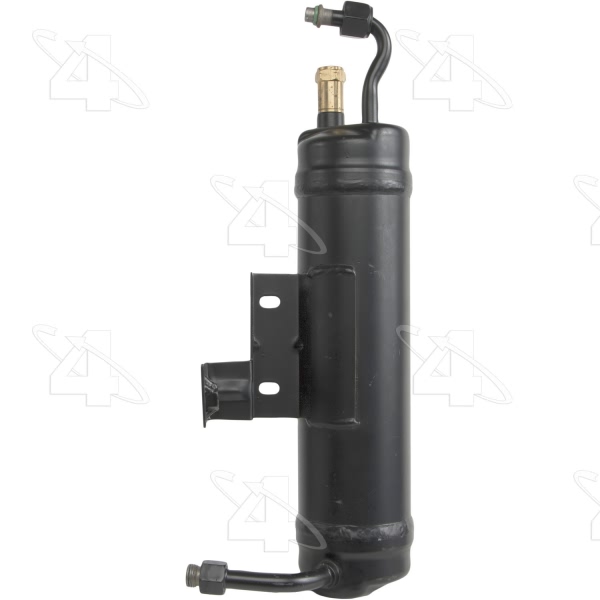

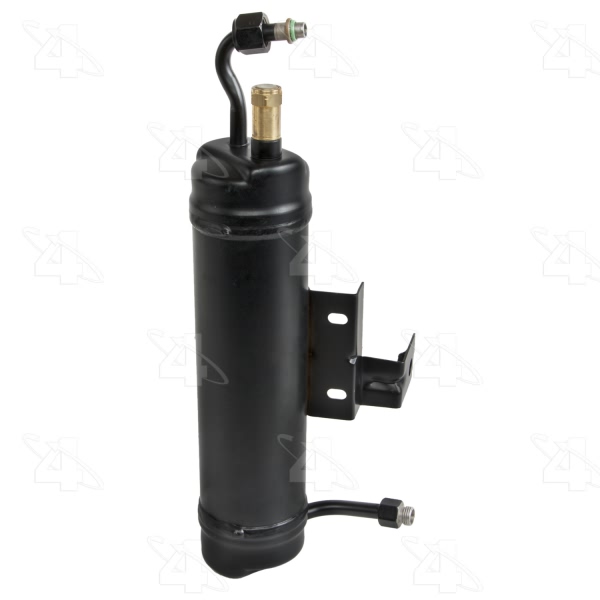

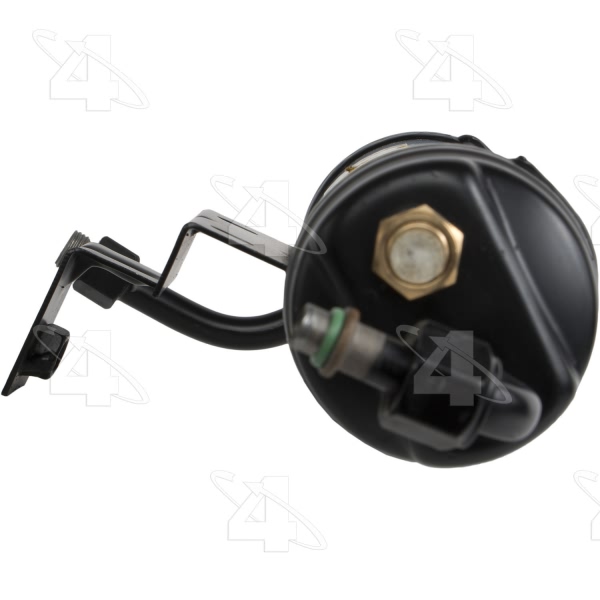

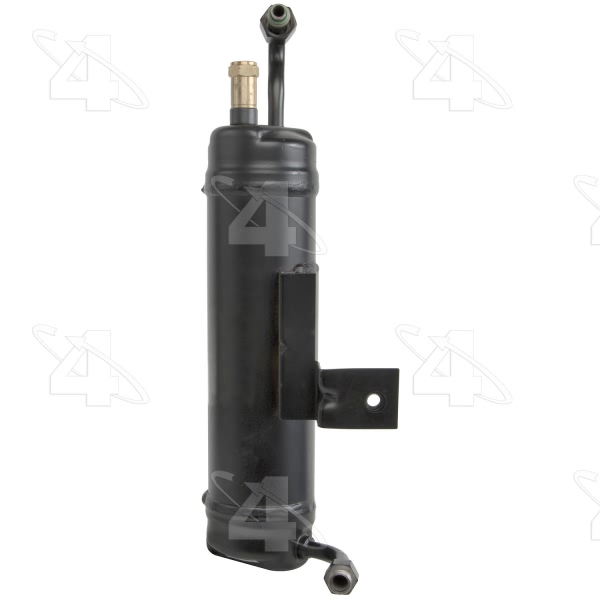

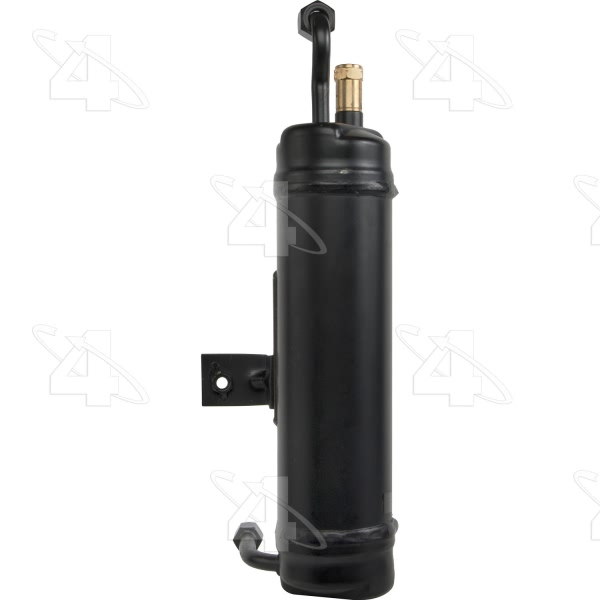

Part Description | A C Receiver Drier |
Body Diameter | 2.500 |
Body Length | 14.000 |
Bracket | w/ Bracket |
Connector B Type | Male Insert O-Ring |
Connector Type | Female O-Ring |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Dia. MM | 63.500 |
Fuse Plug | Yes |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Male |
Inlet Filter Fitting Thread Diameter | 0.625 |
Inlet Filter Fitting Type | Male |
Inlet Fitting Diameter | 0.375 |
Inlet Fitting Type | Female O-Ring |
Inlet Fraction | 3/8 |
Inlet IN | 0.375 |
Inlet MM | 9.525 |
Length MM | 355.600 |
Material | Steel |
Meets / Exceeds OEM | Yes |
Moisture Indicator Window | No |
Mounting Bracket Included | Hardware not included |
New or Reman | New |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24606] / Green O-Ring |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24606] / Green O-Ring |
O-Ring C Quantity | 1 |
O-Ring D Number/Desc | [24608] / Green O-Ring |
O-Ring D Quantity | 2 |

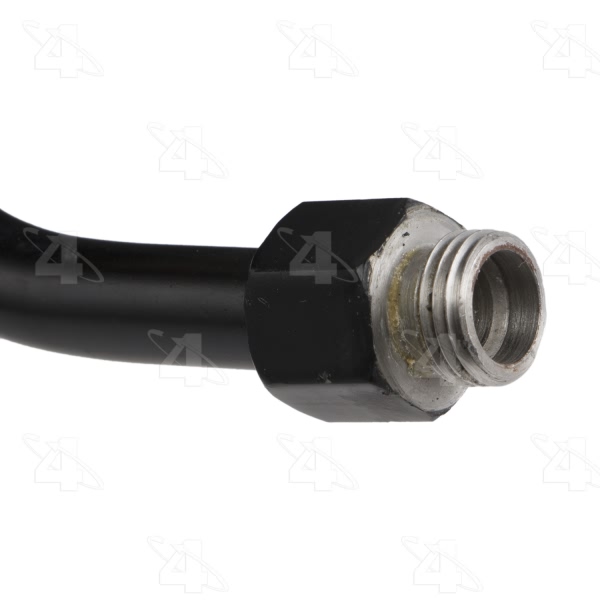

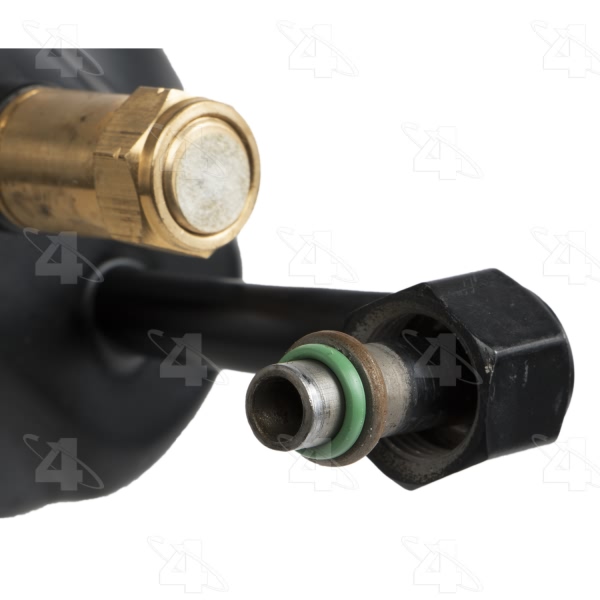

Outlet Fitting Type | Male Insert O-Ring |
Outlet Fraction | 5/16 |
Outlet IN | 0.3125 |
Outlet MM | 7.9375 |
Overall Depth IN | 10.25 |
P. R. V. | No |
Service Port | w/o Service Port |
Sight Glass | No |
Stud | No |
Style | Steel Filter Drier |
Switch Port | w/ Switch Port |
UPC | 096361333512 |
Year Make Model | Trim | Engine |
---|---|---|
1978-1980 American Motors AMX | All Trims | All Engines |
1978-1983 American Motors Concord | All Trims | All Engines |
1980-1988 American Motors Eagle | All Trims | All Engines |
1977-1978 American Motors Gremlin | All Trims | All Engines |
1979-1983 American Motors Spirit | All Trims | All Engines |
