Delphi® Fuel Pump Module Assembly for 2017 Ram 3500
PartNumber: FG1664Product Specifications- Notes: with Aft Axle Tank;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 10
- Flow Rating: 80 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Diesel
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 94.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 3
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 990.0
- Resistance Ohms Full: 50.0
- Strainer Included: Yes
- System Pressure: 20 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604266670
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2017 Ram 3500 Fuel Pump Module Assembly
Vehicle Fitment- 2017 Ram 3500 | Laramie | 6 Cyl 6.7L
- 2017 Ram 3500 | SLT | 6 Cyl 6.7L
- 2017 Ram 3500 | Tradesman | 6 Cyl 6.7L
$383.10
Delphi® Fuel Pump Module Assembly for 2017 Ram 3500
PartNumber: FG1663Product Specifications- Notes: with Midship Tank;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 10
- Flow Rating: 80 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Diesel
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 94.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 3
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 990.0
- Resistance Ohms Full: 50.0
- Strainer Included: Yes
- System Pressure: 20 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604266663
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2017 Ram 3500 Fuel Pump Module Assembly
Vehicle Fitment- 2017 Ram 3500 | Laramie | 6 Cyl 6.7L
- 2017 Ram 3500 | SLT | 6 Cyl 6.7L
- 2017 Ram 3500 | Tradesman | 6 Cyl 6.7L
$319.98
Delphi® Fuel Pump Module Assembly for 2017 Ram 3500
PartNumber: FG1432Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 10
- Flow Rating: 20 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 78.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 990.0
- Resistance Ohms Full: 50.0
- Strainer Included: Yes
- System Pressure: 58 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604239377
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2017 Ram 3500 Fuel Pump Module Assembly
Vehicle Fitment- 2017 Ram 3500 | All Trims | 8 Cyl 5.7L
- 2017 Ram 3500 | All Trims | 8 Cyl 6.4L
$245.37
Delphi® Diesel Fuel Pump Module Assembly for 2017 Ram 3500
PartNumber: FG1943Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Diesel
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Regulator Included: Yes
- Resistance Ohms Empty: 990.0
- Resistance Ohms Full: 50.0
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604270004
- Vapor Pressure Sensor: No
- Part Description: 2017 Ram 3500 Diesel Fuel Pump Module Assembly
Vehicle Fitment- 2017 Ram 3500 | Laramie | 6 Cyl 6.7L
- 2017 Ram 3500 | Laramie Longhorn | 6 Cyl 6.7L
- 2017 Ram 3500 | SLT | 6 Cyl 6.7L
- 2017 Ram 3500 | Big Horn | 6 Cyl 6.7L
- 2017 Ram 3500 | Tradesman | 6 Cyl 6.7L
- 2017 Ram 3500 | Limited | 6 Cyl 6.7L
- 2017 Ram 3500 | Lone Star | 6 Cyl 6.7L
$206.61
OEM (Genuine) 2017 Ram 3500 Fuel Pump Module/Level Unit
PartNumber: 5145571AA
Product Specifications- Notes: W/O Cng, 6.7 Liter
- Other Names: Fuel Pump, Fuel Pump Assembly
- Item Dimensions: 9.6 x 9.3 x 21.8 inches
- Item Weight: 3.20 Pounds
- Fitment Type: Direct Replacement
- Replaces: 5145625AA
- Part Description: 2017 Ram 3500 Fuel Pump Module/Level Unit
Vehicle Fitment- 2017 Ram 3500 | Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Limited Longhorn, Lone Star, SLT, ST, Tradesman | 6 Cyl 6.7 L DIESEL
$350.89 MSRP:$534.00You Save: $183.11 (35%)
Autobest® Fuel Pump Module Assembly for 2017 Ram 3500
PartNumber: F3279AProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,Cab & Chassis;Rear Tank
- Average Current Draw(A): 10
- Average Flow Rating(GPH): 68.7
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: FKM
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 20
- Minimum Pump Pressure (PSI): 10
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 9.37
- Product Length (in): 18.23
- Product Width (in): 12.87
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 990
- Resistance Ohms Full: 50
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845132796
- Voltage: 13.5V
- Weight (lbs): 3.04
- Part Description: 2017 Ram 3500 Fuel Pump Module Assembly
Vehicle Fitment- 2017 Ram 3500 | All Trims | 6 Cyl 6.7L
$123.79
Autobest® Fuel Pump Module Assembly for 2017 Ram 3500
PartNumber: F3288AProduct Specifications- Notes: Diesel, Except Cab and Chassis;Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,DIESEL
- Average Current Draw(A): 8.5
- Average Flow Rating(GPH): 54.2
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: FKM
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 20
- Minimum Pump Pressure (PSI): 10
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 5.98
- Product Length (in): 15.47
- Product Width (in): 10.43
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 990
- Resistance Ohms Full: 50
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845132888
- Voltage: 13.5V
- Weight (lbs): 2.58
- Part Description: 2017 Ram 3500 Fuel Pump Module Assembly
Vehicle Fitment- 2017 Ram 3500 | All Trims | 6 Cyl 6.7L
$114.24
Airtex® Fuel Pump Module Assembly for 2017 Ram 3500
PartNumber: E7277MProduct Specifications- Notes: Diesel, Exc Cab & Chassis; Incls Fuel Pump, Fuel Pressure Reg, Sending Unit, Float, Fuel Reservoir, Fuel Strainer & Tank Seal
- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 95
- Maximum Pressure Rate (psi): 20
- Minimum Free Flow Rate (gph): 85
- Minimum Pressure Rate (psi): 10
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: Quick Connect
- Package Contents: Pump & Kit
- Package Quantity: 1
- Warranty: Lifetime Limited Warranty
- Part Description: 2017 Ram 3500 Fuel Pump Module Assembly
Vehicle Fitment- 2017 Ram 3500 | All Trims | 6 Cyl 6.7L
OEM (Genuine) 2017 Ram 3500 Fuel Pump/Level Unit Module
PartNumber: 68237110AC
Product Specifications- Notes: W/O Cng, 5.7 Liter;W/O Cng, 6.4 Liter
- Other Names: Fuel Pump, Fuel Pump Assembly
- Item Dimensions: 22.0 x 9.8 x 9.6 inches
- Item Weight: 3.10 Pounds
- Fitment Type: Direct Replacement
- Part Description: 2017 Ram 3500 Fuel Pump/Level Unit Module
Vehicle Fitment- 2017 Ram 3500 | Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Limited Longhorn, Lone Star, SLT, Tradesman | 8 Cyl 5.7 L GAS, 8 Cyl 6.4 L GAS

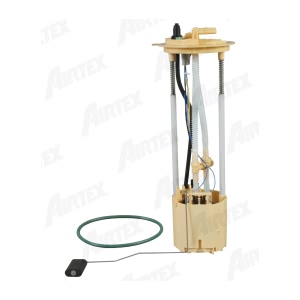

Airtex® Fuel Pump Module Assembly for 2017 Ram 3500
PartNumber: E7268MProduct Specifications- Notes: Rear Tank; Incls Fuel Pump, Sending Unit, Float, Fuel Reservoir, Fuel Strainer & Tank Seal
- Gasket Included: Y
- Inlet Count: 1
- Inlet Type: STRAINER
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 100
- Maximum Pressure Rate (psi): 20
- Minimum Free Flow Rate (gph): 90
- Minimum Pressure Rate (psi): 10
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- UPC: 080044054382
- Part Description: 2017 Ram 3500 Fuel Pump Module Assembly
Vehicle Fitment- 2017 Ram 3500 | All Trims | 6 Cyl 6.7L
Airtex® In-Tank Fuel Pump Module Assembly for 2017 Ram 3500
PartNumber: E7275MProduct Specifications- Gasket or Seal Included: Yes
- Inlet Count: 1
- Inlet Type: STRAINER
- Internal or External: Internal
- Item Grade: STANDARD REPLACEMENT
- Maximum Flow Rating: 80
- Maximum Pressure (psi): 65
- Minimum Free Flow Rate: 70
- Minimum Pressure Reading: 55
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- UPC: 080044060345
- Part Description: 2017 Ram 3500 In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 2017 Ram 3500 | All Trims | 8 Cyl 5.7L
- 2017 Ram 3500 | All Trims | 8 Cyl 6.4L
