Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1432 |

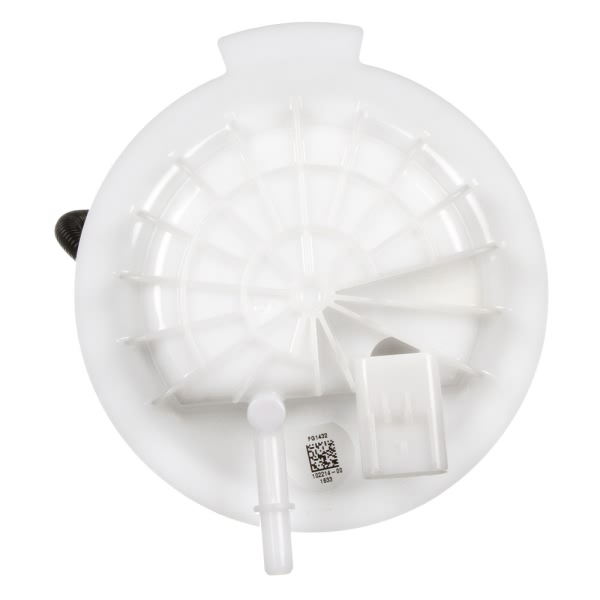

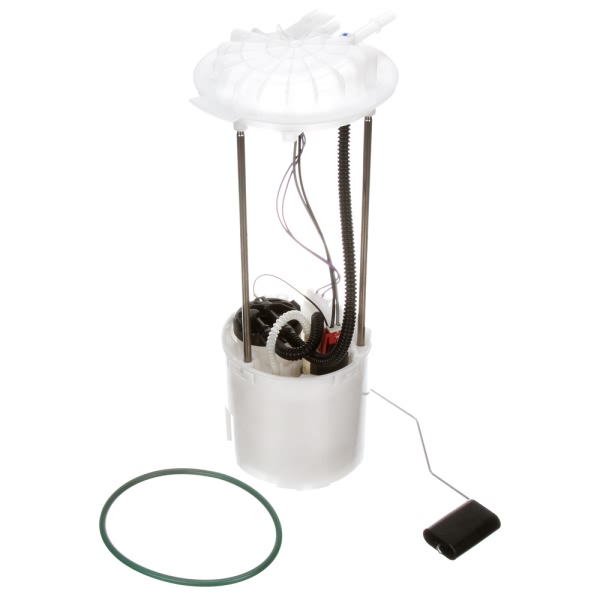

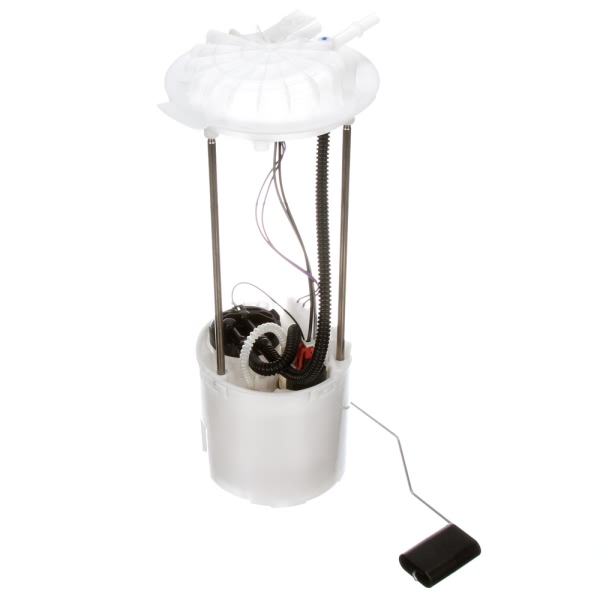

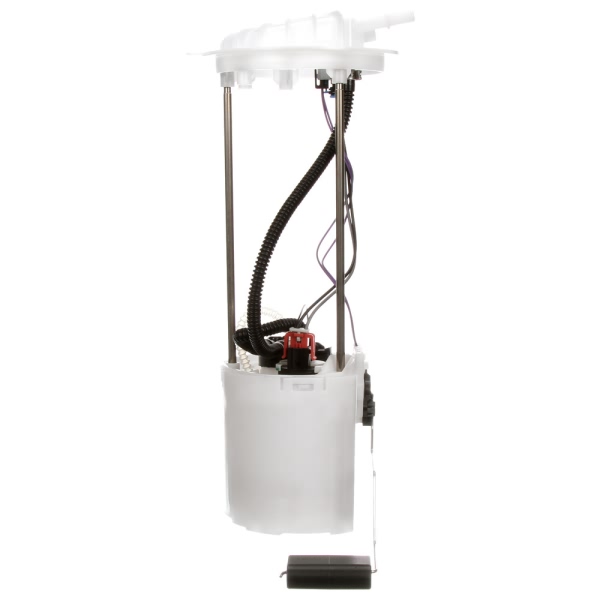

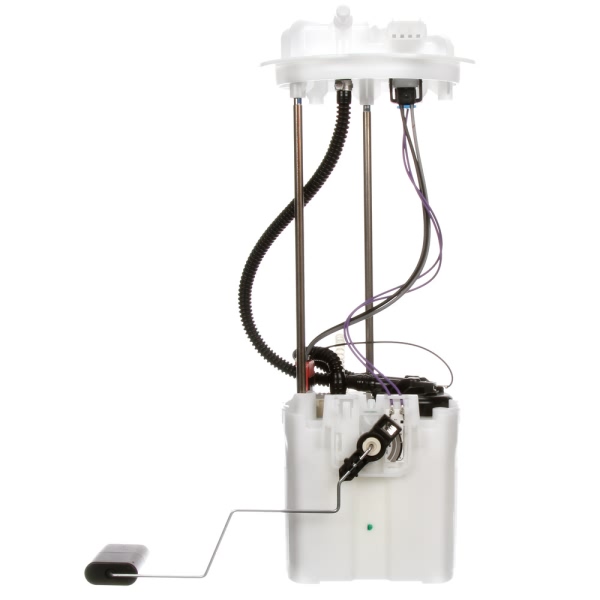

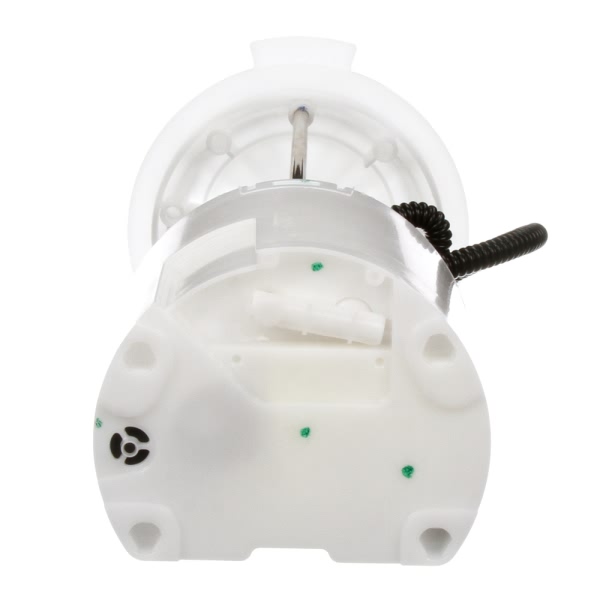

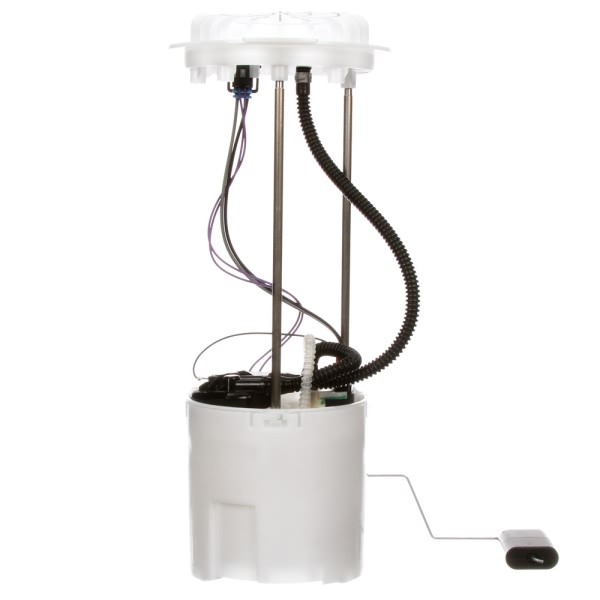

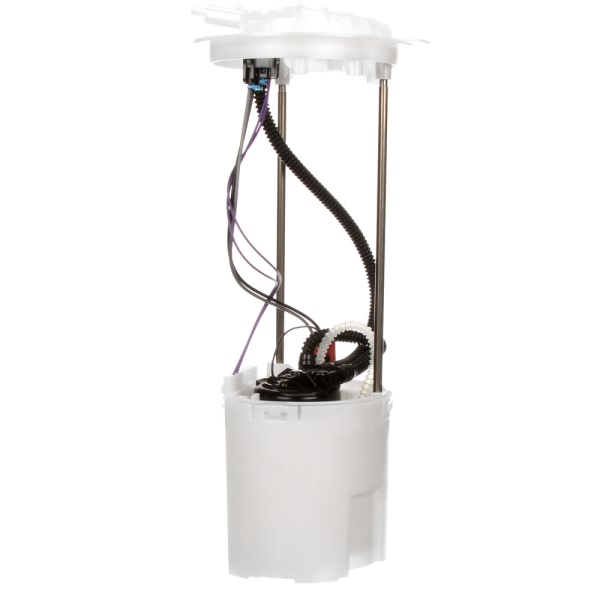

Part Description | Fuel Pump Module Assembly |
Current Draw | 10 |
Flow Rating | 20 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Maximum Pressure | 78.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 1 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 990.0 |
Resistance Ohms Full | 50.0 |
Strainer Included | Yes |
System Pressure | 58 psi |
Terminal Gender | Male |

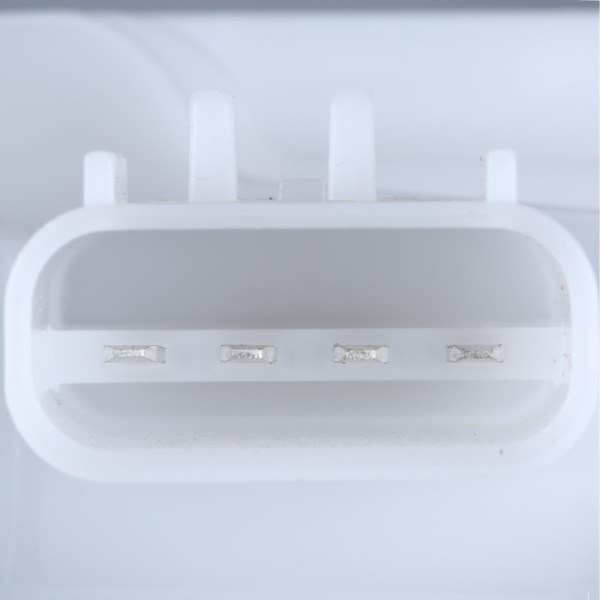

Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604239377 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2012 Ram 1500 | Tradesman HD | 8 Cyl 5.7L |
2011-2018 Ram 2500 | All Trims | 8 Cyl 5.7L |
2014-2017 Ram 2500 | All Trims | 8 Cyl 6.4L |
2018 Ram 2500 | SLT | 8 Cyl 6.4L |
2018-2019 Ram 2500 | Big Horn | 8 Cyl 6.4L |
2018-2019 Ram 2500 | Laramie | 8 Cyl 6.4L |
2018-2019 Ram 2500 | Laramie Longhorn | 8 Cyl 6.4L |
2018-2019 Ram 2500 | Limited | 8 Cyl 6.4L |
2018-2019 Ram 2500 | Power Wagon | 8 Cyl 6.4L |
2018-2019 Ram 2500 | Tradesman | 8 Cyl 6.4L |
