Notes: with California Emission System;with Midship Tank;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 6
Flow Rating: 30 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 88.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 15.0
Resistance Ohms Full: 160.0
Strainer Included: Yes
System Pressure: 44 psi
Terminal Gender: Male
Terminal Quantity: 7
Terminal Type: Pin
UPC: 689604120507
Vapor Pressure Sensor: No
Voltage: 12.0 VDC
Part Description: 2004 Ford F-250 Super Duty Fuel Pump Module Assembly
More Info
Vehicle Fitment
2004 Ford F-250 Super Duty | All Trims | 10 Cyl 6.8L
2004 Ford F-250 Super Duty | All Trims | 8 Cyl 5.4L
Notes: with California Emission System;with Midship Tank;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 10
Flow Rating: 30 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 109.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 15.0
Resistance Ohms Full: 160.0
Strainer Included: Yes
System Pressure: 44 psi
Terminal Gender: Male
Terminal Quantity: 7
Terminal Type: Pin
UPC: 689604120538
Vapor Pressure Sensor: No
Voltage: 12.0 VDC
Part Description: 2004 Ford F-250 Super Duty Fuel Pump Module Assembly
More Info
Vehicle Fitment
2004 Ford F-250 Super Duty | All Trims | 10 Cyl 6.8L
2004 Ford F-250 Super Duty | All Trims | 8 Cyl 5.4L
Notes: with Aft Axle Tank;without California Emission System;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 6
Flow Rating: 29 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Maximum Pressure: 80.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 3
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 15.0
Resistance Ohms Full: 160.0
Strainer Included: Yes
System Pressure: 44 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Pin
UPC: 689604212066
Vapor Pressure Sensor: No
Voltage: 12.0 VDC
Part Description: 2004 Ford F-250 Super Duty Fuel Pump Module Assembly
More Info
Vehicle Fitment
2004 Ford F-250 Super Duty | All Trims | 10 Cyl 6.8L
2004 Ford F-250 Super Duty | All Trims | 8 Cyl 5.4L
Notes: without California Emission System;with Midship Tank;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 6
Flow Rating: 32 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 100.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 15.0
Resistance Ohms Full: 160.0
Strainer Included: Yes
System Pressure: 44 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Pin
UPC: 689604212073
Vapor Pressure Sensor: No
Voltage: 12.0 VDC
Part Description: 2004 Ford F-250 Super Duty Fuel Pump Module Assembly
More Info
Vehicle Fitment
2004 Ford F-250 Super Duty | All Trims | 10 Cyl 6.8L
Part Description: 2004 Ford F-250 Super Duty Fuel Pump
More Info
Vehicle Fitment
2004 Ford F-250 Super Duty | Harley-Davidson Edition, King Ranch, Lariat, XL, XLT | 10 Cyl 6.8 L GAS, 8 Cyl 5.4 L GAS, 8 Cyl 6.0 L DIESEL, 8 Cyl 7.3 L DIESEL
Notes: with Midship Tank;without California Emission System;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 6
Flow Rating: 33 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 102.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 15.0
Resistance Ohms Full: 160.0
Strainer Included: Yes
System Pressure: 44 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Pin
UPC: 689604212080
Vapor Pressure Sensor: No
Voltage: 12.0 VDC
Part Description: 2004 Ford F-250 Super Duty Fuel Pump Module Assembly
More Info
Vehicle Fitment
2004 Ford F-250 Super Duty | All Trims | 10 Cyl 6.8L
2004 Ford F-250 Super Duty | All Trims | 8 Cyl 5.4L
Notes: with Midship Tank;Used to Service Modules With Ford OEM Module Style Connector;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 7
Flow Rating: 36 gph
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 85.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Type: Hose
Pump Type: Electric
Strainer Included: Yes
System Pressure: 44 psi
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Blade
UPC: 689604215241
Voltage: 12.0 VDC
Wiring Harness Included: No

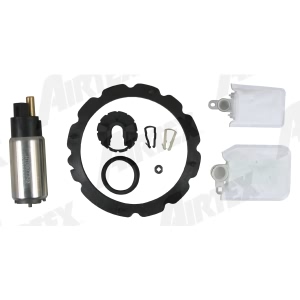

Part Description: 2004 Ford F-250 Super Duty Fuel Pump And Strainer Set
More Info
Vehicle Fitment
2004 Ford F-250 Super Duty | All Trims | 10 Cyl 6.8L
2004 Ford F-250 Super Duty | All Trims | 8 Cyl 5.4L
Notes: with Aft Axle Tank;Used to Service Modules With Ford OEM Module Style Connector;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 6
Flow Rating: 38 gph
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 103.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Type: Hose Bead
Pump Type: Electric
Strainer Included: Yes
System Pressure: 45 psi
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Pin
UPC: 689604202463
Voltage: 13.5 VDC
Wiring Harness Included: Yes
Part Description: 2004 Ford F-250 Super Duty Fuel Pump And Strainer Set
More Info
Vehicle Fitment
2004 Ford F-250 Super Duty | All Trims | 10 Cyl 6.8L
2004 Ford F-250 Super Duty | All Trims | 8 Cyl 5.4L
Part Description: 2004 Ford F-250 Super Duty Fuel Pump
More Info
Vehicle Fitment
2004 Ford F-250 Super Duty | Harley-Davidson Edition, King Ranch, Lariat, XL, XLT | 10 Cyl 6.8 L GAS, 8 Cyl 5.4 L GAS, 8 Cyl 6.0 L DIESEL, 8 Cyl 7.3 L DIESEL
