Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F1351 |

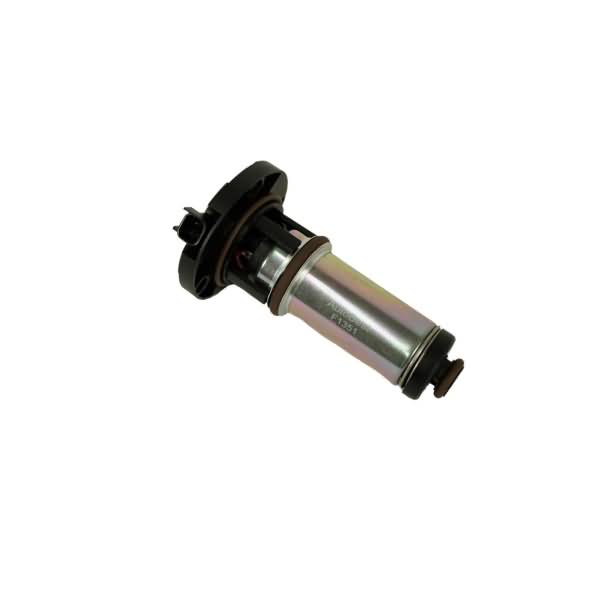

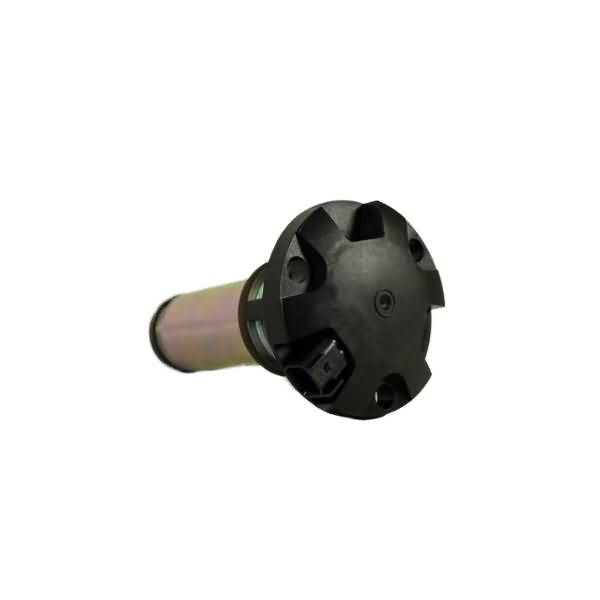

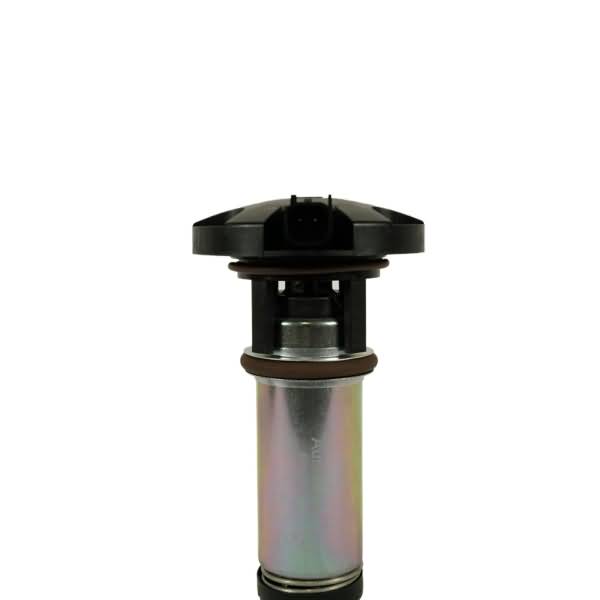

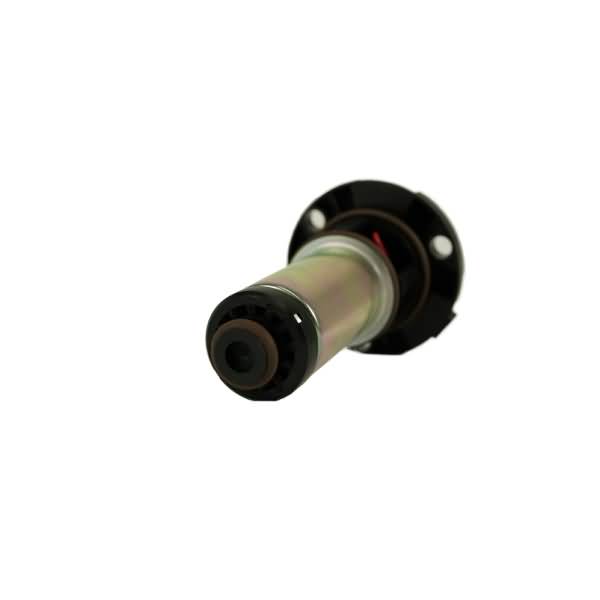

Part Description | In Tank Electric Fuel Pump |
Average Current Draw(A) | 7 |
Average Flow Rating(GPH) | 140 |
Country of Orign | China |
Fuel Type | Rollervane |
Gasket or Seal Included | Yes |
Gasket Or Seal Material | FKM |
In Tank or External | In Tank |
Inlet Type | Strainer |
Installation Warnings | No |
Internal or External | External |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 55.4 |
Maximum Pump Pressure (PSI) | 101.5 |
Minimum Free Flow (GPH) | 47.5 |
Minimum Pump Pressure (PSI) | 58 |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | / |
Outlet Type | No External Fittings |
Product Height (in) | 3.29 |
Product Length (in) | 6.14 |
Product Width (in) | 3.29 |
Pump Type | Rollervane |
Regulator Included | No |
Strainer Included | No |
Terminal Gender | Male |
Terminal Quantity | 2 |
Terminal Type | PIN |
UPC | 00072845113511 |
Voltage | 12V |
Weight (lbs) | 1.39 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2004-2005 Ford E-350 Club Wagon | All Trims | 8 Cyl 6.0L |
2004-2010 Ford E-350 Super Duty | All Trims | 8 Cyl 6.0L |
2003-2005 Ford Excursion | All Trims | 8 Cyl 6.0L |
2003-2007 Ford F-250 Super Duty | All Trims | 8 Cyl 6.0L |
2003-2007 Ford F-350 Super Duty | All Trims | 8 Cyl 6.0L |
