Notes: w/10S20H Compressor; Reman w/Clutch; May Req use of OE Connector; DeSlugger Recommended to Eliminate Compressor Damage on Vehicles w/Low Mount Compressor
Clutch Included: Yes
Clutch Maximum Diameter: 5.125
Coil Clock Position: Wire Lead
Coil Voltage: 12
Compatible Refrigerant Oil Type: PAG 46
Compressor Type: 10S20H
Discharge Port Type: O-Ring / Gasket
Distance From Clutch To Mounting Flange: 1.078125
Mount Distance MM: 27.178
Mounting Hardware: Not Included
Mounting Type: 2 Ear & 2 Boss
New or Reman: Remanufactured
O-Ring A Number/Desc: [24068] / Gasket
O-Ring A Quantity: 1
O-Ring B Number/Desc: [24069] / Gasket
O-Ring B Quantity: 1
Printed Foot Note: May Require use of OE Connector and OE Manifold; DeSlugger [36142] Recommended to Eliminate Compressor Damage on Vehicles with Low Mount Compressor
Pulley Belt Type: Serpentine
Pulley Diameter MM: 130.048
Pulley Groove Quantity: 6
Pulley Lip Diameter: 5.125
Pulley Outside Diameter: 5.125
Pulley Ridge Diameter: 5.125
Refrigerant Type: R134a
Suction Port Type: O-Ring / Gasket
Terminal Type: Pin
UPC: 096361773745

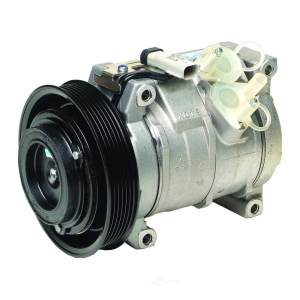

Part Description: 2002 Chrysler Voyager Remanufactured A C Compressor With Clutch
Notes: w/10S20H Compressor; New w/Clutch; May Req use of OE Connector; DeSlugger Recommended to Eliminate Compressor Damage on Vehicles w/Low Mount Compressor
Clutch Included: Yes
Clutch Maximum Diameter: 5.125
Coil Clock Position: Wire Lead
Coil Voltage: 12
Compatible Refrigerant Oil Type: PAG 46
Compressor Type: 10S20H
Discharge Port Type: O-Ring / Gasket
Distance From Clutch To Mounting Flange: 1.078125
Mount Distance MM: 27.178
Mounting Hardware: Not Included
Mounting Type: 2 Ear & 2 Boss
New or Reman: New
O-Ring A Number/Desc: [24068] / Gasket
O-Ring A Quantity: 1
O-Ring B Number/Desc: [24069] / Gasket
O-Ring B Quantity: 1
Printed Foot Note: May Require use of OE Connector and OE Manifold; DeSlugger [36142] Recommended to Eliminate Compressor Damage on Vehicles with Low Mount Compressor
Pulley Belt Type: Serpentine
Pulley Diameter MM: 130.048
Pulley Groove Quantity: 6
Pulley Lip Diameter: 5.125
Pulley Outside Diameter: 5.125
Pulley Ridge Diameter: 5.125
Refrigerant Type: R134a
Suction Port Type: O-Ring / Gasket
Terminal Type: Pin
UPC: 096361783744
Part Description: 2002 Chrysler Voyager A C Compressor With Clutch
