Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 78374 |
Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.125 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10S20H |

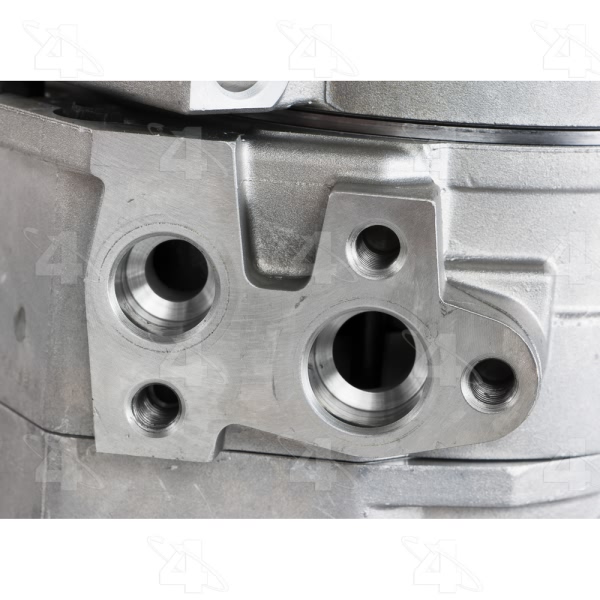

Discharge Port Type | O-Ring / Gasket |
Distance From Clutch To Mounting Flange | 1.078125 |
Mount Distance MM | 27.178 |
Mounting Hardware | Not Included |
Mounting Type | 2 Ear & 2 Boss |
New or Reman | New |
O-Ring A Number/Desc | [24068] / Gasket |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24069] / Gasket |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Connector and OE Manifold; DeSlugger [36142] Recommended to Eliminate Compressor Damage on Vehicles with Low Mount Compressor |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 130.048 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.125 |
Pulley Outside Diameter | 5.125 |
Pulley Ridge Diameter | 5.125 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring / Gasket |
Terminal Type | Pin |
UPC | 096361783744 |
Year Make Model | Trim | Engine |
---|---|---|
2001-2002 Chrysler Grand Voyager | All Trims | All Engines |
2001-2007 Chrysler Town & Country | All Trims | All Engines |
2001-2003 Chrysler Voyager | All Trims | 6 Cyl 3.3L |
2004-2007 Chrysler Voyager | All Trims | All Engines |
2001-2002 Dodge Caravan | All Trims | 6 Cyl 3.3L |
2003 Dodge Caravan | All Trims | All Engines |
2004-2007 Dodge Caravan | All Trims | 6 Cyl 3.3L |
2001-2007 Dodge Grand Caravan | All Trims | All Engines |
