Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 78301 |

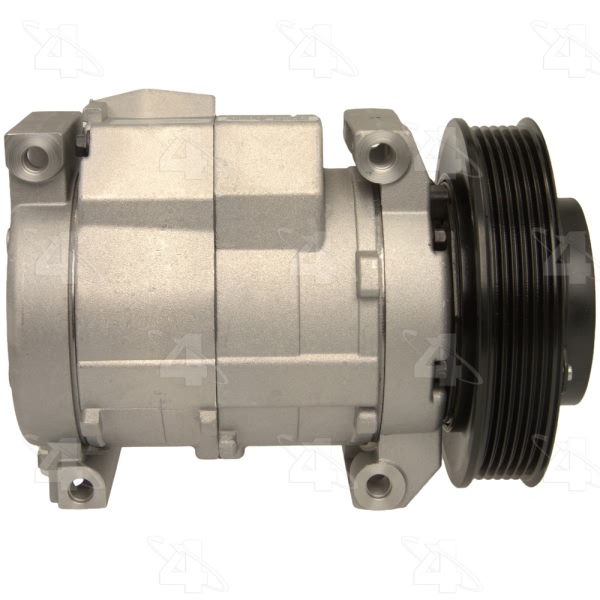

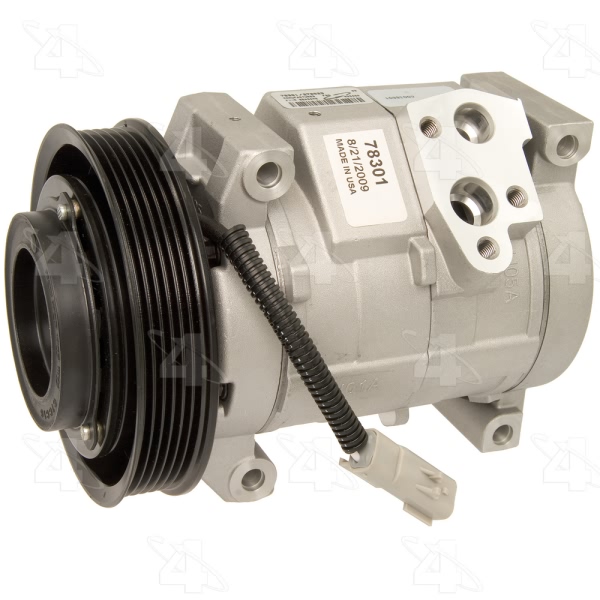

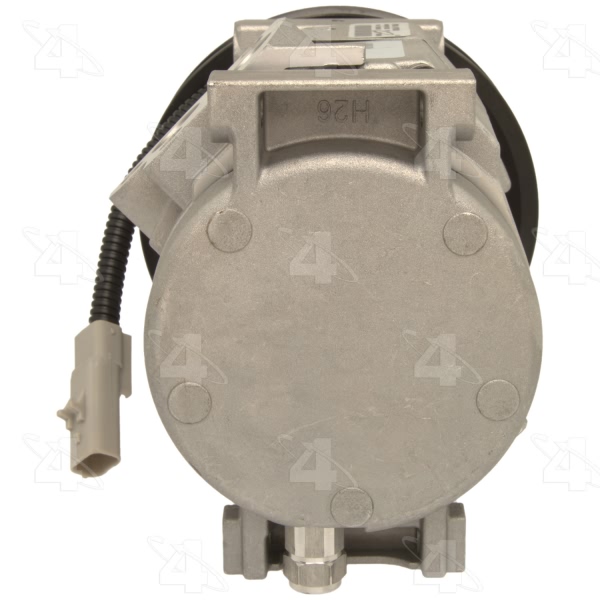

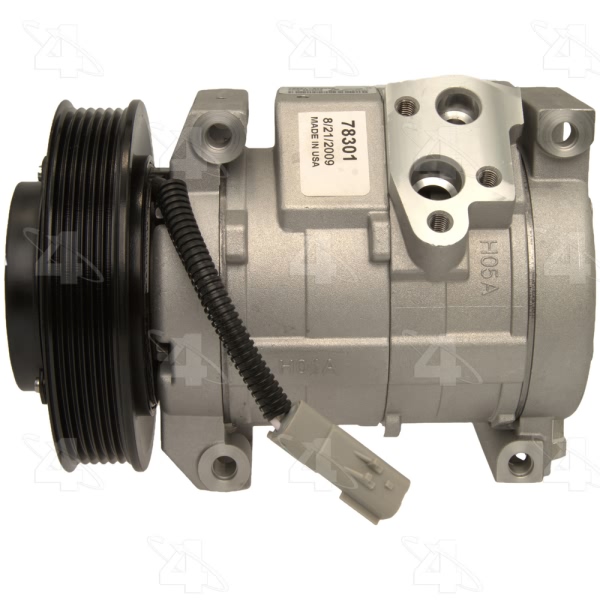

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.4375 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | 10S20C |
Distance From Clutch To Mounting Flange | 1.000 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | New |

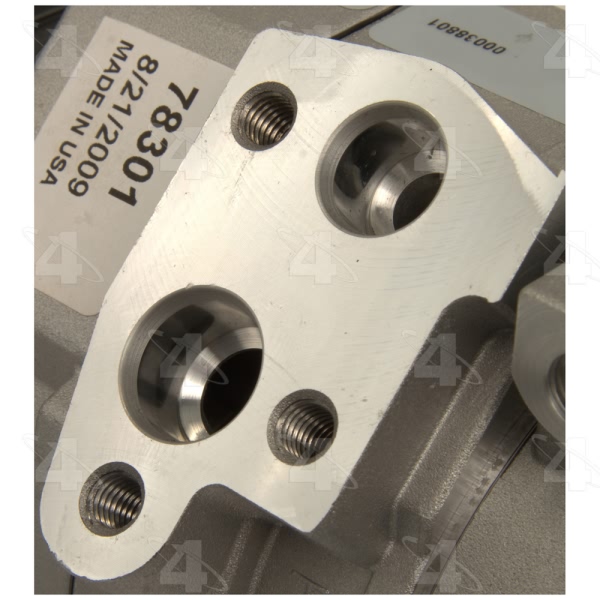

O-Ring A Number/Desc | [24068] / Gasket |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24069] / Gasket |
O-Ring B Quantity | 1 |
Printed Foot Note | May Require use of OE Manifold |

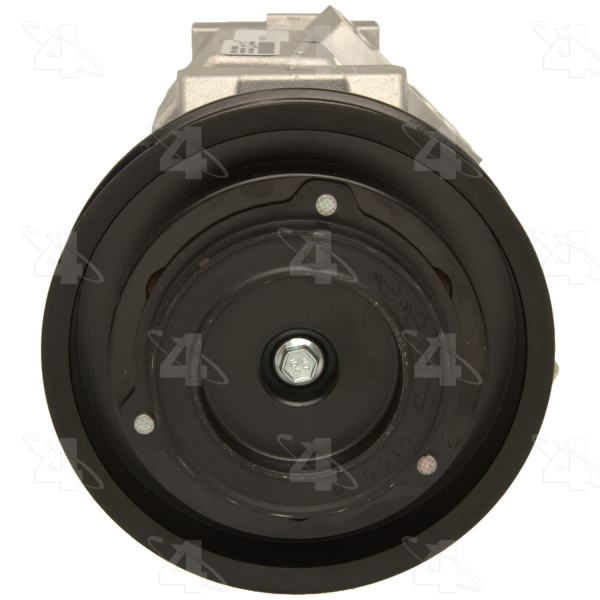

Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.4375 |
Pulley Outside Diameter | 5.4375 |
Pulley Ridge Diameter | 5.4375 |
Refrigerant Type | R134a |
Suc Prt Typ Note | May Require use of OE Manifold |
Suction Port Type | Sealing Washer |

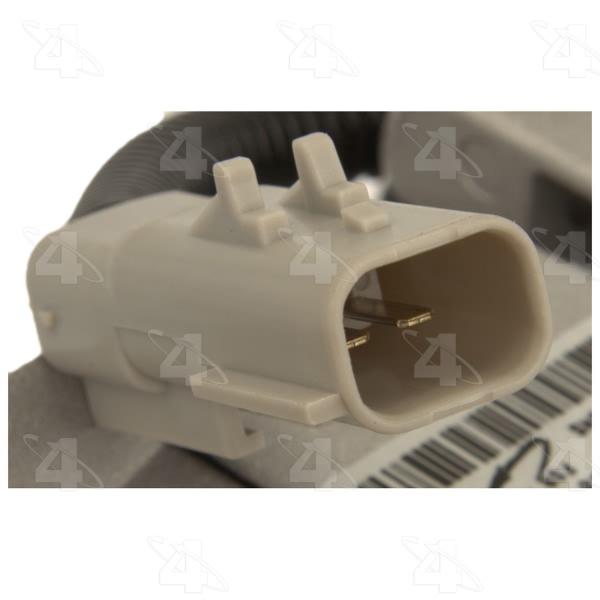

Terminal Type | Pin |
UPC | 096361783010 |
Year Make Model | Trim | Engine |
---|---|---|
2001-2003 Chrysler Voyager | All Trims | 4 Cyl 2.4L |
2001-2002 Dodge Caravan | All Trims | 4 Cyl 2.4L |
2004-2007 Dodge Caravan | All Trims | 4 Cyl 2.4L |
