1995 Dodge Ram 3500
< Back to View All
Fuel Systems
- Department
- Product Fit
- Brands
- Prices
Delphi® Fuel Pump Module Assembly for 1995 Dodge Ram 3500
PartNumber: FG0202Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 7
- Flow Rating: 29 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: External
- Item Grade: Standard Replacement
- Maximum Pressure: 15.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 114.0
- Resistance Ohms Full: 4.0
- Strainer Included: Yes
- System Pressure: 73 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604061398
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 1995 Dodge Ram 3500 Fuel Pump Module Assembly
Vehicle Fitment- 1995 Dodge Ram 3500 | All Trims | 10 Cyl 8.0L
- 1995 Dodge Ram 3500 | All Trims | 8 Cyl 5.9L
$172.33
Autobest® Fuel Pump Module Assembly for 1995 Dodge Ram 3500
PartNumber: F3097AProduct Specifications- Notes: Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal
- Average Current Draw(A): 8
- Average Flow Rating(GPH): 33.1
- Connector Gender: Female
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: Yes
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 110
- Minimum Pump Pressure (PSI): 95
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 6.69
- Product Length (in): 17.2
- Product Width (in): 9.45
- Pump Type: Gerotor
- Regulator Included: Yes
- Resistance Ohms Empty: 104
- Resistance Ohms Full: 5
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845130976
- Voltage: 12V
- Weight (lbs): 3.53
- Wire Harness Included: No
- Part Description: 1995 Dodge Ram 3500 Fuel Pump Module Assembly
Vehicle Fitment- 1995 Dodge Ram 3500 | All Trims | 10 Cyl 8.0L
- 1995 Dodge Ram 3500 | All Trims | 8 Cyl 5.9L
$95.06
GMB® Mechanical Fuel Pump for 1995 Dodge Ram 3500
PartNumber: 530-8530Product Specifications- Mounting Hardware Included: 1 PAPER GASKET
- UPC: 083286194625
- Part Description: 1995 Dodge Ram 3500 Mechanical Fuel Pump
Vehicle Fitment- 1995 Dodge Ram 3500 | All Trims | 6 Cyl 5.9L
$171.36
OEM (Genuine) 1995 Dodge Ram 3500 Fuel Pump Assembly
PartNumber: 4863888AB
Product Specifications- Notes: All Models; Gas Engine; All
- Other Names: Fuel Gauge Sending Unit, Fuel Pump
- Item Dimensions: 18.4 x 12.3 x 7.0 inches
- Item Weight: 4.70 Pounds
- Replaced by: 4863888AF
- Part Description: 1995 Dodge Ram 3500 Fuel Pump Assembly
Vehicle Fitment- 1995 Dodge Ram 3500 | Base | 10 Cyl 8.0 L GAS, 8 Cyl 5.9 L GAS
$262.88 MSRP:$382.00You Save: $119.12 (32%)

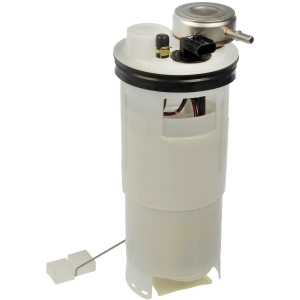

Dorman® Fuel Tank Sending Unit for 1995 Dodge Ram 3500
PartNumber: 2630343Product Specifications- Notes: Sweptline Box; Sender & Pump Assy
- Connector Color: Black
- Connector Gender: Male
- Connector Shape: Square
- Height: 434 mm
- Housing Length: 255 mm
- Housing Material: Plastic (Polyoxymethylene)
- Housing Width: 120 mm
- Inlet Type: Filter
- Length: 235 mm
- Lock Ring Included: No
- Maximum Flow Rating: 200 LPH
- Maximum Pressure: 40 PSI
- OE Part Number: 4863888AB, 52127880, 4856274, 52127850, 4797741, 4863888
- Outlet Diameter: 3/8''
- Outlet Quantity: 1
- Outlet Type: Male Quick Connect
- Seal Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Spade
- Top Mount Diameter: 146.8 mm
- Universal Or Specific Fit: Specific
- UPC: 747214303434
- Width: 146.8 mm
- Wire Gauge Measurement: 15 AWG; 17 AWG
- Wire Quantity: 4
- Part Description: 1995 Dodge Ram 3500 Fuel Tank Sending Unit
Vehicle Fitment- 1995 Dodge Ram 3500 | All Trims | All Engines
Denso® Fuel Pump Module Assembly for 1995 Dodge Ram 3500
PartNumber: 953-3009Product Specifications- Notes: w/Walbro Module; OE Replacement Module Assy
- Gaskets Included: Yes
- Internet Product Code (IPC): 84BAB2F8C3B
- Item Grade: Premium Replacement
- Item has MSDS (SDS): Y
- MFG Brand Name: DENSO Auto Parts
- MFG Model # (Series): 953-3009
- MFG Name: DENSO
- Package Contents: Fuel Pump Module
- Supplier Company Name: DENSO
- Universal Or Specific Fit: Specific
- UPC: 042511105744
- Part Description: 1995 Dodge Ram 3500 Fuel Pump Module Assembly
Vehicle Fitment- 1995 Dodge Ram 3500 | All Trims | 10 Cyl 8.0L
- 1995 Dodge Ram 3500 | All Trims | 8 Cyl 5.9L
Airtex® Mechanical Fuel Pump for 1995 Dodge Ram 3500
PartNumber: 73104Product Specifications- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Threaded
- Item Grade: Standard Replacement
- Maximum Pressure Rate (psi): 20
- Minimum Free Flow Rate (gph): 50
- Minimum Pressure Rate (psi): 20
- Outlet Count: 1
- Outlet Size: 14mm X 1.5 Pitch
- Outlet Type: Threaded
- Package Contents: Pump & Kit
- Package Quantity: 1
- Warranty: Limited 1 Year
- Part Description: 1995 Dodge Ram 3500 Mechanical Fuel Pump
Vehicle Fitment- 1995 Dodge Ram 3500 | All Trims | 6 Cyl 5.9L
Hella® Fuel Pump for 1995 Dodge Ram 3500
PartNumber: H75030051Product Specifications- Notes: Discontinued; 12V; 48PSI; 32GPH HI
- UPC: 760687051510
- Part Description: 1995 Dodge Ram 3500 Fuel Pump
Vehicle Fitment- 1995 Dodge Ram 3500 | All Trims | 10 Cyl 8.0L
- 1995 Dodge Ram 3500 | All Trims | 8 Cyl 5.9L
OEM (Genuine) 1995 Dodge Ram 3500 Module-Sending Unit Reservoir
PartNumber: 4798057Product Specifications- Notes: All Models; 5.2l, 5.9l Gas
- Item Dimensions: 17.9 x 8.8 x 7.6 inches
- Item Weight: 4.60 Pounds
- Fitment Type: Direct Replacement
- Part Description: 1995 Dodge Ram 3500 Module-Sending Unit Reservoir
Vehicle Fitment- 1995 Dodge Ram 3500 | Base | 8 Cyl 5.9 L GAS

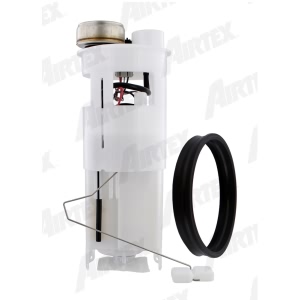

Airtex® In-Tank Fuel Pump Module Assembly for 1995 Dodge Ram 3500
PartNumber: E7086MProduct Specifications- Notes: with Walbro Module
- Gasket Included: Y
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Strainer
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 70
- Maximum Pressure Rate (psi): 110
- Minimum Free Flow Rate (gph): 60
- Minimum Pressure Rate (psi): 95
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: Quick Connect
- Package Contents: Pump & Kit
- Package Quantity: 1
- Warranty: Lifetime Limited Warranty
- Part Description: 1995 Dodge Ram 3500 In-Tank Fuel Pump Module Assembly
Vehicle Fitment- 1995 Dodge Ram 3500 | All Trims | 8 Cyl 5.9L
OEM (Genuine) 1995 Dodge Ram 3500 Fuel Pump
PartNumber: 4761979Product Specifications- Notes: Ram 2500, 3500
- Part Description: 1995 Dodge Ram 3500 Fuel Pump
Vehicle Fitment- 1995 Dodge Ram 3500 | Base | 6 Cyl 5.9 L DIESEL
OEM (Genuine) 1995 Dodge Ram 3500 Fuel Pump
PartNumber: 4798287Product Specifications- Notes: All Models; 8.0l; Compressed Natural Gas (cng), Pressure Regulator
- Part Description: 1995 Dodge Ram 3500 Fuel Pump
Vehicle Fitment- 1995 Dodge Ram 3500 | Base | 10 Cyl 8.0 L GAS, 6 Cyl 5.9 L DIESEL, 8 Cyl 5.9 L GAS
OEM (Genuine) 1995 Dodge Ram 3500 Fuel Pump And Level Unit Module
PartNumber: 4864209Product Specifications- Notes: Diesel W/O Pick-Up Box; Diesel W/Pick-Up Box; All Models; 5.9l Diesel; All Models; Diesel Engine
- Item Dimensions: 20.6 x 18.0 x 9.9 inches
- Item Weight: 14.40 Pounds
- Fitment Type: Direct Replacement
- Part Description: 1995 Dodge Ram 3500 Fuel Pump And Level Unit Module
Vehicle Fitment- 1995 Dodge Ram 3500 | Base | 6 Cyl 5.9 L DIESEL
