Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Dorman |
Part Number | 2630343 |

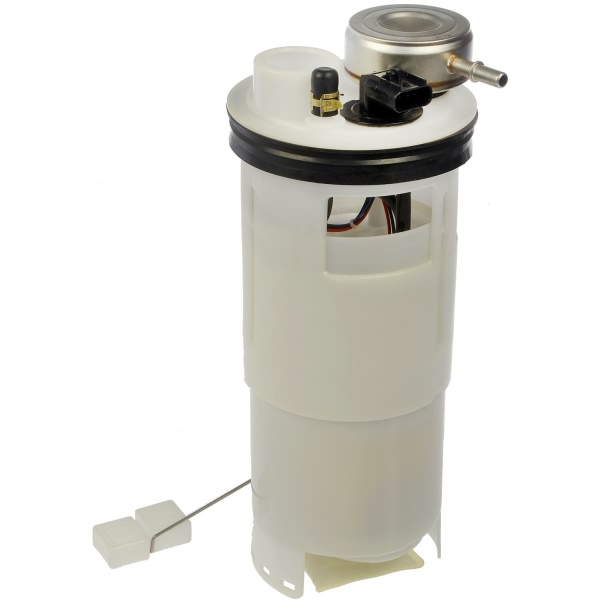

Part Description | Fuel Tank Sending Unit |
Connector Color | Black |
Connector Gender | Male |
Connector Shape | Square |
Height | 434 mm |
Housing Length | 255 mm |
Housing Material | Plastic (Polyoxymethylene) |
Housing Width | 120 mm |
Inlet Type | Filter |
Length | 235 mm |
Lock Ring Included | No |
Maximum Flow Rating | 200 LPH |
Maximum Pressure | 40 PSI |
UPC | 747214303434 |
OE Part Number | 4863888AB, 52127880, 4856274, 52127850, 4797741, 4863888 |
Outlet Diameter | 3/8'' |
Outlet Quantity | 1 |
Outlet Type | Male Quick Connect |
Seal Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Spade |
Top Mount Diameter | 146.8 mm |
Universal Or Specific Fit | Specific |
Width | 146.8 mm |
Wire Gauge Measurement | 15 AWG; 17 AWG |
Wire Quantity | 4 |
Year Make Model | Trim | Engine |
---|---|---|
1995 Dodge Ram 1500 | All Trims | All Engines |
1995 Dodge Ram 2500 | All Trims | All Engines |
1995 Dodge Ram 3500 | All Trims | All Engines |
