Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG0202 |

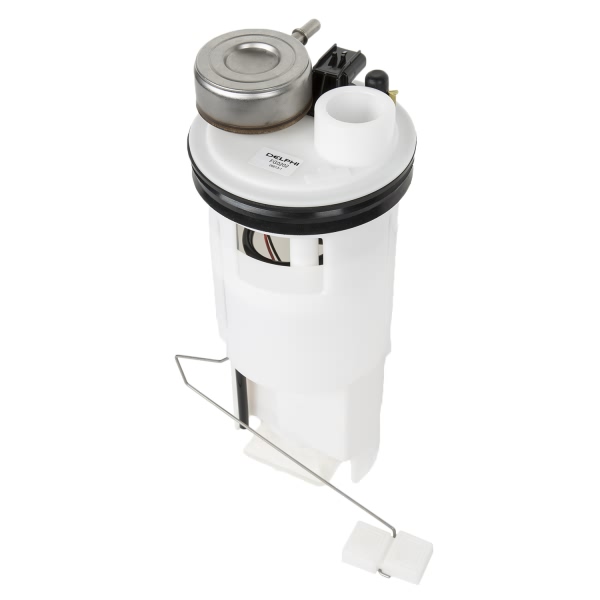

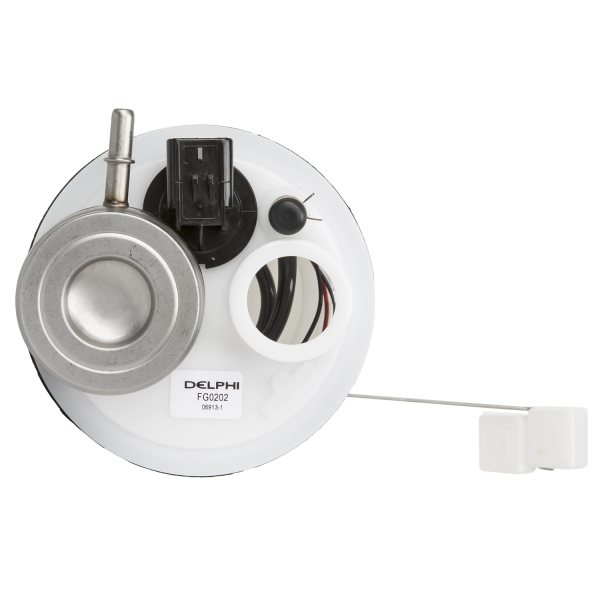

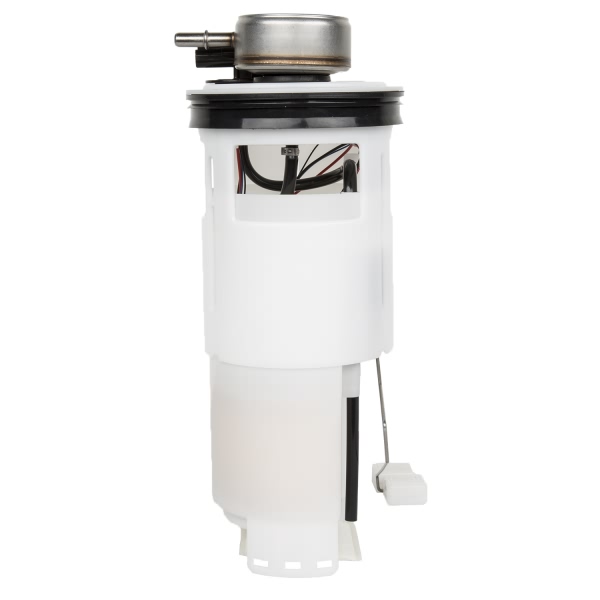

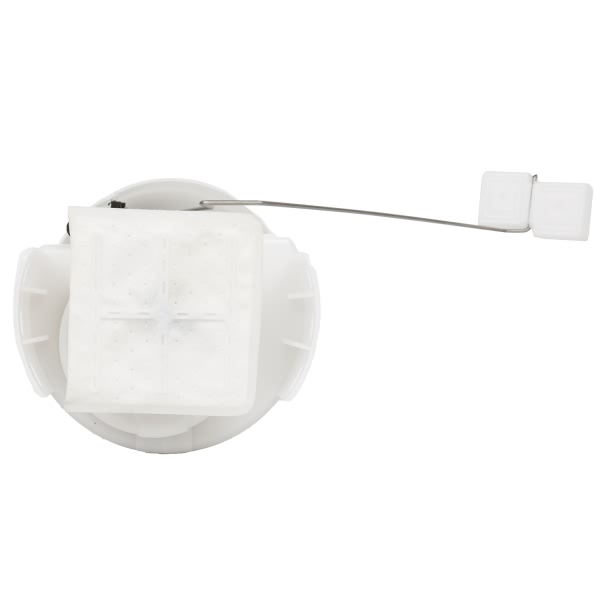

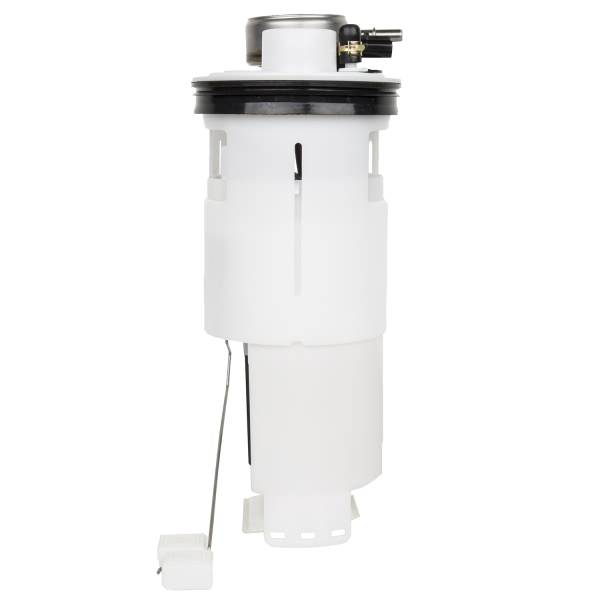

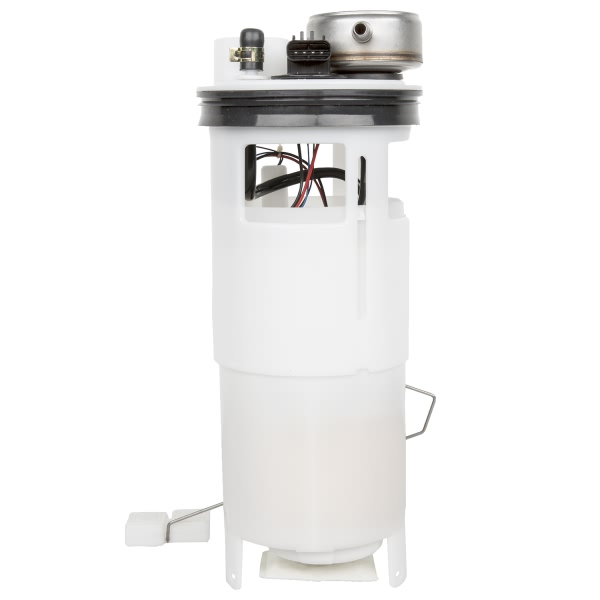

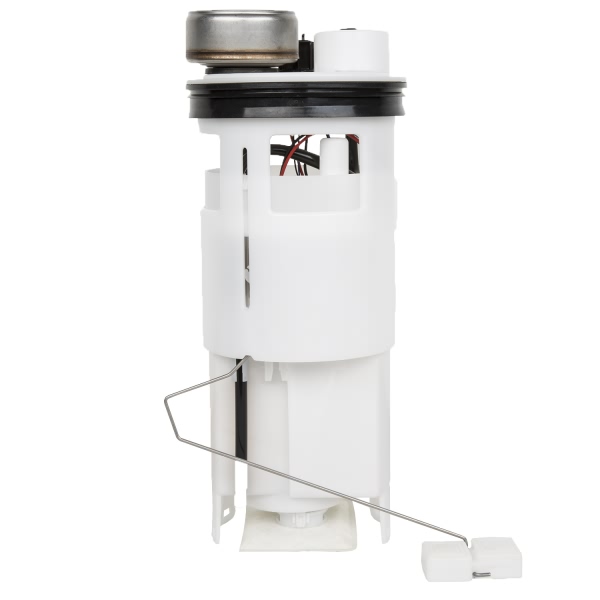

Part Description | Fuel Pump Module Assembly |
Current Draw | 7 |
Flow Rating | 29 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Maximum Pressure | 15.0 PSI |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 114.0 |
Resistance Ohms Full | 4.0 |
Strainer Included | Yes |
System Pressure | 73 psi |
Terminal Gender | Male |
Terminal Quantity | 4 |

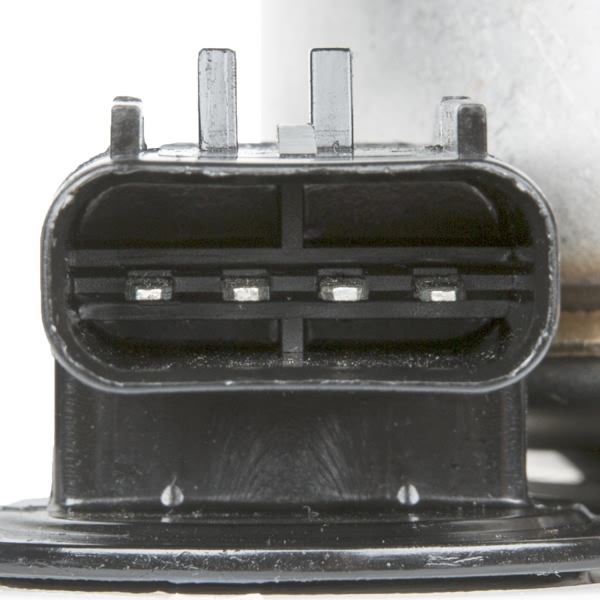

Terminal Type | Blade |
UPC | 689604061398 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
1995 Dodge Ram 1500 | All Trims | 6 Cyl 3.9L |
1995 Dodge Ram 1500 | All Trims | 8 Cyl 5.2L |
1995 Dodge Ram 1500 | All Trims | 8 Cyl 5.9L |
1995 Dodge Ram 2500 | All Trims | 10 Cyl 8.0L |
1995 Dodge Ram 2500 | All Trims | 8 Cyl 5.2L |
1995 Dodge Ram 2500 | All Trims | 8 Cyl 5.9L |
1995 Dodge Ram 3500 | All Trims | 10 Cyl 8.0L |
1995 Dodge Ram 3500 | All Trims | 8 Cyl 5.9L |
