Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Walker |
Part Number | 50086 |

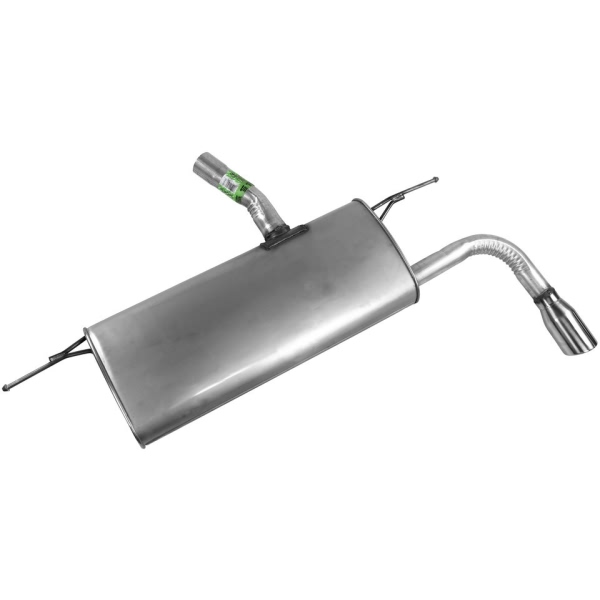

Part Description | Quiet Flow Stainless Steel Oval Bare Exhaust Muffler And Pipe Assembly |
Body Height | 5.500 |
Body Length | 27.000 |
Body Material | Stainless Steel |
Body Width | 11.000 |
Finish | Natural |
Grade Type | Regular |
Inlet 1 Inside Diameter | 2.250 |
Inlet 1 Type | Pipe Connection |
Inlet Configuration | Body Side |
Internet Product Code (IPC) | EF14E9CBDB2 |
Item has MSDS (SDS) | N |
Max Year Covered | 2017 |
MFG Brand Name | Walker Exhaust |
MFG Model # (Series) | 50086 |
MFG Name | Tenneco, Inc |
Min Year Covered | 2013 |
Most Popular Make / Model | Ford Fusion |
Most Popular Year | 2016 |
Muffler Body Height | 5.5 |
Muffler Body Length | 27.0 |
Muffler Body Material | Stainless Steel |
Muffler Body Width | 11.0 |
Muffler Color / Finish | Bare |
Muffler Inlet | Body Side |
Muffler Inlet Connection Type | Pipe Connection |
Muffler Inlet Count | 1 |
Muffler Inlet Diameter (in) | 2.25 |
Muffler Inlet Diameter Designation | Inside Diameter |
Muffler Outlet | Offset |
Muffler Outlet Connection Type | Tip - Bumper Exit |
Muffler Outlet Count | 1 |
Muffler Outlet Diameter (in) | 3.0 |
Muffler Outlet Diameter Designation | Outside Diameter |
Muffler Overall Length | 50.0 |
Muffler Reversible | No |
Muffler Shape | Oval |
Outlet 1 Outside Diameter | 3.000 |
Outlet Configuration | Offset |
Overall Length | 50.000 |
Product Grade | Economy |
Shape | Oval |
Supplier Company Name | Tenneco, Inc |
Total Part VIO | 1001744 |
UPC | 086387500869 |
Year Make Model | Trim | Engine |
---|---|---|
2013-2014 Ford Fusion | All Trims | 4 Cyl 1.6L |
2013-2017 Ford Fusion | All Trims | 4 Cyl 2.0L |
2013-2017 Ford Fusion | All Trims | 4 Cyl 2.5L |
2014-2016 Ford Fusion | All Trims | 4 Cyl 1.5L |
