Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Walker |
Part Number | 22324 |

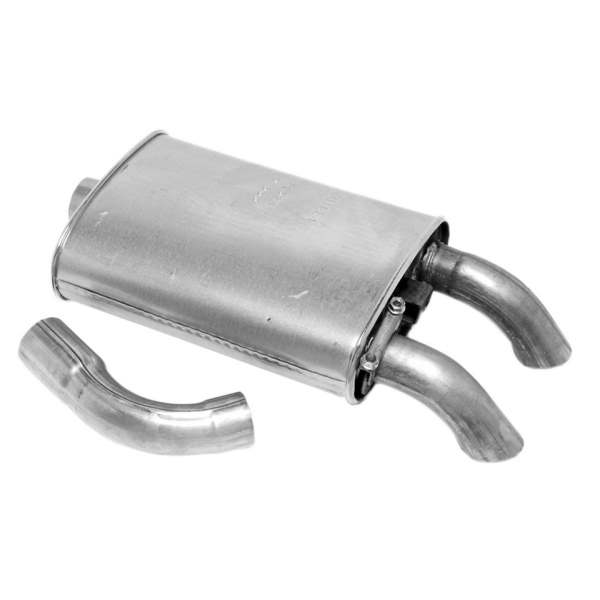

Part Description | Quiet Flow Stainless Steel Oval Aluminized Exhaust Muffler |
Body Height | 4.250 |
Body Length | 14.000 |
Body Material | Stainless Steel |
Body Width | 9.750 |
Exhaust Component Mount Type | Uses Factory Hangers |
Finish | Aluminized |
Grade Type | Regular |
Inlet 1 Inside Diameter | 2.250 |
Inlet 1 Type | Pipe Connection |
Inlet Configuration | Center |
Internet Product Code (IPC) | 0C01B0600C8 |
Item has MSDS (SDS) | N |
Max Year Covered | 1984 |
MFG Brand Name | Walker Exhaust |
MFG Model # (Series) | 22324 |
MFG Name | Tenneco, Inc |
Min Year Covered | 1984 |
Most Popular Make / Model | Chevrolet Corvette |
Most Popular Year | 1984 |
Muffler Body Height | 4.25 |
Muffler Body Length | 14.0 |
Muffler Body Material | Stainless Steel |
Muffler Body Width | 9.75 |
Muffler Color / Finish | Bare |
Muffler Inlet | Centered |
Muffler Inlet Connection Type | Pipe Connection |
Muffler Inlet Count | 1 |
Muffler Inlet Diameter (in) | 2.25 |
Muffler Inlet Diameter 2 (in) | 0.0 |
Muffler Inlet Diameter Designation | Inside Diameter |
Muffler Outlet | Offset |
Muffler Outlet Connection Type | Tip - Welded Spout |
Muffler Outlet Count | 2 |
Muffler Outlet Diameter (in) | 2.25 |
Muffler Outlet Diameter Designation | Outside Diameter |
Muffler Overall Length | 20.75 |
Muffler Reversible | No |
Muffler Shape | Oval |
Outlet 1 Outside Diameter | 2.250 |
Outlet 2 Outside Diameter | 2.250 |
Outlet Configuration | Offset |
Overall Length | 20.750 |
Product Grade | Economy |
Reversible | No |
Shape | Oval |
Supplier Company Name | Tenneco, Inc |
Total Part VIO | 17357 |
Universal Or Specific Fit | Specific |
UPC | 086387223249 |
Year Make Model | Trim | Engine |
---|---|---|
1984 Chevrolet Corvette | All Trims | 8 Cyl 5.7L |
