Check if it fits by entering your vehicle infoBrand | TYC |
Part Number | 2757 |

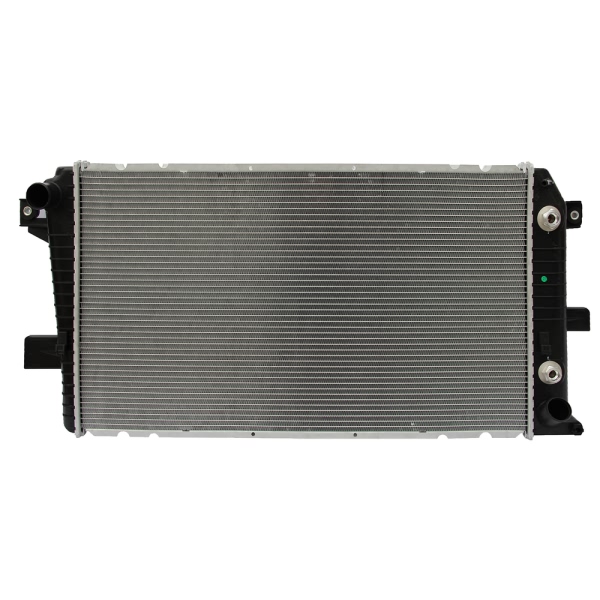

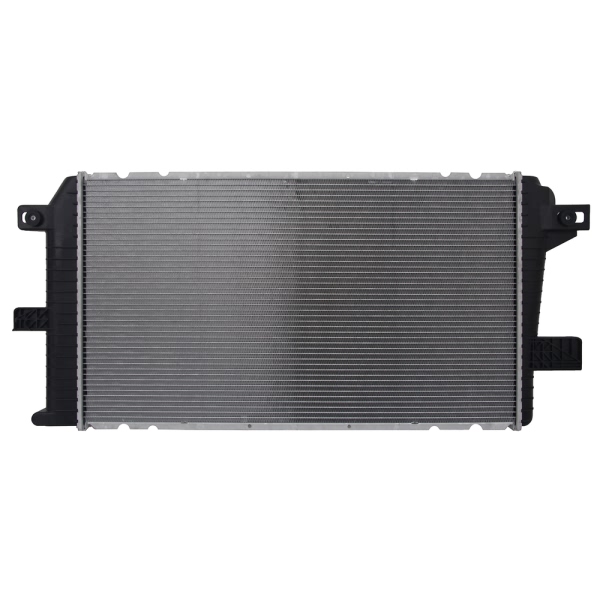

Part Description | Engine Coolant Radiator |
Bottom Header | 3.16" x 20.66" |
Core Height | 19.41" |
Core Length | 34.09" |
Core Material | Aluminum |
Core Thickness | 2.20" |
EOC (Yes/No) | No |
Fin Count (Every 4"): 64 | 64 |
Fin Wave Height | 0.35" |
Find Wave Pitch | 3.2 |
Flow Configuration | Crossflow |
Inlet Connection Type | Hose Clamp |
Inlet Diameter | 1.81" |
UPC | 762405912233 |
OE Part Number | 15914079, GM3010285 |
Outlet Connection Type | Hose Clamp |
Outlet Diameter | 1.81" |
Rows | 1 |
TOC (Yes/No) | Yes |
TOC Distance | 11.50" |
TOC Inlet Diameter | 0.88" |
Toc Inlet Type | Quick Connect |
TOC Outlet Diameter | 0.88" |
Toc Outlet Type | Quick Connect |
TOC type | Plate Oil Cooler |
Top Header | 3.16" x 20.66" |
Total Fin Row Count | 45 |
Total Tube Count | 44 |
Tube Count (Every 4"): 10 | 10 |
Tube Width x Height | 26" x 2" |
Year Make Model | Trim | Engine |
---|---|---|
2001-2005 Chevrolet Silverado 2500 HD | All Trims | 8 Cyl 6.6L |
2001-2005 Chevrolet Silverado 3500 | All Trims | 8 Cyl 6.6L |
2001-2005 GMC Sierra 2500 HD | All Trims | 8 Cyl 6.6L |
2001-2005 GMC Sierra 3500 | All Trims | 8 Cyl 6.6L |
