Check if it fits by entering your vehicle infoBrand | TYC |
Part Number | 2596 |

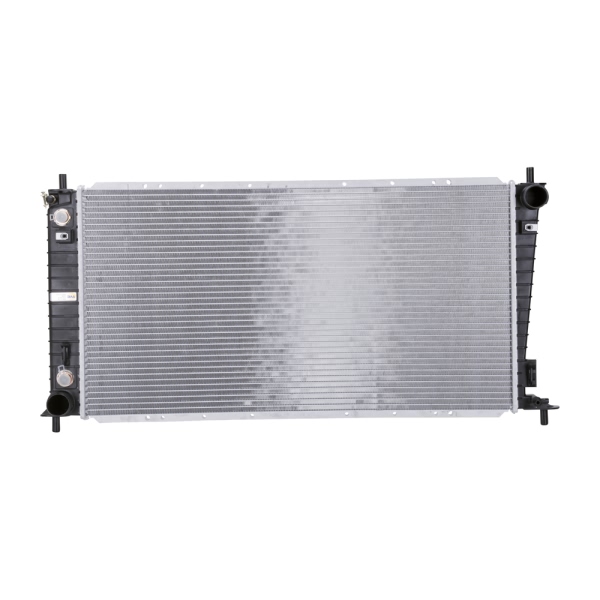

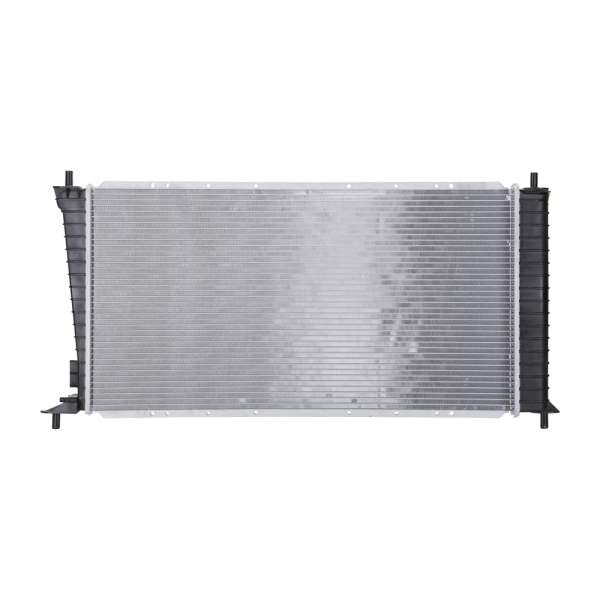

Part Description | Engine Coolant Radiator |
Bottom Header | 3.14" x 17.29" |
Core Height | 16.81" |
Core Length | 31.89" |
Core Material | Aluminum |
Core Thickness | 1.02" |
EOC (Yes/No) | No |
Fin Count (Every 4"): 64 | 64 |
Fin Wave Height | 0.35" |
Find Wave Pitch | 3.2 |
Flow Configuration | Crossflow |
Inlet Connection Type | Hose Clamp |

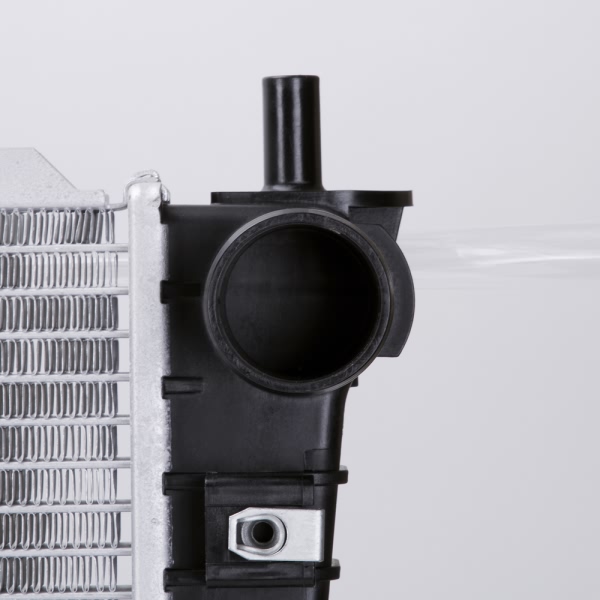

Inlet Diameter | 1.77" |
UPC | 762405911687 |
OE Part Number | 2L3Z8005BA |
Outlet Connection Type | Hose Clamp |

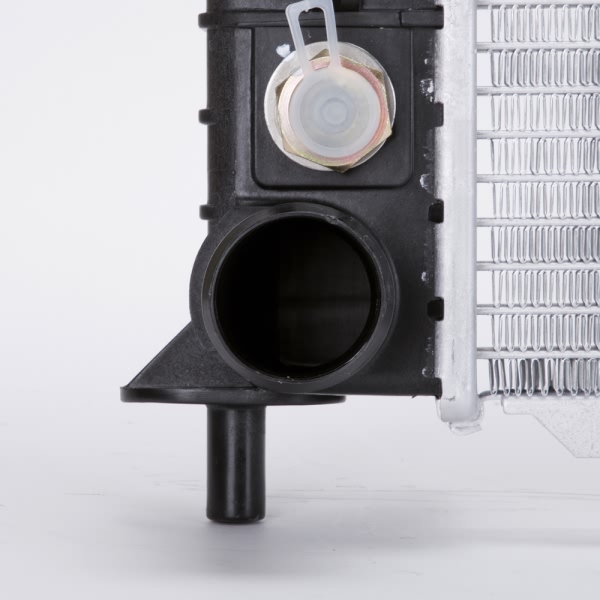

Outlet Diameter | 1.77" |
Rows | 1 |
TOC (Yes/No) | Yes |
TOC Distance | 12.01" |
TOC Inlet Diameter | 0.37" |
Toc Inlet Type | Quick Connect |
TOC Outlet Diameter | 0.37" |
Toc Outlet Type | Quick Connect |
TOC type | Plate Oil Cooler |
Top Header | 1.97" x 17.28" |
Total Fin Row Count | 39 |
Total Tube Count | 38 |
Tube Count (Every 4"): 10 | 10 |
Tube Width x Height | 26" x 2" |
Year Make Model | Trim | Engine |
---|---|---|
2003 Ford F-150 | All Trims | 8 Cyl 5.4L |
2003-2004 Ford F-150 | All Trims | 6 Cyl 4.2L |
2003-2004 Ford F-150 | All Trims | 8 Cyl 4.6L |
2004 Ford F-150 Heritage | All Trims | 6 Cyl 4.2L |
2004 Ford F-150 Heritage | All Trims | 8 Cyl 4.6L |
