Vehicle Specific
Check if it fits by entering your vehicle infoBrand | TYC |
Part Number | 13623 |

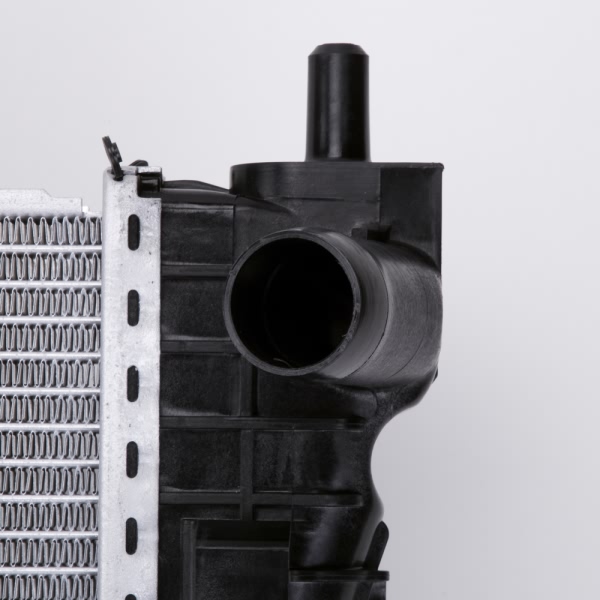

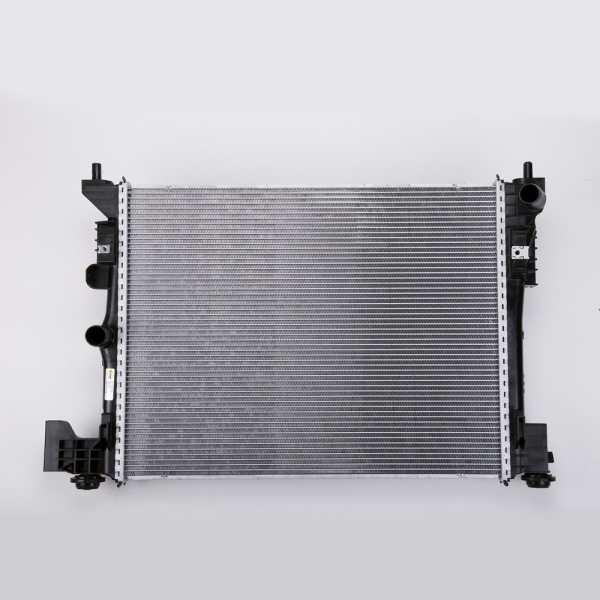

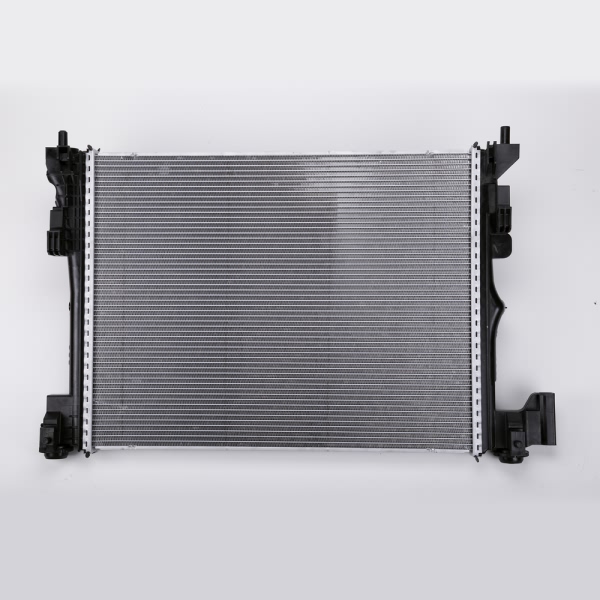

Part Description | Engine Coolant Radiator |
Bottom Header | 1.79x19.15 |
Core Height | 18.22 |
Core Length | 23.62 |
Core Material | Aluminum |
Core Thickness | 1.02 |
Engine Oil Cooler Included | No |
Fin Count (every 4") | 78 |
Fin Wave Height (in) | 0.25 |
Find Wave Pitch | 2.6 |
Flow Configuration | Crossflow |
Inlet Connection Type | Hose Clamp |
Inlet Diameter | 1.34 |
No. Of Rows | 1 |
UPC | 762405911946 |
OE Part Number | GM3010602, 23385874 |
Outlet Connection Type | Hose Clamp |
Outlet Diameter | 1.34 |
Top Header | 1.79x19.15 |
Total Fin Row Count | 56 |
Total Tube Count | 55 |
Transmission Oil Cooler Included | No |
Tube Count (every 4") | 12 |
Tube Width x Height | 26x2 |
Year Make Model | Trim | Engine |
---|---|---|
2016-2019 Cadillac CT6 | All Trims | All Engines |
2020 Cadillac CT6 | All Trims | 6 Cyl 3.6L |
