Four Seasons® Remanufactured A C Compressor With Clutch for Mercedes-Benz 350SDL
PartNumber: 57336Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 4.750
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 10PA17C
- Distance From Clutch To Mounting Flange: 0.6875
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24156] / Compressor Manifold Port Gasket
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 120.650
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 4.750
- Pulley Outside Diameter: 4.750
- Pulley Ridge Diameter: 4.750
- Refrigerant Type: R134a
- Reman w/o Clutch: [57304] / Clutch Assembly
- Suction Port Type: Pad Mount
- Switch Included: Speed Sensor
- Terminal Type: Pin
- UPC: 096361573369
- w/ Diode: Yes
- Part Description: Mercedes-Benz 350SDL Remanufactured A C Compressor With Clutch
$199.62
Four Seasons® A C Compressor With Clutch for Mercedes-Benz 350SDL
PartNumber: 58336Product Specifications- Clutch Included: Yes
- Clutch Maximum Diameter: 4.750
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: 10PA17C
- Distance From Clutch To Mounting Flange: 0.6875
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: New
- O-Ring A Number/Desc: [24156] / Compressor Manifold Port Gasket
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: Not Required
- O-Ring B Quantity: NR
- O-Ring C Number/Desc: Not Required
- O-Ring C Quantity: NR
- Printed Foot Note: May Require use of OE Manifold
- Pulley Belt Type: Serpentine
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 4.750
- Pulley Outside Diameter: 4.750
- Pulley Ridge Diameter: 4.750
- Refrigerant Type: R134a
- Reman w/o Clutch: [57304] / Clutch Assembly
- Suction Port Type: Pad Mount
- Switch Included: Speed Sensor
- Terminal Type: Pin
- UPC: 096361583368
- w/ Diode: Yes
- Part Description: Mercedes-Benz 350SDL A C Compressor With Clutch
$234.06

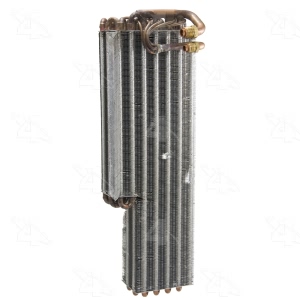

Four Seasons® A C Evaporator Core for Mercedes-Benz 350SDL
PartNumber: 54133Product Specifications- Core Depth Fraction: 3-1/4
- Core Depth MM: 82.550
- Core Height Fraction: 20
- Core Height MM: 508.000
- Core Width Fraction: 7-1/4
- Core Width MM: 184.150
- Depth: 3.25; 3.250
- Height: 20; 20.000
- Inlet Fitting Outside Diameter: No. 8
- Material: Aluminum
- O-Ring A Number/Desc: [24608] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24610] / Green O-Ring
- O-Ring B Quantity: 1
- Outlet Fitting Outside Diameter: No. 10
- UPC: 096361541337
- Width: 7.250
- Part Description: Mercedes-Benz 350SDL A C Evaporator Core
$117.27
Four Seasons® A C Condenser Fan Switch for Mercedes-Benz 350SDL
PartNumber: 36575Product Specifications- Connector Color: Red
- Connector Gender: Male
- Connector Shape: Wire Lead
- Fan Open/Closed: Open
- Fitting Thread Size: 3/8 in. x 24
- Item Included A Desc: 24606
- Item Included A Qty.: 1
- Material: Plastic / Metal
- Meets / Exceeds OEM: YES
- Mnt Sys Loc: System Mounted
- Operate Psi Med Off: 155
- Operate Psi Med On: 220
- Style: Pressure
- Terminal Quantity: 2
- UPC: 096361365759
- Part Description: Mercedes-Benz 350SDL A C Condenser Fan Switch
$27.18

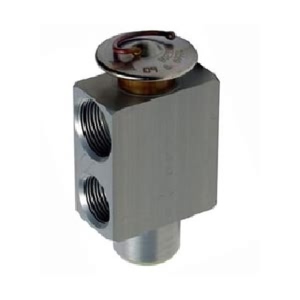

Four Seasons® A C Expansion Valve for Mercedes-Benz 350SDL
PartNumber: 38602Product Specifications- Color: Aluminum
- Liquid Inlet Fitting Gender: Female
- Liquid Inlet Fitting Thread Diameter: No. 6
- Liquid Inlet Style: FIO
- Liquid Inlet Thread Type: 5/8" - 18
- Liquid Inlet Type: O-Ring
- Liquid Outlet Fitting Gender: Female
- Liquid Outlet Fitting Thread Diameter: No. 8
- Liquid Outlet Style: FIO
- Liquid Outlet Thread Type: 3/4" - 18
- Liquid Outlet Type: O-Ring
- Material: Aluminum
- Meets / Exceeds OEM: Yes
- Mounting Hole Quantity: 2
- O-Ring A Number/Desc: [24606] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24608] / Green O-Ring
- O-Ring B Quantity: 1
- O-Ring C Number/Desc: [24610] / Green O-Ring
- O-Ring C Quantity: 2
- Refrigerant Type: R134A
- Style: w/o Solenoid
- Suction Inlet Fitting Gender: Female
- Suction Inlet Fitting Thread Diameter: No. 10
- Suction Inlet Style: FIO
- Suction Inlet Thread Type: 7/8" - 18
- Suction Inlet Type: O-Ring
- Suction Outlet Fitting Gender: Female
- Suction Outlet Fitting Thread Diameter: No. 10
- Suction Outlet Style: FIO
- Suction Outlet Thread Type: 7/8" - 18
- Suction Outlet Type: O-Ring
- Super Heat: 6.300
- Switch Included: Not Included
- Tonnage: 2.000
- UPC: 096361386020
- Part Description: Mercedes-Benz 350SDL A C Expansion Valve
$25.49
Four Seasons® Ambient Air Temperature Sensor Connector for Mercedes-Benz 350SDL
PartNumber: 70016Product Specifications- Connector Shape: Oval
- Gender: Male
- Style: Harness Connector
- Terminal Gender: Female
- Terminal Quantity: 2
- UPC: 096361028005
- Part Description: Mercedes-Benz 350SDL Ambient Air Temperature Sensor Connector
$24.24
Four Seasons® A C System O Ring And Gasket Kit for Mercedes-Benz 350SDL
PartNumber: 26769Product Specifications- Material: Green Rubber O-Rings
- Style: O-Ring & Gasket Kit
- UPC: 096361267695
- Part Description: Mercedes-Benz 350SDL A C System O Ring And Gasket Kit
$20.37

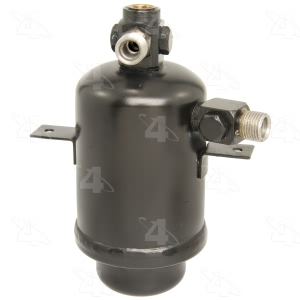

Four Seasons® A C Receiver Drier for Mercedes-Benz 350SDL
PartNumber: 33384Product Specifications- Body Diameter: 3.000
- Body Length: 6.500
- Bracket: w/ Bracket
- Connector B Type: Male Insert O-Ring
- Connector Type: Male Insert O-Ring
- Desiccant: Yes
- Desiccant Replaceable: Not Replaceable
- Dia. MM: 76.200
- Fuse Plug: No
- Gasket / Seals: Included
- In Line Filter Material: Desiccant
- In Line Filter Outlet Fitting Type: Male
- Inlet Filter Fitting Thread Diameter: 0.625
- Inlet Filter Fitting Type: Male
- Inlet Fitting Diameter: 0.375
- Inlet Fitting Type: Male Insert O-Ring
- Inlet Fraction: 3/8
- Inlet IN: 0.375
- Inlet MM: 9.525
- Length MM: 165.100
- Material: Steel
- Meets / Exceeds OEM: Yes
- Moisture Indicator Window: No
- Mounting Bracket Included: Hardware not included
- New or Reman: New
- O-Ring A Number/Desc: [24650] / Green O-Ring
- O-Ring A Quantity: 2
- O-Ring B Number/Desc: [24606] / Green O-Ring
- O-Ring B Quantity: 2
- Outlet Fitting Type: Male Insert O-Ring
- Outlet Fraction: 3/8
- Outlet IN: 0.375
- Outlet MM: 9.525
- Overall Depth IN: 6.500
- Overall Depth MM: 165.000
- P. R. V.: No
- Service Port: w/o Service Port
- Sight Glass: Yes
- Stud: No
- Style: Steel Filter Drier
- Switch Port: w/ Switch Port
- Switch Port Dia. IN: 0.250
- Switch Port Dia.MM: 6.350
- UPC: 096361333840
- Part Description: Mercedes-Benz 350SDL A C Receiver Drier
$18.92
Four Seasons® A C Compressor Cut Out Switch for Mercedes-Benz 350SDL
PartNumber: 36574Product Specifications- Color: Black
- Comp Open/Closed: Open
- Connector Gender: Male
- Connector Shape: Open
- Fitting Gender: Male
- Fitting Thread Size: 3/8 in. x 24
- Item Included A Desc: 24606
- Item Included A Qty.: 1
- Meets / Exceeds OEM: YES
- Mnt Sys Loc: System Mounted
- Number of Terminals: 2
- Operate Psi Low Off: 29
- Operate Psi Low On: 30
- Style: Binary
- UPC: 096361365742
- Part Description: Mercedes-Benz 350SDL A C Compressor Cut Out Switch
$11.57
Four Seasons® A C System Valve Core And Cap Kit for Mercedes-Benz 350SDL
PartNumber: 26777Product Specifications- Cap Color: Red, Blue, Black
- Cap Inside Diameter: Specific
- Cap Material: Plastic
- Material: Aluminum
- Refrigerant Type: R12, R134a
- Style: Cap & Valve Kit
- UPC: 096361267770
- Valve Core Material: Specific
- Part Description: Mercedes-Benz 350SDL A C System Valve Core And Cap Kit
$10.69
Four Seasons® A C Compressor Cut Out Switch Harness Connector for Mercedes-Benz 350SDL
PartNumber: 37219Product Specifications- Connector Pin Qty: 2
- Connector Shape: Round
- Connector Type: Pin
- Gender: Female
- Printed Foot Note: Pressure Switch Harness Connector
- Style: Harness Connector
- Terminal Gender: Female
- Terminal Quantity: 2
- UPC: 096361372191
- Part Description: Mercedes-Benz 350SDL A C Compressor Cut Out Switch Harness Connector
$6.63
Denso® A/C Compressor with Clutch for Mercedes-Benz 350SDL
PartNumber: 471-1224Product Specifications- Clutch Maximum Diameter: 120.0 mm
- Compressor Mount Hole Quantity: 4
- Mounting Type: Bolt Tangent
- OE Part Number: 000230051180, 2303611, 2302411, 2300511
- Pulley Belt Type: Serpentine
- Refrigerant Type: R134A
- UPC: 042511165960
- Part Description: Mercedes-Benz 350SDL A/C Compressor with Clutch

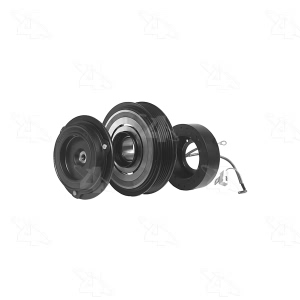

Four Seasons® A C Compressor Clutch for Mercedes-Benz 350SDL
PartNumber: 47536Product Specifications- Belt Type: Serpentine
- Belt Width IN: 1.625
- Can Size: w/ Coil
- Clutch Maximum Diameter: 5.000
- Coil: w/ Coil
- Coil Voltage: 12
- Color: Black
- Distance From Clutch To Mounting Flange: 0.6875
- Groove: 6
- Lead Wire : Lead Wires
- Material: Steel
- Meets / Exceeds OEM: Yes
- Mounting Type: Snap Ring
- Printed Foot Note: May Require use of OE Manifold
- Rotation: CCW-CW
- Style: 10PA
- Thermal Or Non Thermal: NR
- UPC: 096361475366
- Part Description: Mercedes-Benz 350SDL A C Compressor Clutch
Denso® A/C Expansion Valve for Mercedes-Benz 350SDL
PartNumber: 475-3000Product Specifications- UPC: 042511165052
- Part Description: Mercedes-Benz 350SDL A/C Expansion Valve
