Replacement and OEM Parts for GMC S15 Jimmy Driveline, Axles & 4WD

Select your vehicle for the best product fit

  • Select Vehicle by Model
  • Select Vehicle by VIN
Select Make
Select Model
Select Year
or

GMC S15 Jimmy Driveline, Axles & 4WD

< Back to View All
Engine & Drivetrain
  • Department
  • Brands
  • Prices

185 products about GMC S15 Jimmy Driveline, Axles & 4WD found

Show Item:
  • 30
  • 60
  • 90
Sort by:
Recommended
Filter
Sort
View by
  • OEM GMC S15 Jimmy Rear Cover Gasket Diagram - 26016661
    View Related Parts

    OEM (Genuine) GMC S15 Jimmy Rear Cover Gasket

    PartNumber: 26016661
    OEM GMC S15 Jimmy Rear Cover Gasket - 26016661
    Product Specifications
    • Item Dimensions: 11.6 x 2.0 x 1.6 inches
    • Item Weight: 0.70 Pounds
    • Fitment Type: Direct Replacement
    • Part Description: GMC S15 Jimmy Rear Cover Gasket
    More Info
    $9.87 MSRP: $16.04
    You Save: $6.17 (39%)
  • Dorman OE Solutions Rear Driver Side Axle Shaft for GMC S15 Jimmy - 630-124

    Dorman® OE Solutions Rear Driver Side Axle Shaft for GMC S15 Jimmy

    PartNumber: 630-124
    Product Specifications
    • ABS Tone Ring Installed: Not Included
    • Axle Type: Solid Shaft Axle
    • Hole Quantity: 5
    • Length: 26.59"
    • Material: Carbon Steel
    • OE Part Number: 26009534
    • Spline Quantity: 28 Spline
    • UPC: 019495146704
    • Wheel Lug Quantity: 5
    • Part Description: GMC S15 Jimmy OE Solutions Rear Driver Side Axle Shaft
    More Info
    $188.62
  • Anchor Driveshaft Center Support Bearing for GMC S15 Jimmy - 6056

    Anchor® Driveshaft Center Support Bearing for GMC S15 Jimmy

    PartNumber: 6056
    Product Specifications
    • Centerline Length: 2.28"
    • Inside Diameter: 1.378"
    • Mount Width: 6.62"
    • Shape: Round
    • UPC: 081106060563
    • Part Description: GMC S15 Jimmy Driveshaft Center Support Bearing
    More Info
    $10.02
  • Dorman OE Solutions Rear Passenger Side Axle Shaft for GMC S15 Jimmy - 630-103

    Dorman® OE Solutions Rear Passenger Side Axle Shaft for GMC S15 Jimmy

    PartNumber: 630-103
    Product Specifications
    • ABS Tone Ring Installed: Not Included
    • Axle Type: Solid Shaft Axle
    • Hole Quantity: 5
    • Length: 29.03"
    • Material: Carbon Steel
    • OE Part Number: 26013882
    • Spline Quantity: 28 Spline
    • UPC: 019495045748
    • Wheel Lug Quantity: 5
    • Part Description: GMC S15 Jimmy OE Solutions Rear Passenger Side Axle Shaft
    More Info
    $148.89
  • SKF Driveshaft Center Support Bearing for GMC S15 Jimmy - HB88532

    SKF® Driveshaft Center Support Bearing for GMC S15 Jimmy

    PartNumber: HB88532
    Product Specifications
    • Bolt Hole Center: 6.614"
    • Inside Diameter: 1.377"
    • Outside Diameter: 4.299"
    • UPC: 085311391689
    • Width: 1.889"
    • Part Description: GMC S15 Jimmy Driveshaft Center Support Bearing
    More Info
    $85.46
  • Westar Driveshaft Center Support for GMC S15 Jimmy - DS-6056

    Westar® Driveshaft Center Support for GMC S15 Jimmy

    PartNumber: DS-6056
    Product Specifications
    • UPC: 656591060567
    • Part Description: GMC S15 Jimmy Driveshaft Center Support
    $12.36
  • GMB Grade Standard U-Joint for GMC S15 Jimmy - 210-0455

    GMB® Grade Standard U-Joint for GMC S15 Jimmy

    PartNumber: 210-0455
    Product Specifications
    • Bearing Cap Diameter Axis 1 (in): 1.0600
    • Bearing Cap Diameter Axis 2 (in): 1.0600
    • Bearing Cap Finish: Machined
    • Greasable: Yes
    • Grease Zerks Included: Yes
    • Item Grade: OEM Standard
    • Pre-Greased: Yes
    • Seal Color / Finish: Rubber
    • Seal Material: Nitrile Rubber
    • Snap Ring Type: Inside/Outside
    • Universal Joint Cross Material: Chrome-Molybdenum Steel
    • Universal Joint Type: (ISR) Inside Snap Ring Style/(OSR) Outside Snap Ring Style
    • UPC: 083286109261
    • Part Description: GMC S15 Jimmy Grade Standard U-Joint
    More Info
    $24.92
  • OEM GMC S15 Jimmy Side Bearings Diagram - 23312178
    View Related Parts

    OEM (Genuine) GMC S15 Jimmy Side Bearings

    PartNumber: 23312178
    OEM GMC S15 Jimmy Side Bearings - 23312178
    Product Specifications
    • Other Names: Axle Bearing, Differential Bearings, Side Bearings
    • Item Dimensions: 3.5 x 3.6 x 1.0 inches
    • Item Weight: 1.00 Pounds
    • Fitment Type: Direct Replacement
    • Replaces: 20997053, 26051816, 9420095, 09420095
    • Part Description: GMC S15 Jimmy Side Bearings
    More Info
    $43.75 MSRP: $82.56
    You Save: $38.81 (48%)
  • OEM GMC S15 Jimmy Side Bearings Diagram - 23312178
    View Related Parts

    OEM (Genuine) GMC S15 Jimmy Side Bearings

    PartNumber: 23312178
    OEM GMC S15 Jimmy Side Bearings - 23312178
    Product Specifications
    • Other Names: Axle Bearing, Differential Bearings, Side Bearings
    • Item Dimensions: 3.5 x 3.6 x 1.0 inches
    • Item Weight: 1.00 Pounds
    • Fitment Type: Direct Replacement
    • Replaces: 20997053, 26051816, 9420095, 09420095
    • Part Description: GMC S15 Jimmy Side Bearings
    More Info
    $43.75 MSRP: $82.56
    You Save: $38.81 (48%)

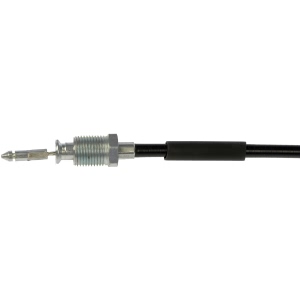

  • Dorman OE Solutions 4Wd Actuator Cable for GMC S15 Jimmy - 600-601

    Dorman® OE Solutions 4Wd Actuator Cable for GMC S15 Jimmy

    PartNumber: 600-601
    Product Specifications
    • Cable Jacket Material: Plastic
    • Cable Length: 37"
    • Installation Hardware Included: No
    • Item Grade: Standard Replacement
    • OE Part Number: 15654073
    • Package Contents: Cable
    • UPC: 019495237259
    • Part Description: GMC S15 Jimmy OE Solutions 4Wd Actuator Cable
    More Info
    $30.67
  • National Driveshaft Center Support Bearing for GMC S15 Jimmy - HB-88107-A

    National® Driveshaft Center Support Bearing for GMC S15 Jimmy

    PartNumber: HB-88107-A
    Product Specifications
    • Bolt Holes (Inch): 6.6240
    • Centerline Height: 2.28"
    • Inside Diameter: 1.378"
    • Outside Diameter: 2.834"
    • Type: 2
    • Width: 6.624"
    • Part Description: GMC S15 Jimmy Driveshaft Center Support Bearing
    More Info
    $31.20
  • SKF Driveshaft Center Support Bearing for GMC S15 Jimmy - HB88107-E

    SKF® Driveshaft Center Support Bearing for GMC S15 Jimmy

    PartNumber: HB88107-E
    Product Specifications
    • Bolt Hole Center: 6.625"
    • Inside Diameter: 1.378"
    • Outside Diameter: 4.084"
    • UPC: 085311174589
    • Width: 0.984"
    • Part Description: GMC S15 Jimmy Driveshaft Center Support Bearing
    More Info
    $38.26
  • Dorman OE Solutions Front Outer Cv Joint Boot Kit for GMC S15 Jimmy - 614-003

    Dorman® OE Solutions Front Outer Cv Joint Boot Kit for GMC S15 Jimmy

    PartNumber: 614-003
    Product Specifications
    • Boot Color: Black
    • Boot Material: Neoprene
    • Joint End Inside Diameter: 4"
    • Package Contents: 1 CV Joint Boot; 1 CV Joint Grease Pack; 2 Clamps
    • Package Quantity: 1
    • Packaging Type: Box
    • Rib Quantity: 6
    • Shaft End Inside Diameter: 0.98"
    • Split Or Solid Type: Solid
    • UPC: 019495800798
    • Vented Boot: No
    • Part Description: GMC S15 Jimmy OE Solutions Front Outer Cv Joint Boot Kit
    More Info
    $21.49
  • GMB Grade Performance™ Rear U-Joint for GMC S15 Jimmy - 215-0153

    GMB® Grade Performance™ Rear U-Joint for GMC S15 Jimmy

    PartNumber: 215-0153
    Product Specifications
    • Bearing Cap Diameter: 1.063"
    • Lock Ring Size: 3.220"
    • Lock Ring Type: External
    • Lubrication Method: Grease Fitting in Cross
    • UPC: 083286501539
    • Part Description: GMC S15 Jimmy Grade Performance™ Rear U-Joint
    More Info
    $12.45
  • National Driveshaft Center Support Bearing for GMC S15 Jimmy - 207

    National® Driveshaft Center Support Bearing for GMC S15 Jimmy

    PartNumber: 207
    Product Specifications
    • Bore (Inch): 1.378
    • Bore (mm): 35.00
    • Design: Single Row Radial
    • Inner Race Bore (Inch): 1.378
    • Inner Race Bore (mm): 35.00
    • Inner Race Radius (Inch): 0.040
    • Inner Race Radius (mm): 1.020
    • Inner Race Width (Inch): 0.669
    • Inner Race Width (mm): 17.00
    • Outer Race Outside Diameter (Inch): 2.835
    • Outer Race Outside Diameter (mm): 72.00
    • Outer Race Radius (Inch): 0.040
    • Outer Race Radius (mm): 1.020
    • Outer Race Width (Inch): 0.669
    • Outer Race Width (mm): 17.00
    • Outside Diameter (Inch): 2.835
    • Outside Diameter (mm): 72.00
    • Series: 200
    • Type: A-1
    • Width (Inch): 0.669
    • Width (mm): 17.00
    • Part Description: GMC S15 Jimmy Driveshaft Center Support Bearing
    More Info
    $21.32
  • National Rear Inner Differential Pinion Race for GMC S15 Jimmy - HM89210

    National® Rear Inner Differential Pinion Race for GMC S15 Jimmy

    PartNumber: HM89210
    Product Specifications
    • Part Description: GMC S15 Jimmy Rear Inner Differential Pinion Race
    $12.68
  • OEM GMC S15 Jimmy Axle Seal Diagram - 14039577
    View Related Parts

    OEM (Genuine) GMC S15 Jimmy Axle Seal

    PartNumber: 14039577
    OEM GMC S15 Jimmy Axle Seal - 14039577
    Product Specifications
    • Other Names: Axle Seal, Seal
    • Item Dimensions: 2.9 x 2.9 x 0.6 inches
    • Item Weight: 0.50 Pounds
    • Fitment Type: Direct Replacement
    • Part Description: GMC S15 Jimmy Axle Seal
    More Info
    $1.07 MSRP: $1.75
    You Save: $0.68 (39%)
  • Dorman OE Solutions Differential Cover for GMC S15 Jimmy - 697-701

    Dorman® OE Solutions Differential Cover for GMC S15 Jimmy

    PartNumber: 697-701
    Product Specifications
    • Color/Finish: Gray
    • Differential Cover Bolt Count: 10
    • Differential Cover Bolts/Studs Included: No
    • Differential Cover Carrier Main Cap Support: No
    • Differential Cover/Case Filler Plug Included: No
    • Differential Cover/Case Material: Low Carbon Steel
    • Gasket Material: Not Applicable
    • Gasket or Seal Included: No
    • OE Part Number: 12471370
    • UPC: 019495114963
    • Part Description: GMC S15 Jimmy OE Solutions Differential Cover
    More Info
    $19.03
  • GMB Grade Performance™ Rear U-Joint for GMC S15 Jimmy - 215-3105

    GMB® Grade Performance™ Rear U-Joint for GMC S15 Jimmy

    PartNumber: 215-3105
    Product Specifications
    • Bearing Cap Diameter: 1.125"
    • Lock Ring Type: Internal
    • Lubrication Method: Grease Fitting in Cross
    • UPC: 083286531055
    • Part Description: GMC S15 Jimmy Grade Performance™ Rear U-Joint
    More Info
    $12.45
  • SKF Front Driver Side Axle Shaft Bearing Assembly for GMC S15 Jimmy - R1563

    SKF® Front Driver Side Axle Shaft Bearing Assembly for GMC S15 Jimmy

    PartNumber: R1563
    Product Specifications
    • Inside Diameter: 1.399"
    • Outside Diameter: 2.294"
    • UPC: 085311066280
    • Width: 1.211"
    • Part Description: GMC S15 Jimmy Front Driver Side Axle Shaft Bearing Assembly
    More Info
    $27.15
  • National Differential Bearing for GMC S15 Jimmy - LM501349

    National® Differential Bearing for GMC S15 Jimmy

    PartNumber: LM501349
    Product Specifications
    • Part Description: GMC S15 Jimmy Differential Bearing
    $11.99
  • SKF Driveshaft Center Support Bearing for GMC S15 Jimmy - BR88107

    SKF® Driveshaft Center Support Bearing for GMC S15 Jimmy

    PartNumber: BR88107
    Product Specifications
    • Inside Diameter: 1.378"
    • Outside Diameter: 2.834"
    • UPC: 085311067119
    • Width: 0.984"
    • Part Description: GMC S15 Jimmy Driveshaft Center Support Bearing
    More Info
    $26.39
  • OEM GMC S15 Jimmy Outer Pinion Bearing Diagram - 9417784
    View Related Parts

    OEM (Genuine) GMC S15 Jimmy Outer Pinion Bearing

    PartNumber: 9417784
    OEM GMC S15 Jimmy Outer Pinion Bearing - 9417784
    Product Specifications
    • Item Dimensions: 3.0 x 3.0 x 1.1 inches
    • Item Weight: 1.00 Pounds
    • Fitment Type: Direct Replacement
    • Part Description: GMC S15 Jimmy Outer Pinion Bearing
    More Info
    $36.11 MSRP: $68.16
    You Save: $32.05 (48%)
  • OEM GMC S15 Jimmy Outer Pinion Bearing Diagram - 9417784
    View Related Parts

    OEM (Genuine) GMC S15 Jimmy Outer Pinion Bearing

    PartNumber: 9417784
    OEM GMC S15 Jimmy Outer Pinion Bearing - 9417784
    Product Specifications
    • Item Dimensions: 3.0 x 3.0 x 1.1 inches
    • Item Weight: 1.00 Pounds
    • Fitment Type: Direct Replacement
    • Part Description: GMC S15 Jimmy Outer Pinion Bearing
    More Info
    $36.11 MSRP: $68.16
    You Save: $32.05 (48%)
  • GMB Spicer 1310 Series Grade Standard U-Joint for GMC S15 Jimmy - 210-0153

    GMB® Spicer 1310 Series Grade Standard U-Joint for GMC S15 Jimmy

    PartNumber: 210-0153
    Product Specifications
    • Bearing Cap Axis 1 Diameter: 1.06
    • Bearing Cap Axis 2 Diameter: 1.06
    • Bearing Cap Type: Plain
    • Dimension: 1.063" Cap Diameter
    • Greasable: Yes
    • Height (Inch): 1.30
    • Length (Inch): 3.50
    • Length Axis 1: 3.22
    • Length Axis 2: 3.22
    • Lock Ring Location: External
    • Lube Fitting Location: Grease Fitting in Cross
    • Material: Steel With Black Oxide Coating
    • Mounting Hardware Included: Yes
    • Style: 4 Round Plain Bearings
    • UPC: 826732164021
    • Weight (Gross Pounds): 1.10
    • Width: 3.218" Overall Axis
    • Width (Inch): 3.50
    • Part Description: GMC S15 Jimmy Spicer 1310 Series Grade Standard U-Joint
    More Info
    $9.24
  • GMB Universal Joint Strap Kit for GMC S15 Jimmy - 260-0153

    GMB® Universal Joint Strap Kit for GMC S15 Jimmy

    PartNumber: 260-0153
    Product Specifications
    • Bolt Length: 5/16-24"
    • Height (Inch): 1.30
    • Length (Inch): 3.50
    • UPC: 031447983038
    • Width (Inch): 3.50
    • Part Description: GMC S15 Jimmy Universal Joint Strap Kit
    More Info
    $5.65
  • National Differential Carrier Race for GMC S15 Jimmy - LM501314

    National® Differential Carrier Race for GMC S15 Jimmy

    PartNumber: LM501314
    Product Specifications
    • Part Description: GMC S15 Jimmy Differential Carrier Race
    $6.03
  • SKF Front Axle Shaft Bearing Kit for GMC S15 Jimmy - BR91

    SKF® Front Axle Shaft Bearing Kit for GMC S15 Jimmy

    PartNumber: BR91
    Product Specifications
    • Cone ID: 1.496"
    • Outside Diameter: 2.480"
    • UPC: 085311259125
    • Width: 0.669"
    • Part Description: GMC S15 Jimmy Front Axle Shaft Bearing Kit
    More Info
    $17.31
  • GMB Universal Joint Strap Kit for GMC S15 Jimmy - 260-4105

    GMB® Universal Joint Strap Kit for GMC S15 Jimmy

    PartNumber: 260-4105
    Product Specifications
    • Height (Inch): 1.30
    • Length (Inch): 3.50
    • UPC: 031447984073
    • Width (Inch): 3.50
    • Part Description: GMC S15 Jimmy Universal Joint Strap Kit
    More Info
    $5.01
  • OEM GMC S15 Jimmy Upper Bushing Diagram - 14073311
    View Related Parts

    OEM (Genuine) GMC S15 Jimmy Upper Bushing

    PartNumber: 14073311
    OEM GMC S15 Jimmy Upper Bushing - 14073311
    Product Specifications
    • Other Names: Bushing, Upper Bushing, Upper Control Arm Bushing
    • Item Dimensions: 3.2 x 2.2 x 2.2 inches
    • Item Weight: 0.60 Pounds
    • Fitment Type: Direct Replacement
    • Part Description: GMC S15 Jimmy Upper Bushing
    More Info
    $17.93 MSRP: $29.66
    You Save: $11.73 (40%)
1-30 of 185 Results
< Previous
12345
Next >

Browse GMC S15 Jimmy Driveline, Axles & 4WD by Years

1991 1990 1989 1988 1987 1986 1985 1984
