17 products about 2013 Audi A3 Wheel Hubs, Bearings, Seals & Components found
Product Specifications- Bolt Circle Diameter A: 4.4094"
- Bolt Circle Diameter B: 4.2125"
- Bolt Hole Size: M12x1.5
- Bolt Size: M14x1.5
- Flange Diameter: 5.3740"
- Flange Offset: 1.8897"
- Inner Diameter: 1.0039"
- Number of Bolts: 5
- Number of Holes: 5
- Number of Splines: 36
- Sensor Ring: Yes
- UPC: 085311446723
- Wheel Pilot Diameter: 2.2440"

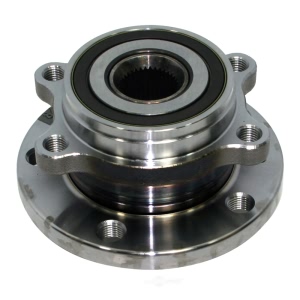

- Part Description: 2013 Audi A3 Front Passenger Side Wheel Bearing And Hub Assembly
More Info Vehicle Fitment- 2013 Audi A3 | All Trims | All Engines
Product Specifications- Notes: Grade: Aftermarket; Description: For vehicles with ABS
- Braking / Drive Dynamics: for vehicles with ABS
- Fastening Type: Four-point mounting
- Inner diameter [mm]: 29
- Inner diameter 2 [mm]: 51
- Number of mounting bores: 4
- Outer diameter [mm]: 136,5
- Outer diameter 2 [mm]: 81
- Packaging Depth [cm]: 13
- Packaging height [cm]: 13,2
- Packaging width [cm]: 12
- Quantity per Axle: 2
- Rim Hole Number: 5
- Supplementary Article/Info 2: with integrated magnetic sensor ring
- Weight [kg]: 3,7909
- Width [mm]: 83
- Width 2 [mm]: 48
- Part Description: 2013 Audi A3 Front Driver or Passenger Side Wheel Bearing and Hub Assembly
More Info Vehicle Fitment- 2013 Audi A3 | Base | 4 Cyl 2.0L
- 2013 Audi A3 | TDI | All Engines
Product Specifications- Notes: FAG Global# 805657A; 4 Hole Mounting Flange
- Hub Flange Mount Hole Quantity: 4
- Number of Bolt Holes: 4
- Number of Hub Bolts: 5
- UPC: 670774143151
- Part Description: 2013 Audi A3 Front Wheel Bearing and Hub Assembly
More Info Vehicle Fitment- 2013 Audi A3 | All Trims | All Engines
Product Specifications- Notes: w/4 Hole Flange; Wheel Hub Assy; Axle Nut Torque Spec: Refer to OE Service Manual
- Flange Diameter (Inch): 5.385
- Gasket or Seal Included: Yes
- Greaseable: No
- Hub Pilot Diameter (Inch): 3.346
- Material: Steel
- Product Condition: New
- Spline Quantity: 36
- Stud Quantity: 5
- UPC: 029175924164
- Wheel Stud Size MM: M14 x 1.5
- Wiring Harness Included: No
- Part Description: 2013 Audi A3 WHEEL BEARING AND HUB ASSEMBLY
More Info Vehicle Fitment- 2013 Audi A3 | All Trims | 4 Cyl 2.0L
- 2013 Audi A3 | All Trims | 4 Cyl 1.4L
- 2013 Audi A3 | All Trims | 4 Cyl 1.8L
Show More Product Specifications- Cone Bore (Inch): 1.8110
- Cone Bore (mm): 45.9990
- Cone Length (Inch): 0.7087
- Cone Length (mm): 18.0010
- Part Description: 2013 Audi A3 Rear Driver Side Outer Wheel Bearing
More Info Vehicle Fitment- 2013 Audi A3 | All Trims | All Engines
Product Specifications- Bolt Circle Diameter A: 4.4090"
- Flange Diameter: 5.3540"
- Inner Diameter: 1.1811"
- Number of Bolts: 5
- Sensor Ring: Yes
- UPC: 085311457347
- Wheel Pilot Diameter: 2.2440"
- Part Description: 2013 Audi A3 Rear Driver Side Wheel Hub
More Info Vehicle Fitment- 2013 Audi A3 | All Trims | All Engines
Product Specifications- Notes: Grade: Aftermarket; Description: For vehicles with ABS
- Braking / Drive Dynamics: for vehicles with ABS
- Diameter [mm]: 136,5
- Height [mm]: 68
- Inner diameter [mm]: 30
- Outer diameter [mm]: 136,5
- Packaging Depth [cm]: 13
- Packaging height [cm]: 13,2
- Packaging width [cm]: 12
- Quantity per Axle: 2
- Rim Hole Number: 5
- Supplementary Article/Info 2: with integrated magnetic sensor ring
- Weight [kg]: 2,2619
- Width [mm]: 68
- Part Description: 2013 Audi A3 Rear Driver or Passenger Side Wheel Bearing and Hub Assembly
More Info Vehicle Fitment- 2013 Audi A3 | Base | 4 Cyl 2.0L
- 2013 Audi A3 | TDI | All Engines
Product Specifications- Notes: Wheel Hub Assy; Axle Nut Torque Spec: Refer to OE Service Manual
- Flange Diameter (Inch): 5.373
- Gasket or Seal Included: Yes
- Greaseable: No
- Hub Pilot Diameter (Inch): 3.131
- Material: Steel
- Product Condition: New
- Stud Quantity: 5
- UPC: 029175926410
- Wheel Stud Size MM: M14 x 1.5
- Wiring Harness Included: No
- Part Description: 2013 Audi A3 WHEEL BEARING AND HUB ASSEMBLY
More Info Vehicle Fitment- 2013 Audi A3 | All Trims | 4 Cyl 2.0L
- 2013 Audi A3 | All Trims | 4 Cyl 1.4L
- 2013 Audi A3 | All Trims | 4 Cyl 1.8L
Show More Product Specifications- Notes: w/VW 02Q Trans
- Part Description: 2013 Audi A3 Rear Passenger Side Outer Wheel Bearing
Vehicle Fitment- 2013 Audi A3 | All Trims | All Engines
Product Specifications- Notes: w/VW 02Q Trans
- Cup Bore (Inch): 2.5625
- Cup Bore (mm): 65.0880
- Cup Length (Inch): 0.5500
- Cup Length (mm): 13.9700
- Cup Radius (Inch): 0.0460
- Cup Radius (mm): 1.1680
- Part Description: 2013 Audi A3 Rear Inner Tapered Wheel Bearing Race
More Info Vehicle Fitment- 2013 Audi A3 | All Trims | All Engines
Product Specifications- Notes: Taper Bearing Set Incls Cup & Cone
- Part Description: 2013 Audi A3 Rear Passenger Side Inner Wheel Bearing and Race Set
Vehicle Fitment- 2013 Audi A3 | All Trims | All Engines
Product Specifications- Notes: 4 Bolt Mount
- UPC: 805890562764
- Part Description: 2013 Audi A3 Premium™ Rear Passenger Side Wheel Bearing and Hub Assembly
More Info Vehicle Fitment- 2013 Audi A3 | All Trims | All Engines
Product Specifications- Notes: 3 Bolt Mount
- UPC: 805890562771
- Part Description: 2013 Audi A3 Premium™ Front Driver Side Wheel Bearing and Hub Assembly
More Info Vehicle Fitment- 2013 Audi A3 | All Trims | All Engines
Product Specifications- Notes: FAG Global# 713 6109 600
- Kit Contents: 2 Bolts, 2 Hub Assemblies, 2 Additional Accessories
- UPC: 670774379055
- Part Description: 2013 Audi A3 Rear Wheel Bearing Kit
More Info Vehicle Fitment- 2013 Audi A3 | All Trims | All Engines
Product Specifications- Notes: 32mm ID
- UPC: 805890565161
- Part Description: 2013 Audi A3 Premium™ Rear Driver Side Wheel Bearing and Hub Assembly
More Info Vehicle Fitment- 2013 Audi A3 | All Trims | All Engines
Product Specifications- Part Description: 2013 Audi A3 Rear Outer Wheel Bearing Race
Vehicle Fitment- 2013 Audi A3 | All Trims | All Engines
Product Specifications- Notes: 30mm ID
- UPC: 805890565178
- Part Description: 2013 Audi A3 Premium™ Rear Driver Side Wheel Bearing and Hub Assembly
More Info Vehicle Fitment- 2013 Audi A3 | All Trims | All Engines
