Other Names: Cap, Filler Cap, Filler Cap Retainer, Fuel Cap
Item Dimensions: 8.3 x 8.4 x 6.7 inches
Item Weight: 1.10 Pounds
Fitment Type: Direct Replacement
Replaces: 31010-3L500
Part Description: 2011 Hyundai Sonata Fuel Filler Cap Assembly
More Info
Vehicle Fitment
2011 Hyundai Sonata | Eco, GL, GLS, Hybrid, Hybrid Limited, Hybrid SE, Limited, Limited 2.0T, LX, N Line, SE, SEL, SEL Plus, Sport, Sport 2.0T | 4 Cyl 1.6 L GAS, 4 Cyl 2.0 L ELECTRIC/GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L ELECTRIC/GAS, 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.3 L GAS
Other Names: Cap, Filler Cap, Filler Cap Retainer, Fuel Cap
Item Dimensions: 8.3 x 8.4 x 6.7 inches
Item Weight: 1.10 Pounds
Fitment Type: Direct Replacement
Replaces: 31010-3L500
Part Description: 2011 Hyundai Sonata Fuel Filler Cap Assembly
More Info
Vehicle Fitment
2011 Hyundai Sonata | Eco, GL, GLS, Hybrid, Hybrid Limited, Hybrid SE, Limited, Limited 2.0T, LX, N Line, SE, SEL, SEL Plus, Sport, Sport 2.0T | 4 Cyl 1.6 L GAS, 4 Cyl 2.0 L ELECTRIC/GAS, 4 Cyl 2.0 L GAS, 4 Cyl 2.4 L ELECTRIC/GAS, 4 Cyl 2.4 L GAS, 4 Cyl 2.5 L GAS, 6 Cyl 3.3 L GAS
Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 10
Flow Rating: 70 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: No
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Lock Ring Included: No
Maximum Pressure: 95.0 PSI
Outlet Outside Diameter: 0.313''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty: 200.0
Resistance Ohms Full: 8.0
Strainer Included: Yes
System Pressure: 73 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604241417
Vapor Pressure Sensor: Yes
Voltage: 12.0 VDC

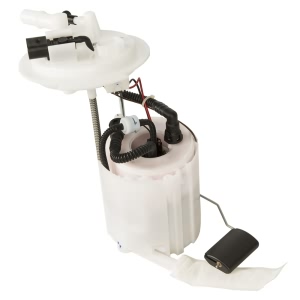

Part Description: 2011 Hyundai Sonata Fuel Pump Module Assembly
Notes: From 08/21/2010;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 8
Flow Rating: 31 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: No
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Lock Ring Included: No
Maximum Pressure: 75.0 PSI
Outlet Outside Diameter: 0.313''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty: 200.0
Resistance Ohms Full: 8.0
Strainer Included: Yes
System Pressure: 65 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604241240
Vapor Pressure Sensor: Yes
Voltage: 12.0 VDC
Part Description: 2011 Hyundai Sonata Fuel Pump Module Assembly
Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Notes: To 08/21/2010;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 9
Flow Rating: 55 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: External
Item Grade: Standard Replacement
Maximum Pressure: 109.0 PSI
Outlet Outside Diameter: 0.313''
Outlet Quantity: 2
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 200.0
Resistance Ohms Full: 8.0
Strainer Included: Yes
System Pressure: 73 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604232521
Vapor Pressure Sensor: Yes
Voltage: 12.0 VDC
Part Description: 2011 Hyundai Sonata Fuel Pump Module Assembly
