Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1527 |

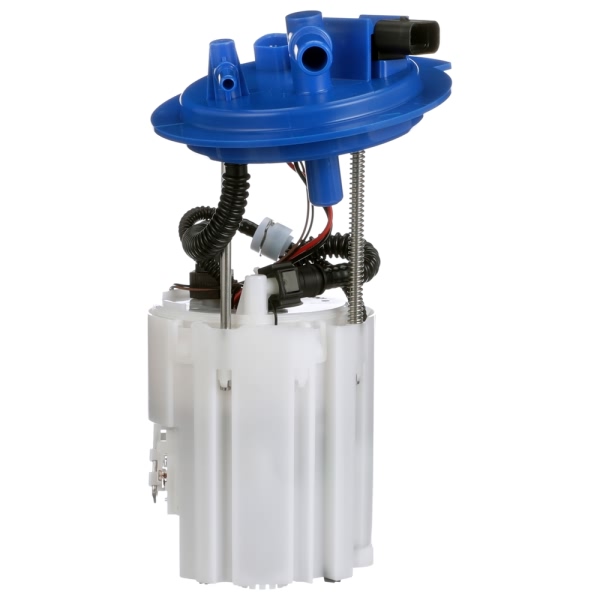

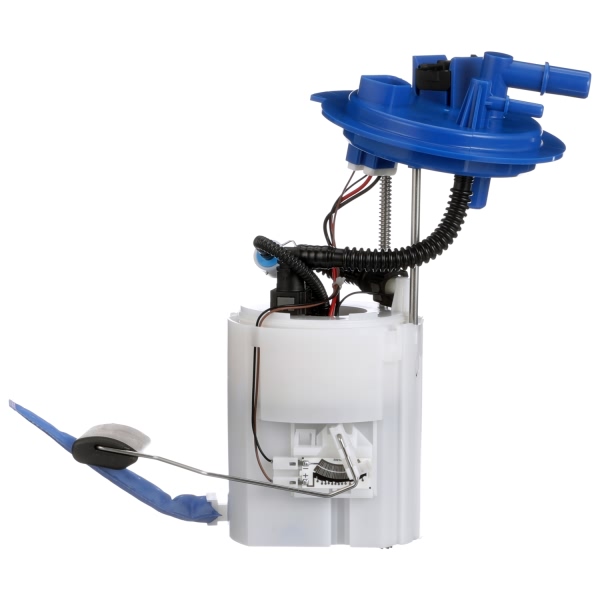

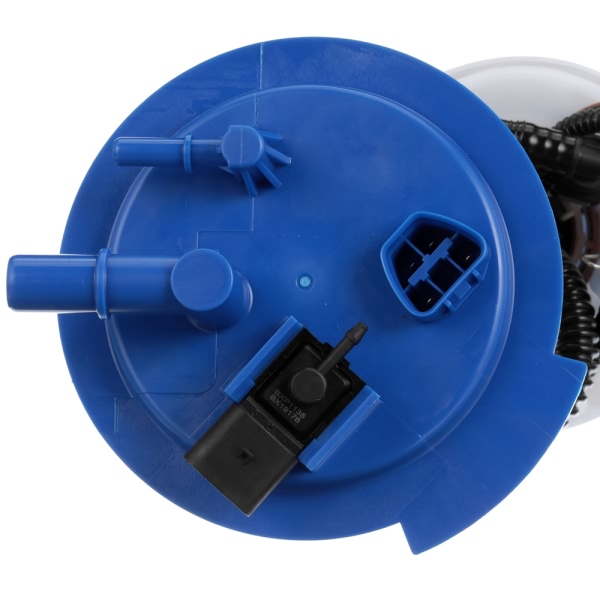

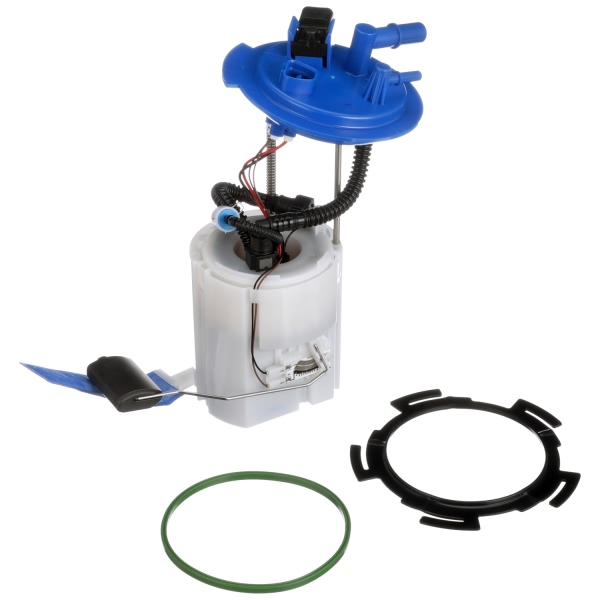

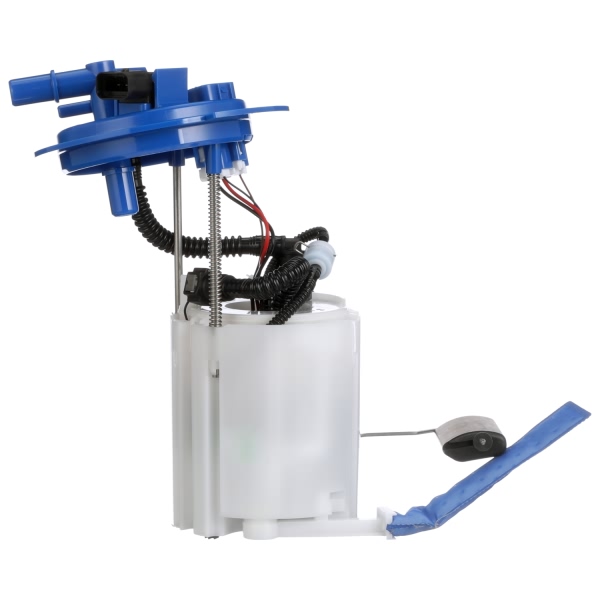

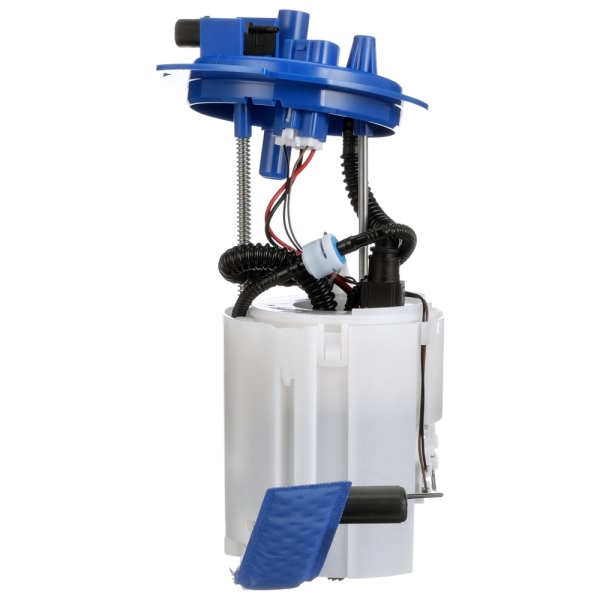

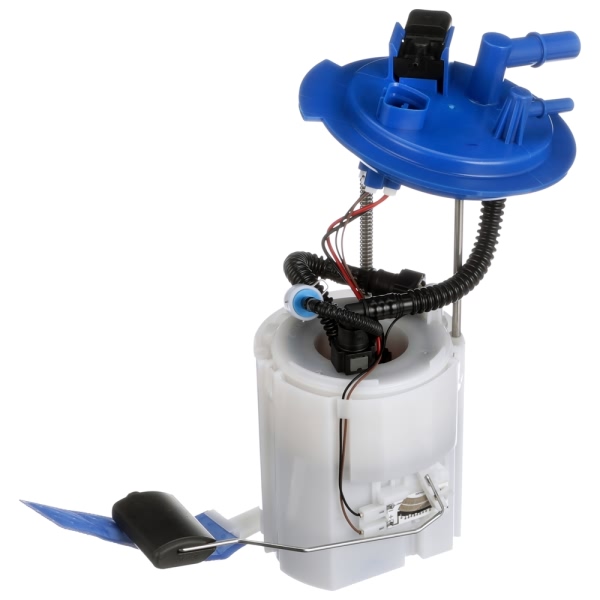

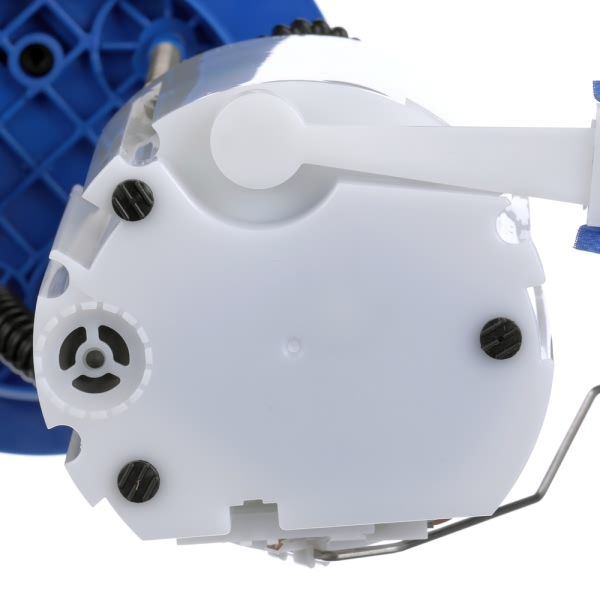

Part Description | Fuel Pump Module Assembly |
Current Draw | 8 |
Flow Rating | 31 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | External |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Maximum Pressure | 75.0 PSI |
Outlet Outside Diameter | 0.313'' |
Outlet Quantity | 2 |
Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 200.0 |
Resistance Ohms Full | 8.0 |
Strainer Included | Yes |
System Pressure | 65 psi |
Terminal Gender | Male |

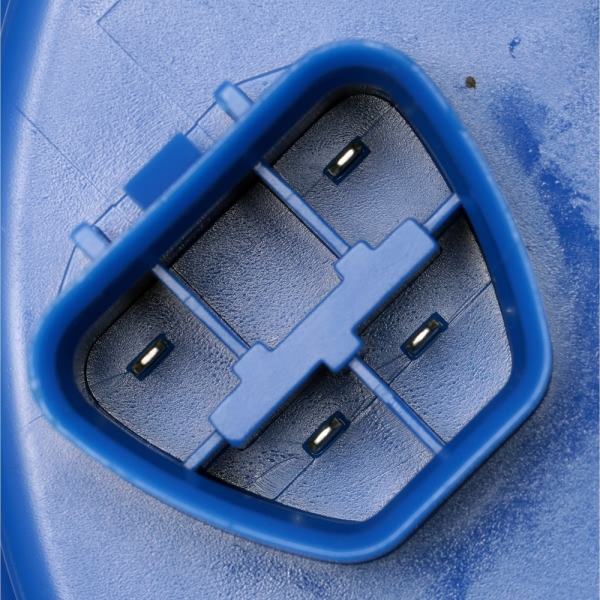

Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604241240 |

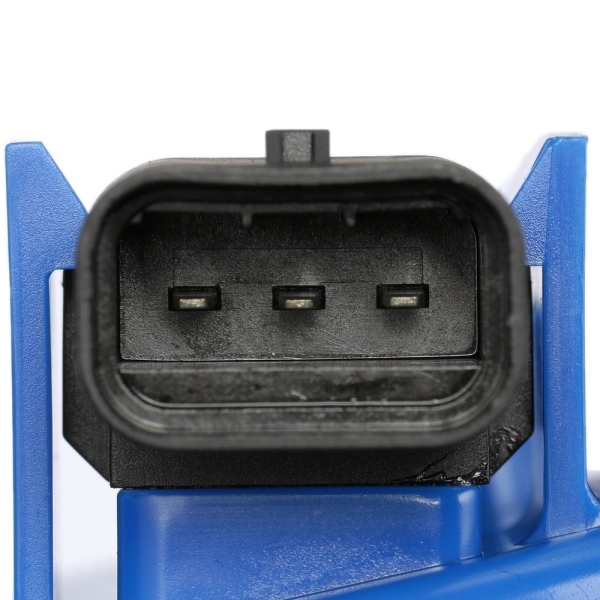

Vapor Pressure Sensor | Yes |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2011-2014 Hyundai Sonata | All Trims | 4 Cyl 2.4L |
2012 Kia Optima | EX | 4 Cyl 2.4L |
2012 Kia Optima | LX | 4 Cyl 2.4L |
2013-2014 Kia Optima | All Trims | 4 Cyl 2.4L |
