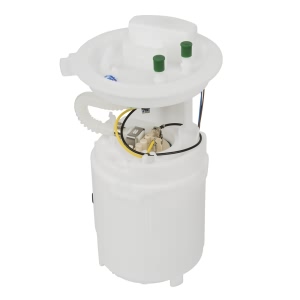

Delphi® Fuel Pump Module Assembly for 2006 Volkswagen Rabbit
PartNumber: FG0973Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 8
- Flow Rating: 23 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 80.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 292.0
- Resistance Ohms Full: 52.0
- Strainer Included: Yes
- System Pressure: 62 psi
- Terminal Gender: Male
- Terminal Quantity: 5
- Terminal Type: Pin
- UPC: 689604214138
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: Fuel Pump Module Assembly
$258.14
WIX® Complete In Line Fuel Filter for 2006 Volkswagen Rabbit
PartNumber: 33833Product Specifications- Notes: Original Equipment Part Number 6Q0 201 051 A
- Class: C
- Duty Type: LD
- Height: 6.468''
- Inlet: 5/16''
- Inner Diameter Top: Closed
- MediaType: Cellulose
- Micron: 4.00 Micron
- Outer Diameter Bottom: 2.155''
- Outer Diameter Top: 2.409''
- Outlet: 5/16''
- Style: Fuel (Complete In-Line) Filter
- UPC: 765809338333
- Vapor: 5/16
- Part Description: Complete In Line Fuel Filter
$42.14
Spectra Premium® Fuel Pump Tank Seal for 2006 Volkswagen Rabbit
PartNumber: LO191Product Specifications- Notes: Fuel Pump Seal
- Inside Diameter: 4-1/2
- Material: Polymer
- Outside Diameter: 5-3/8
- UPC: 671607120745
- Part Description: Fuel Pump Tank Seal
$23.79
Autobest® Fuel Pump Module Assembly for 2006 Volkswagen Rabbit
PartNumber: F4682AProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir and Fuel Strainer
- Average Current Draw(A): 7
- Average Flow Rating(GPH): 39.6
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Racetrack
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: No
- Gasket Or Seal Material: FKM
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 130.5
- Minimum Pump Pressure (PSI): 87
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 5/16
- Outlet Type: Quick Connect
- Product Height (in): 7.24
- Product Length (in): 9.8
- Product Width (in): 7.6
- Pump Type: Turbine
- Regulator Included: No
- Resistance Ohms Empty: 52
- Resistance Ohms Full: 293
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 5
- Terminal Type: PIN
- UPC: 00072845146823
- Voltage: 12V
- Weight (lbs): 2.27
- Part Description: Fuel Pump Module Assembly
$90.07
Hengst® Fuel Filter for 2006 Volkswagen Rabbit
PartNumber: H280WKProduct Specifications- Notes: Incls Fuel Pressure Reg; Maximum Pressure (metric): 4 Bar
- Remanufactured: N
- UPC: 884109249061
- Part Description: Fuel Filter
$25.64
Gates® Replacement Non Locking Fuel Tank Cap for 2006 Volkswagen Rabbit
PartNumber: 31613Product Specifications- Notes: W/Threaded Filler Neck
- Cam Type: Threaded
- Cap Depth: 2.05"
- Locking: No
- Neck Diameter: 1.77"
- Shell Diameter: 2.78"
- Type: OE Equivalent Fuel Cap
- UPC: 072053020601
- Venting: Pressure Relief
- Part Description: Replacement Non Locking Fuel Tank Cap
$11.09
Hengst® Fuel Filter for 2006 Volkswagen Rabbit
PartNumber: H155WK02Product Specifications- Notes: Does Not Incl Fuel Pressure Reg; Maximum Pressure (metric): 6.4 Bar
- Remanufactured: N
- UPC: 884109502340
- Part Description: Fuel Filter
$22.65
Gates® Locking Fuel Tank Cap for 2006 Volkswagen Rabbit
PartNumber: 31708Product Specifications- Notes: W/Threaded Filler Neck
- Cam Type: Threaded
- Cap Depth: 2.61"
- Locking: Yes
- Neck Diameter: 1.77"
- Shell Diameter: 2.91"
- Type: Regular Fuel Cap
- UPC: 072053021066
- Venting: Pressure Relief
- Part Description: Locking Fuel Tank Cap
VAICO® Fuel Filter Seal for 2006 Volkswagen Rabbit
PartNumber: V10-2553Product Specifications- Notes: Grade: Aftermarket
- Diameter [mm]: 135
- Height [mm]: 15
- Packaging height [cm]: 1,5
- Packaging width [cm]: 13,5
- Seal Material: FPM (fluoride rubber)
- Weight [kg]: 0,0275
- Width [mm]: 135
- Part Description: Fuel Filter Seal
STANT® Regular Locking Fuel Cap for 2006 Volkswagen Rabbit
PartNumber: 10597Product Specifications- Notes: Color Black; W/Threaded Filler Neck
- Cam Type: Threaded
- Cap Depth: 2.61"
- Neck Diameter: 1.77"
- Shell Diameter: 2.91"
- UPC: 033342007970
- Venting: Pressure Relief
- Part Description: Regular Locking Fuel Cap
VEMO® Fuel Pump Module Assembly for 2006 Volkswagen Rabbit
PartNumber: V10-09-0852Product Specifications- Notes: Grade: OE; Description: 4 Bar
- Height [mm]: 150
- Length [mm]: 235
- Packaging Depth [cm]: 31,9
- Packaging height [cm]: 19
- Packaging width [cm]: 19,4
- Voltage [V]: 12
- Weight [kg]: 0,855
- Width [mm]: 150
- Part Description: Fuel Pump Module Assembly
STANT® Fuel Tank Cap for 2006 Volkswagen Rabbit
PartNumber: 10827Product Specifications- Notes: Color Black; W/Threaded Filler Neck
- Cam Type: Threaded
- Cap Depth: 2.05"
- Neck Diameter: 1.77"
- Shell Diameter: 2.78"
- UPC: 033342008274
- Venting: Pressure Relief
- Part Description: Fuel Tank Cap
STANT® Black Fuel Cap Tester Adapter for 2006 Volkswagen Rabbit
PartNumber: 12410Product Specifications- Notes: w/Threaded Filler Neck; Threaded; Threaded Adapter Connected to Tester
- Cam Type: Threaded
- Color: Black
- UPC: 033342062443
- Part Description: Black Fuel Cap Tester Adapter
STANT® Fuel Tank Cap for 2006 Volkswagen Rabbit
PartNumber: 17597Product Specifications- Notes: Color Black; W/Threaded Filler Neck
- Cap Depth: 2.625
- Color: Black
- Freight Class: 85
- Fuel Cap Venting: Pressure Relief
- Locking: Yes
- Material: Plastic
- Neck Diameter: 1.750
- Shell Diameter: 2.938
- Tether Included: No
- UPC: 333420179798
- Part Description: Fuel Tank Cap
