Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F4682A |

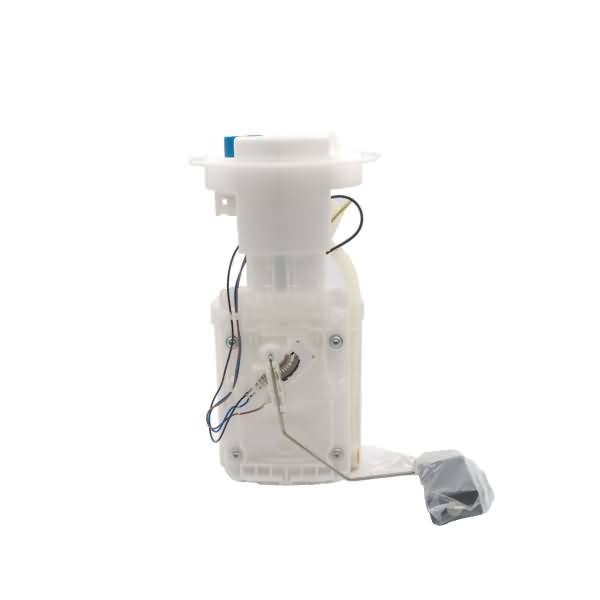

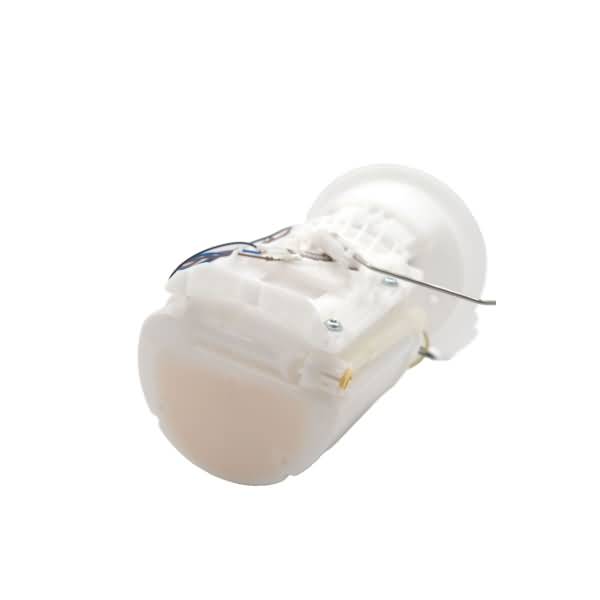

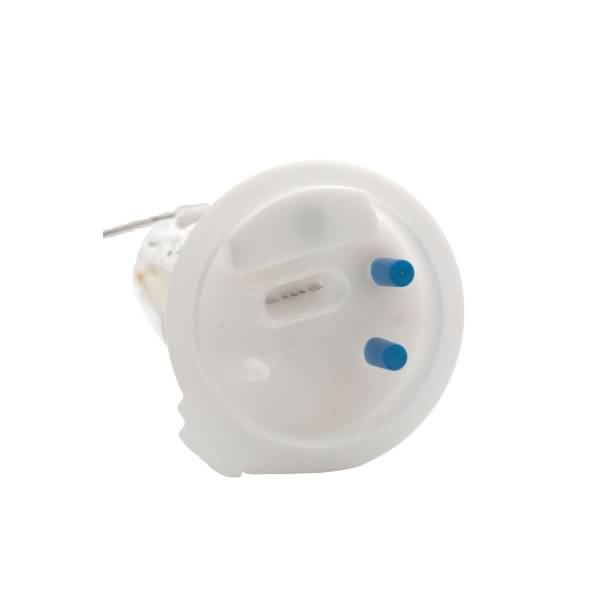

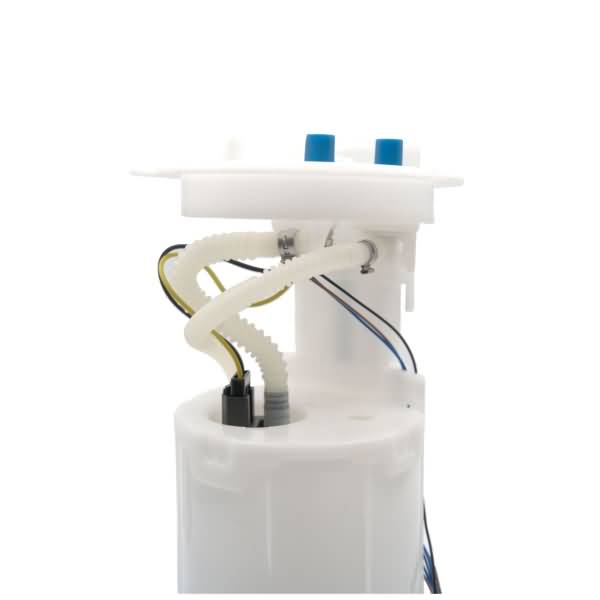

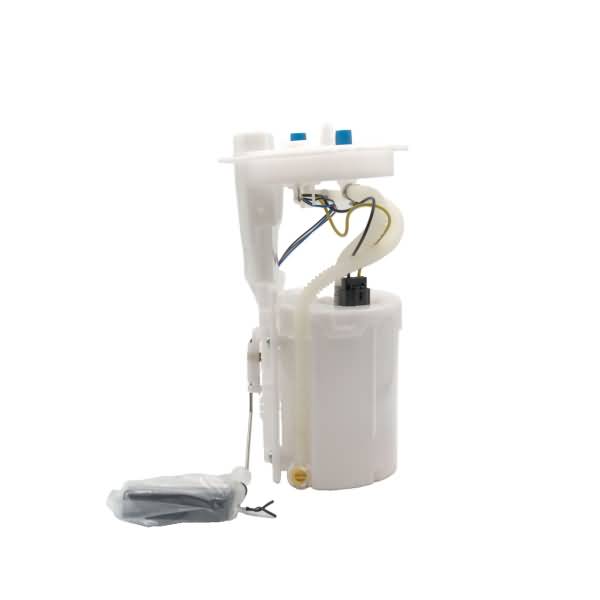

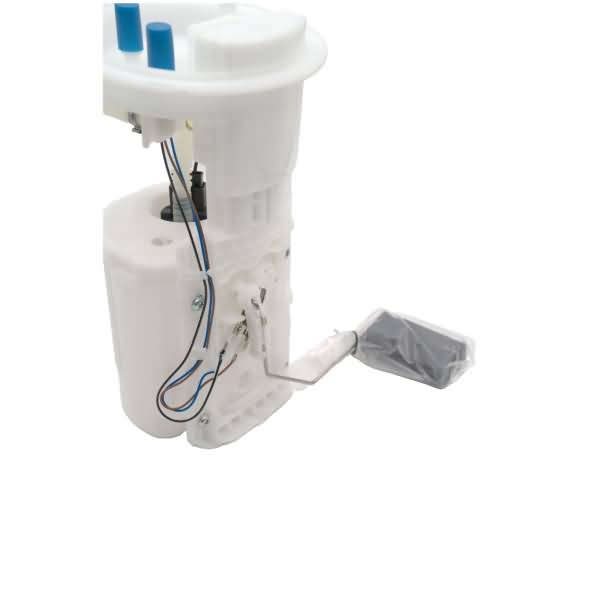

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 7 |
Average Flow Rating(GPH) | 39.6 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Racetrack |
Country of Orign | China |
Fuel Filter Included | No |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | No |
Gasket or Seal Included | No |
Gasket Or Seal Material | FKM |
Grade Type | Regular |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.433 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal Or External Strainer | Internal |
Lock Ring Included | No |
Maximum Pump Pressure (PSI) | 130.5 |
Minimum Pump Pressure (PSI) | 87 |
Mounting Hardware Included | No |
Negative Ground | No |
Outlet Quantity | 1 |
Outlet Size | 5/16 |
Outlet Type | Quick Connect |
Product Height (in) | 7.24 |
Product Length (in) | 9.8 |
Product Width (in) | 7.6 |
Pump Type | Turbine |
Regulator Included | No |
Resistance Ohms Empty | 52 |
Resistance Ohms Full | 293 |
Strainer Included | Yes |
Terminal Gender | Male |
Terminal Quantity | 5 |
Terminal Type | PIN |
UPC | 00072845146823 |
Voltage | 12V |
Weight (lbs) | 2.27 |
Year Make Model | Trim | Engine |
---|---|---|
2007-2008 Volkswagen Eos | All Trims | 6 Cyl 3.2L |
2005-2007 Volkswagen Jetta | All Trims | 5 Cyl 2.5L |
2006-2007 Volkswagen Rabbit | All Trims | 5 Cyl 2.5L |
