2004 Suzuki Vitara
Gates® Safety Stripe Hvac Heater Hose for 2004 Suzuki Vitara
PartNumber: 28408Product Specifications- Notes: Cut to Length, 14";Cut to Length, 12";Cut to Length, 22";Cut to Length, 10";Cut to Length, 9"
- Centerline Length (in): 600"
- Inside Diameter 1 (in): 0.3125"
- OE Part Number: 49692
- UPC: 072053133226
- Weight Per Length: 7.25 lbs./Carton
- Working Pressure (psi): 60
- Part Description: Safety Stripe Hvac Heater Hose
$36.97
Four Seasons® A C Compressor With Clutch for 2004 Suzuki Vitara
PartNumber: 58407Product Specifications- Notes: w/ SS10LV1 Compressor; New w/ Clutch
- Clutch Included: Yes
- Clutch Maximum Diameter: 4.250
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: Seiko Seiki
- Distance From Clutch To Mounting Flange: 1.6875
- Mounting Hardware: Not Included
- Mounting Type: Ear Mount
- New or Reman: New
- O-Ring A Number/Desc: [24681] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24661] / Green O-Ring
- O-Ring B Quantity: 1
- Pulley Belt Type: Serpentine
- Pulley Groove Quantity: 4
- Pulley Lip Diameter: 4.250
- Pulley Outside Diameter: 4.250
- Pulley Ridge Diameter: 4.250
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Switch Included: Heat Switch
- Terminal Type: Pin
- UPC: 096361584075
- Part Description: A C Compressor With Clutch
$272.25
Denso® A/C Receiver Drier for 2004 Suzuki Vitara
PartNumber: 478-1500Product Specifications- Notes: DENSO is the OE supplier for this vehicle; OE-specified O-rings Incld.
- Material: Cloth
- OE Part Number: 8847408010, 8847417010, 8847450020, 7812A125, 8847447010, 8847447020, 8847408030, 8847422010
- UPC: 042511093515
- Part Description: A/C Receiver Drier
$22.37
Gates® 90 Degree Engine Heater Molded Bypass Hose for 2004 Suzuki Vitara
PartNumber: 28461Product Specifications- Notes: Cut to fit
- Angle: 90
- Arm Length 1 (in): 4"
- Arm Length 2 (in): 12"
- Centerline Length (in): 16"
- Inside Diameter 1 (in): 0.5"
- OE Part Number: 9002
- UPC: 072053061956
- Part Description: 90 Degree Engine Heater Molded Bypass Hose
$11.21
Four Seasons® A C Evaporator Core for 2004 Suzuki Vitara
PartNumber: 54944Product Specifications- Core Depth Fraction: 2-5/16
- Core Depth MM: 58.737
- Core Height Fraction: 8-1/4
- Core Height MM: 215.900
- Core Width Fraction: 10-1/16
- Core Width MM: 254.000
- Depth: 2.3125
- Height: 8.250; 8.500
- Inlet Fitting Type: Block Fitting
- Material: Aluminum
- O-Ring A Number/Desc: [24661] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24681] / Green O-Ring
- O-Ring B Quantity: 1
- Outlet Fitting Type: Block Fitting
- UPC: 096361549449
- Width: 10.0625
- Part Description: A C Evaporator Core
$85.11
Four Seasons® Hvac Blower Motor With Wheel for 2004 Suzuki Vitara
PartNumber: 75087Product Specifications- Notes: w/ Wheel
- Cage Wheel Included: w/ Wheel
- Connector Gender: Female
- Connector qty: 1
- Flanged End: Yes
- Material: Plastic
- Motor Diameter: In Housing
- Mount Type: OE Mount
- New or Reman: New
- Number of Terminals: 2
- O.E. Replacement: Yes
- Rotation: CW
- Style: Flanged
- Terminal Type: 2 Spade Connector
- UPC: 096361076532
- Vented: Vented
- Voltage: 12
- Wheel Dia. IN: 5.875
- Part Description: Hvac Blower Motor With Wheel
$53.81
Gates® Hvac Heater Molded Hose for 2004 Suzuki Vitara
PartNumber: 18422Product Specifications- Notes: Cut to fit
- Centerline Length (in): 10.5"
- Inside Diameter 1 (in): 0.5"
- Number of Branches: 0
- UPC: 072053191226
- Part Description: Hvac Heater Molded Hose
$10.00
Four Seasons® Hvac Blower Motor Resistor for 2004 Suzuki Vitara
PartNumber: 20146Product Specifications- Connector Gender: Female
- Connector Shape: Rectangle
- Meets / Exceeds OEM: Yes
- Number of Terminals: 5
- Speed: Fixed # 3
- Terminal Type: Spade
- UPC: 096361201460
- Part Description: Hvac Blower Motor Resistor
$49.95
Gates® Engine Coolant Hose for 2004 Suzuki Vitara
PartNumber: 18011Product Specifications- Notes: Cut to fit
- Branch Quantity: 0
- Centerline Length (in): 15.6
- Centerline Length (mm): 396
- End 1 Inside Diameter: 0.25 in
- End 2 Inside Diameter: 0.25 in
- Material: EPDM
- Molded: Yes
- Number of Quick Connect Fittings: 0
- OE Part Number: 1786
- UPC: 072053178012
- Part Description: Engine Coolant Hose
$9.72
Four Seasons® Hvac Blower Motor Without Wheel for 2004 Suzuki Vitara
PartNumber: 35364Product Specifications- Notes: w/o Wheel
- Cage Wheel Included: w/o Wheel
- Connector Gender: Female
- Connector qty: 1
- Flanged End: Yes
- Material: Metal
- Motor Dia. MM: 82.550
- Motor Diameter: 3.250
- Motor Length: 4.000
- Motor Length MM: 101.600
- Mount Type: OE Mount
- New or Reman: New
- Number of Terminals: 2
- O.E. Replacement: Yes
- Rotation: CCW
- Shaft Diameter: 0.3125
- Shaft Length: 1.500
- Shaft Shape: Round
- Shaft Type: Round
- Style: Flanged
- Terminal Type: 2 Lead Wires w/ Connector
- UPC: 096361353640
- Vented: Vented
- Voltage: 12
- Wheel Dia. IN: Yes
- Part Description: Hvac Blower Motor Without Wheel
$38.67

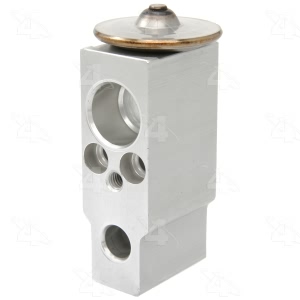

Four Seasons® A C Expansion Valve for 2004 Suzuki Vitara
PartNumber: 39020Product Specifications- Color: Aluminum
- Liquid Inlet Fitting Gender: Female
- Liquid Inlet Fitting Thread Diameter: No. 6
- Liquid Inlet Size IN: 0.390
- Liquid Inlet Size MM: 10.100
- Liquid Inlet Style: Captured O-Ring
- Liquid Inlet Type: Insert O-Ring
- Liquid Outlet Fitting Gender: Female
- Liquid Outlet Fitting Thread Diameter: No. 10; No. 8
- Liquid Outlet Style: Captured O-Ring
- Liquid Outlet Type: Insert O-Ring
- Lqd Out Size IN: 0.600
- Lqd Out Size MM: 15.400
- Material: Aluminum
- Meets / Exceeds OEM: Yes
- Mounting Hole Quantity: 2
- O-Ring A Number/Desc: [24606] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24608] / Green O-Ring
- O-Ring B Quantity: 1
- O-Ring C Number/Desc: [24610] / Green O-Ring
- O-Ring C Quantity: 2
- Refrigerant Type: R134A
- Style: w/o Solenoid
- Suc In Size IN: 0.710
- Suc In Size MM: 18.200
- Suc Out Size IN: 0.710
- Suc Out Size MM: 18.200
- Suction Inlet Fitting Gender: Female
- Suction Inlet Fitting Thread Diameter: No. 10; No. 12
- Suction Inlet Style: Captured O-Ring
- Suction Inlet Type: Insert O-Ring
- Suction Outlet Fitting Gender: Female
- Suction Outlet Fitting Thread Diameter: No. 10; No. 12
- Suction Outlet Style: Captured O-Ring
- Suction Outlet Type: Insert O-Ring
- Super Heat: 7.500
- Switch Included: Not Included
- Tonnage: 1.000
- UPC: 096361390201
- Part Description: A C Expansion Valve
$17.03
Four Seasons® A C System Valve Core And Cap Kit for 2004 Suzuki Vitara
PartNumber: 26783Product Specifications- Notes: Caps and Valve Core Seal Kit; w/ JRA Valves
- Cap Color: Red, Blue
- Cap Inside Diameter: Specific
- Cap Material: Plastic
- Material: Aluminum
- Refrigerant Type: R12, R134a
- Style: Cap & Valve Kit
- UPC: 096361267831
- Valve Core Material: Specific
- Part Description: A C System Valve Core And Cap Kit
$10.86
Four Seasons® A C System O Ring And Gasket Kit for 2004 Suzuki Vitara
PartNumber: 26834Product Specifications- Notes: O-Ring & Gasket Seal Kit; Factory Air
- Material: Green Rubber O-Rings
- Style: O-Ring & Gasket Kit
- UPC: 096361070738
- Part Description: A C System O Ring And Gasket Kit
$7.99
Dorman® A C Condenser Fan Assembly for 2004 Suzuki Vitara
PartNumber: 620-807Product Specifications- Connector Quantity: 1
- Connector Type: Male
- Fan Blade Material: Plastic
- Mount Type: Brushed
- OE Part Number: 9556067D11, 9556067D10, SZ3020105
- Package Contents: Fan Assembly
- Package Quantity: 1
- Packaging Type: Box
- Shroud Included: Yes
- Shroud Material: Plastic
- Terminal Quantity: 2
- UPC: 037495162302
- Part Description: A C Condenser Fan Assembly
Denso® A/C Expansion Valve for 2004 Suzuki Vitara
PartNumber: 475-0507Product Specifications- Notes: DENSO is the OE supplier for this vehicle; OE-specified O-rings Incld.
- UPC: 042511074774
- Part Description: A/C Expansion Valve
WIX® Cabin Air Filter for 2004 Suzuki Vitara
PartNumber: 24899Product Specifications- Filter Type: Particulate
- Height: 0.713" (18mm)
- Length: 8.9" (226mm)
- OE Part Number: 9586165D00, 19161779
- UPC: 765809248991
- Width: 4.325" (110mm)
- Part Description: Cabin Air Filter
Spectra Premium® A/C Condenser for 2004 Suzuki Vitara
PartNumber: 7-3033Product Specifications- Notes: (Condenser & Drier Assy); w/Suzuki AC System
- Color / Finish: Silver or Black
- Fitting 1 Gender: Female
- Fitting 2 Gender: Female
- Height: 13.25
- Installation Instructions Included: No
- Internet Product Code (IPC): 28F8BE636D6
- Item Grade: OEM Standard
- Item has MSDS (SDS): N
- Material: Aluminum
- MFG Brand Name: Spectra Premium
- MFG Model # (Series): 7-3033
- MFG Name: Spectra Premium Industries
- Package Contents: 1 x Condenser
- Product Condition: New
- Refrigerant Compatibility: All
- Supplier Company Name: Spectra Premium Industries
- UPC: 671607202410
- Part Description: A/C Condenser
Hastings® Cabin Air Filter for 2004 Suzuki Vitara
PartNumber: AFC1260Product Specifications- Pallet Layer Quantity: 108
- Part Description: Cabin Air Filter
Denso® A/C Condenser for 2004 Suzuki Vitara
PartNumber: 477-0610Product Specifications- Notes: DENSO is the OE supplier for this vehicle.
- Includes Drier: Yes
- Mounting Hardware Included: No
- New or Remanufactured: New
- UPC: 042511169838
- Part Description: A/C Condenser
