Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 58407 |

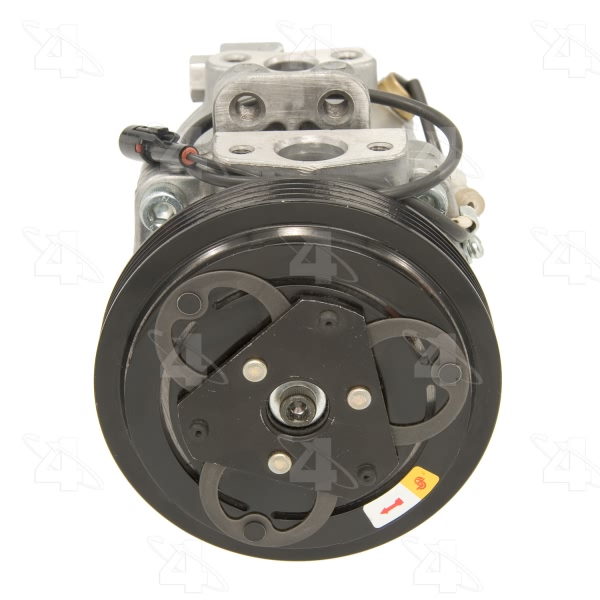

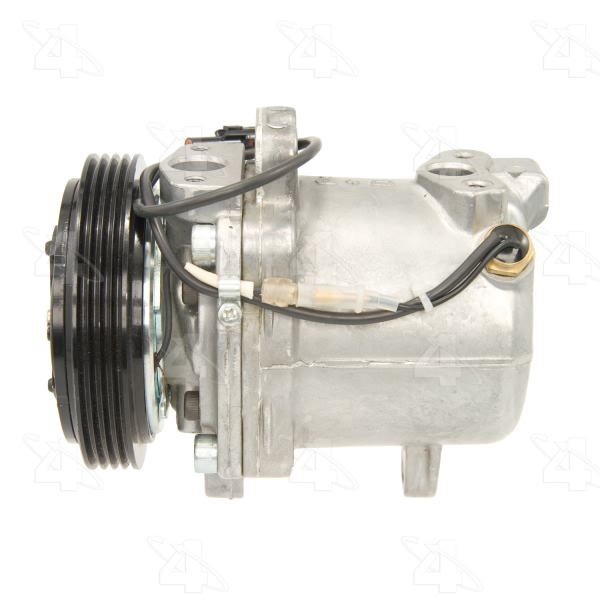

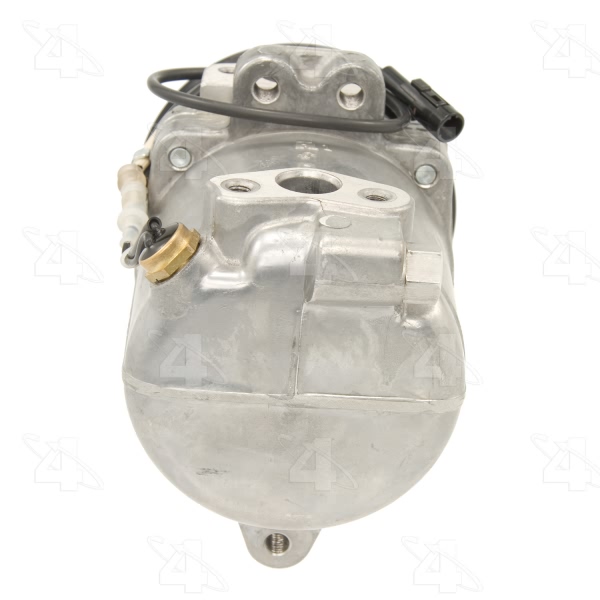

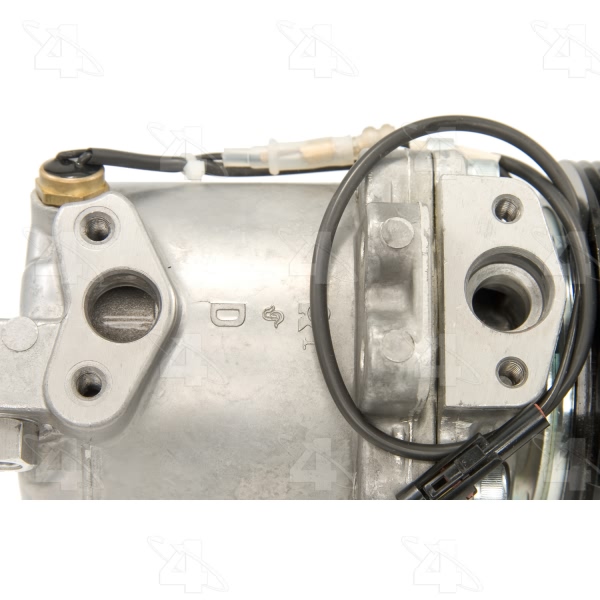

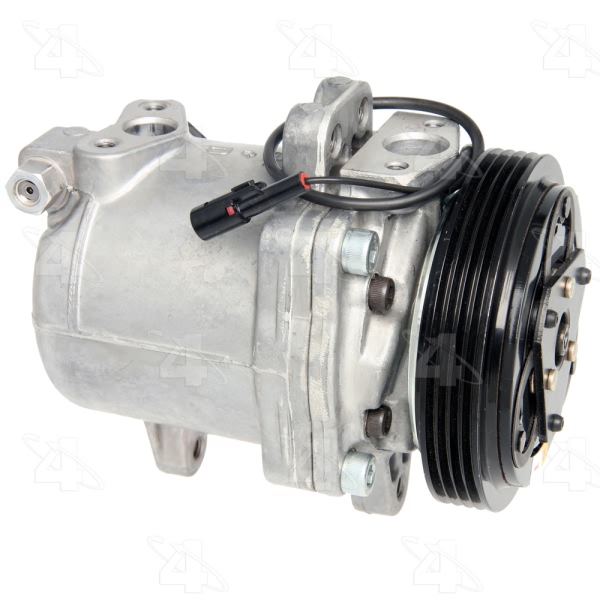

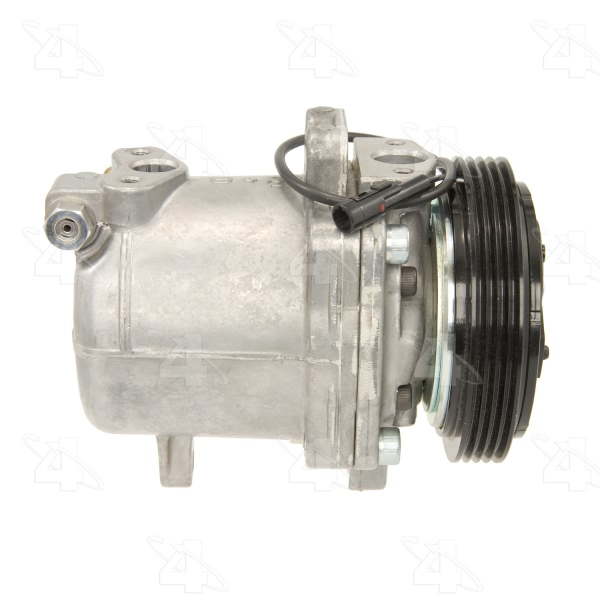

Part Description | A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 4.250 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Type | Seiko Seiki |
Distance From Clutch To Mounting Flange | 1.6875 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | New |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Groove Quantity | 4 |
Pulley Lip Diameter | 4.250 |
Pulley Outside Diameter | 4.250 |
Pulley Ridge Diameter | 4.250 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Switch Included | Heat Switch |

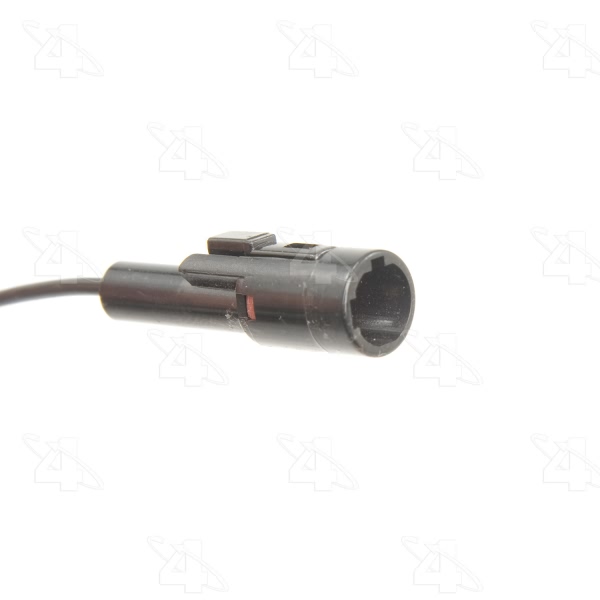

Terminal Type | Pin |
UPC | 096361584075 |
Year Make Model | Trim | Engine |
---|---|---|
1995-1998 Suzuki Esteem | All Trims | All Engines |
1999-2000 Suzuki Esteem | All Trims | 4 Cyl 1.6L |
1999-2000 Suzuki Grand Vitara | All Trims | All Engines |
2001 Suzuki Grand Vitara | All Trims | 6 Cyl 2.5L |
2002-2003 Suzuki Grand Vitara | All Trims | All Engines |
2004 Suzuki Vitara | All Trims | All Engines |
