Notes: 2 Fuel Pumps may be Required - 1 Externally Mounted & 1 Mounted In Tank;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 8
Flow Rating: 30 gph
Fuel Type: Gas
Gasket or Seal Included: No
In Tank or External: External
Inlet Fitting Thread Size: 3/4'' - 16
Inlet Type: Threaded
Item Grade: Standard Replacement
Maximum Pressure: 109.0 PSI
Outlet Fitting Thread Size: M14 - 1.5
Outlet Type: Threaded
Pump Type: Electric
Strainer Included: No
System Pressure: 44 psi
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Threaded
UPC: 689604033395
Voltage: 12 VDC
Wiring Harness Included: No

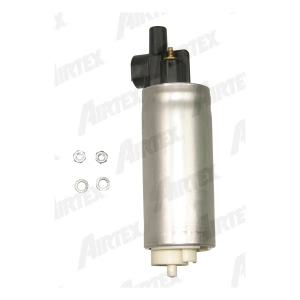

Part Description: 1992 Volvo 740 In Line Electric Fuel Pump
Notes: 2 Fuel Pumps may be Required - 1 Externally Mounted & 1 Mounted In Tank;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 2
Flow Rating: 28 gph
Fuel Type: Gas
Gasket or Seal Included: No
In Tank or External: In Tank
Inlet Type: Strainer
Item Grade: Standard Replacement
Maximum Pressure: 58.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Type: Hose
Pump Type: Electric
Strainer Included: No
System Pressure: 30 psi
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Threaded
UPC: 886931170308
Voltage: 12 VDC
Wiring Harness Included: No
Part Description: 1992 Volvo 740 In Tank Electric Fuel Pump
Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Item Grade: Standard Replacement
Micron Rating: 60
Strainer Material: Saran
UPC: 689604220917

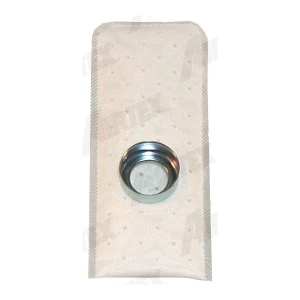

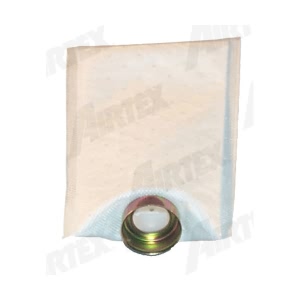

Part Description: 1992 Volvo 740 Fuel Pump Strainer
Notes: Two Fuel Pumps May Be Required, One Mounted In-Tank Pump and One Mounted Externally;Low Pressure Pump;Strainer required to validate the warranty: F102S
Average Current Draw(A): 4.5
Average Flow Rating(GPH): 95
Connector Gender: Male
Connector Quantity: 1
Connector Shape: Rectangle
Country of Orign: China
Gasket or Seal Included: No
Grade Type: Performance
In Tank or External: In Tank
Inlet Size: 0.748
Inlet Type: Filter
Installation Warnings: No
Internal Or External Strainer: External
Maximum Pump Pressure (PSI): 17.4
Minimum Pump Pressure (PSI): 11.6
Outlet Quantity: 1
Outlet Size: 0.37
Outlet Type: Male tube / 0 barb
Product Height (in): 1.44
Product Length (in): 5.16
Product Width (in): 1.44
Pump Type: Turbine
Regulator Included: No
Terminal Gender: Male
Terminal Quantity: 2
Terminal Type: Inserts
UPC: 00072845141972
Voltage: 12V
Weight (lbs): 0.66
Part Description: 1992 Volvo 740 In Tank Electric Fuel Pump
Notes: This Fuel System Reqs more than one Fuel Pump. System Reqs In-Tank Low Pressure Fuel Pump(s) & In-Line High Pressure Fuel Pump; Includes Isolator, Fuel Line Adapters, Electrical Connectors Isolator, Terminals & Fuel Fitting
Gasket Included: N
Hazardous Material: No
Inlet Count: 1
Inlet Type: Hose Barb
Item Grade: Standard Replacement
Maximum Free Flow Rate (gph): 40
Maximum Pressure Rate (psi): 100
Minimum Free Flow Rate (gph): 40
Minimum Pressure Rate (psi): 90
Outlet Count: 1
Outlet Size: M14 x 1
Outlet Type: Pipe Threaded
Package Contents: Pump & Kit
Package Quantity: 1
Warranty: Lifetime Limited Warranty
Part Description: 1992 Volvo 740 In-Tank Electric Fuel Pump
