Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F4197 |

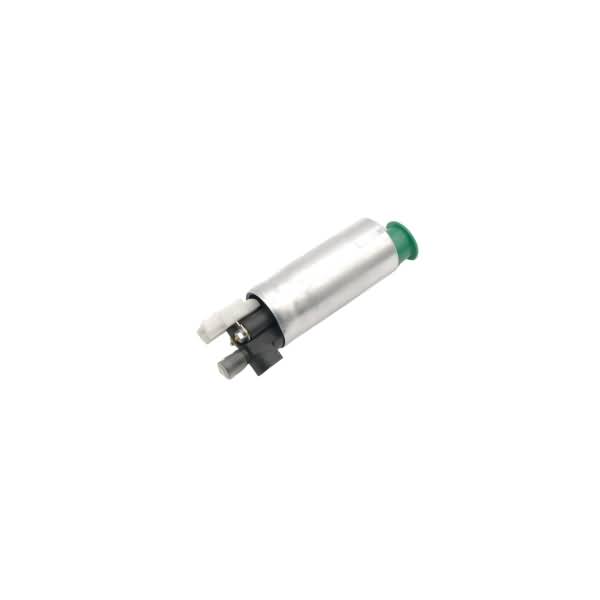

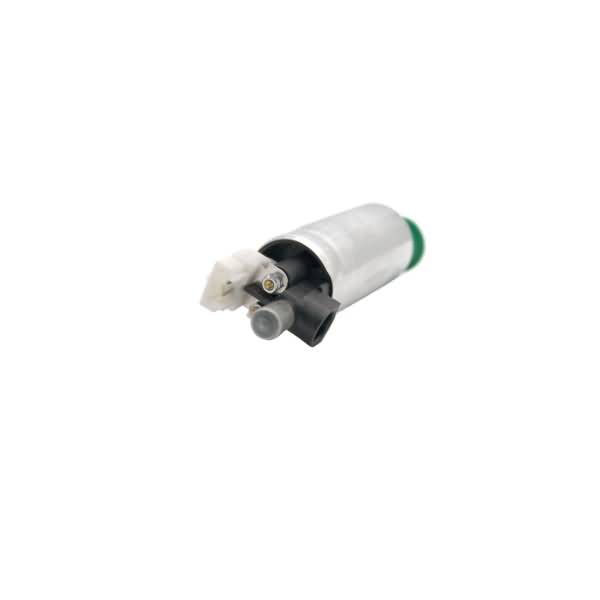

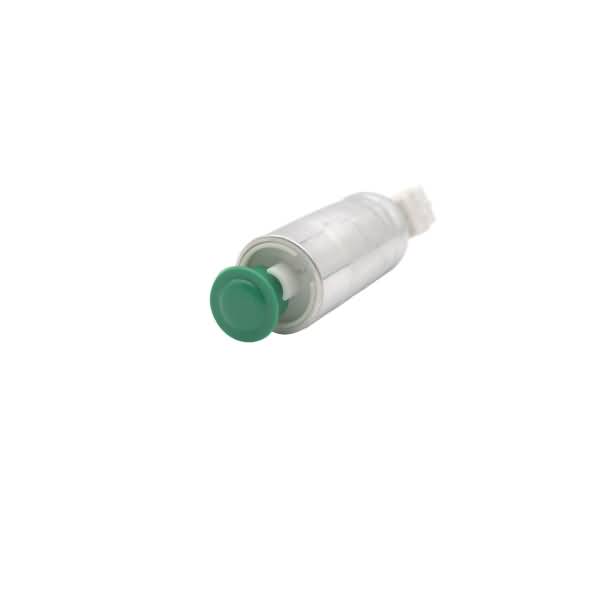

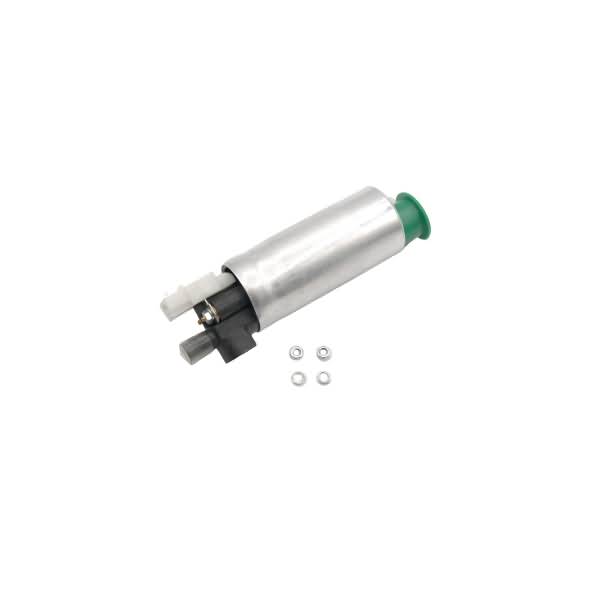

Part Description | In Tank Electric Fuel Pump |
Average Current Draw(A) | 4.5 |
Average Flow Rating(GPH) | 95 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Rectangle |
Country of Orign | China |
Fuel Type | Turbine |
Gasket or Seal Included | No |
Grade Type | Performance |
In Tank or External | In Tank |
Inlet Size | 0.748 |
Inlet Type | Filter |
Installation Warnings | No |
Internal or External | Internal |
Internal Or External Strainer | External |
Maximum Free Flow (GPH) | 53 |
Maximum Pump Pressure (PSI) | 17.4 |
Minimum Free Flow (GPH) | 40 |
Minimum Pump Pressure (PSI) | 11.6 |
Outlet Quantity | 1 |
Outlet Size | 0.37 |
Outlet Type | Male tube / 0 barb |
Product Height (in) | 1.44 |
Product Length (in) | 5.16 |
Product Width (in) | 1.44 |
Pump Type | Turbine |
Regulator Included | No |
Terminal Gender | Male |
Terminal Quantity | 2 |
Terminal Type | Inserts |
UPC | 00072845141972 |
Voltage | 12V |
Weight (lbs) | 0.66 |
Year Make Model | Trim | Engine |
---|---|---|
1988-1992 Volvo 740 | All Trims | 4 Cyl 2.3L |
1987-1990 Volvo 780 | All Trims | 6 Cyl 2.8L |
1989-1991 Volvo 780 | All Trims | 4 Cyl 2.3L |
1991-1995 Volvo 940 | All Trims | 4 Cyl 2.3L |
1992-1994 Volvo 960 | All Trims | 6 Cyl 2.9L |
1998 Volvo S90 | All Trims | 6 Cyl 2.9L |
1998 Volvo V90 | All Trims | 6 Cyl 2.9L |
