1992 Audi S4
Gates® Safety Stripe Hvac Heater Hose for 1992 Audi S4
PartNumber: 28412Product Specifications- Notes: Cut to Length, 4"
- Centerline Length: 50 ft
- End 1 Inside Diameter: 19 mm
- End 2 Inside Diameter: 19 mm
- Material: EPDM
- OE Part Number: 49693
- UPC: 072053066326
- Weight Per Length: 13.20 lbs./Carton
- Working Pressure: 50 PSI
- Part Description: Safety Stripe Hvac Heater Hose
$67.45
Four Seasons® A C Compressor With Clutch for 1992 Audi S4
PartNumber: 68638Product Specifications- Notes: w/ DCW17B Compressor; New w/ Clutch; w/ R134a System
- Clutch Included: Yes
- Clutch Maximum Diameter: 5.000
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Type: DCW17B
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.703125
- Mount Distance MM: 43.180
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: New
- O-Ring A Number/Desc: [24608] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24612] / Green O-Ring
- O-Ring B Quantity: 1
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 127.000
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 5.000
- Pulley Outside Diameter: 5.000
- Pulley Ridge Diameter: 5.000
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Terminal Type: Spade
- UPC: 096361686380
- Part Description: A C Compressor With Clutch
$454.21
VEMO® HVAC Blower Motor for 1992 Audi S4
PartNumber: V15-03-1915Product Specifications- Notes: Grade: Aftermarket; InclImpeller
- Height [mm]: 193
- Length [mm]: 147.5
- Number of Connectors: 2
- Vehicle Equipment: for vehicles with/without air conditioning
- Weight [kg]: 1.304
- Width [mm]: 147.5
- Part Description: HVAC Blower Motor
$132.58
Gates® 90 Degree Hvac Heater Molded Hose for 1992 Audi S4
PartNumber: 28474Product Specifications- Notes: Cut to fit
- Angle: 90
- Arm Length 1 (in): 4
- Arm Length 1 (mm): 102
- Arm Length 2 (in): 6
- Arm Length 2 (mm): 152
- Centerline Length (in): 10
- Centerline Length (mm): 254
- End 1 Inside Diameter: 0.75 in
- Material: EPDM
- Molded: Yes
- Number of Quick Connect Fittings: 0
- OE Part Number: 9016
- UPC: 072053062083
- Part Description: 90 Degree Hvac Heater Molded Hose
$9.80
Four Seasons® Remanufactured A C Compressor With Clutch for 1992 Audi S4
PartNumber: 67638Product Specifications- Notes: w/ DCW17B Compressor; Reman w/ Clutch; w/ R134a System
- Clutch Included: Yes
- Clutch Maximum Diameter: 5.000
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Compatible Refrigerant Oil Type: PAG 46
- Compressor Head Type: D163
- Compressor Type: DCW17B
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 1.703125
- Mount Distance MM: 43.180
- Mounting Hardware: Not Included
- Mounting Type: Tangent Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24608] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24612] / Green O-Ring
- O-Ring B Quantity: 1
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 127.000
- Pulley Groove Quantity: 6
- Pulley Lip Diameter: 5.000
- Pulley Outside Diameter: 5.000
- Pulley Ridge Diameter: 5.000
- Refrigerant Type: R134a
- Suction Port Type: O-Ring
- Switch Included: Sensor Port
- Switch Type: Speed Sensor
- Terminal Type: Spade
- UPC: 096361676381
- Part Description: Remanufactured A C Compressor With Clutch
$346.03
Four Seasons® Hvac Heater Control Valve for 1992 Audi S4
PartNumber: 74671Product Specifications- Hose Connector Quantity: 2 Connectors
- Material: Thermoplastic / Steel
- O.E. Replacement: Yes
- Opening B IN: 0.750
- Opening B MM: 19.050
- Opening IN: 0.750
- Opening MM: 19.050
- Operation Type: Vacuum
- Style: Non-Bypass
- UPC: 096361746718
- Part Description: Hvac Heater Control Valve
$24.27

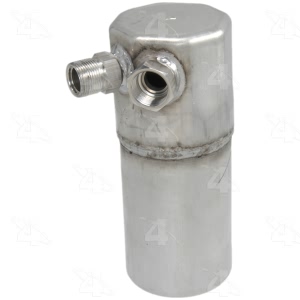

Four Seasons® A C Accumulator for 1992 Audi S4
PartNumber: 33316Product Specifications- Body Diameter: 3.500
- Body Length: 9.000
- Dia. MM: 88.900
- Inlet Fitting Diameter: 3/4
- Inlet Fitting Type: Female O-Ring
- Inlet IN: 0.750
- Inlet MM: 19.050
- Inlet Size: 3/4
- Length MM: 228.600
- Material: Aluminum
- Meets / Exceeds OEM: Yes
- Mounting Bracket Included: w/o Bracket
- Mounting Hardware: Hardware not included.
- O-Ring A Number/Desc: [24612] / Green O-Ring
- O-Ring A Quantity: 2
- Outlet Fitting Diameter: 0.750
- Outlet Fitting Type: Male Insert O-Ring
- Outlet Fraction: 3/4
- Outlet MM: 19.050
- Outlet Size: 3/4
- Style: Complete Unit
- Switch: w/o Switch Port
- Switch Service Port: w/o Service Port
- UPC: 096361333161
- Part Description: A C Accumulator
$18.19
Four Seasons® A C Orifice Tube for 1992 Audi S4
PartNumber: 38904Product Specifications- Notes: Optional Auto Adjusting Orifice Tube For Severe Climates Over 105 Degrees
- Color: White
- Pack in Qty of: 1
- Style: AAOT
- UPC: 096361389045
- Part Description: A C Orifice Tube
$11.92
Four Seasons® A C System Valve Core And Cap Kit for 1992 Audi S4
PartNumber: 26777Product Specifications- Notes: Caps and Valve Core Seal Kit; w/ R12 or R134a Retrofit System
- Cap Color: Red, Blue, Black
- Cap Inside Diameter: Specific
- Cap Material: Plastic
- Material: Aluminum
- Refrigerant Type: R12, R134a
- Style: Cap & Valve Kit
- UPC: 096361267770
- Valve Core Material: Specific
- Part Description: A C System Valve Core And Cap Kit
$10.69
Four Seasons® A C System O Ring And Gasket Kit for 1992 Audi S4
PartNumber: 26765Product Specifications- Notes: O-Ring and Gasket Seal Kit
- Material: Green Rubber O-Rings
- Style: O-Ring & Gasket Kit
- UPC: 096361267657
- Part Description: A C System O Ring And Gasket Kit
$10.52
Four Seasons® A C Clutch Control Relay Harness Connector for 1992 Audi S4
PartNumber: 37210Product Specifications- Connector Pin Qty: 5
- Connector Shape: Other design
- Gender: Female
- Printed Foot Note: Harness Connector for Bosch Relays 4 or 5
- Style: Harness Connector
- Terminal Gender: Female
- Terminal Quantity: 5
- UPC: 096361372108
- Wire Length IN: 6.000
- Part Description: A C Clutch Control Relay Harness Connector
$10.29
Four Seasons® A C Orifice Tube for 1992 Audi S4
PartNumber: 38902Product Specifications- Notes: Optional Auto Adjusting Orifice Tube For Normal Climates Under 105 Degrees
- Color: Red
- Pack in Qty of: 1
- Style: AAOT
- UPC: 096361389021
- Part Description: A C Orifice Tube
$7.85
Four Seasons® A C Orifice Tube for 1992 Audi S4
PartNumber: 38623Product Specifications- Notes: OE Replacement; Single Tube
- Color: White
- Orifice Dia. IN: 0.072
- Orifice Dia. MM: 1.803 to 1.854
- Pack in Qty of: 1
- Printed Foot Note: Optional AAOT Part No. [38902], For climates above 105Deg use (Severe Duty) AAOT [38904]; Bulk Package of 10 [623]; Bulk Package of 25 [8623].
- Style: Standard
- UPC: 096361386235
- Part Description: A C Orifice Tube
$1.19
Four Seasons® White Orifice Tube 25 pkg for 1992 Audi S4
PartNumber: 8623Product Specifications- Notes: Bulk Pkg of 25 Orifice Tubes
- Color: White
- Orifice Dia. IN: 0.071 to 0.073
- Orifice Dia. MM: 1.803 to 1.854
- Style: Standard
- UPC: 096361086234
- Part Description: White Orifice Tube 25 pkg
$1.10
Four Seasons® White Orifice Tube 10 pkg for 1992 Audi S4
PartNumber: 623Product Specifications- Notes: Bulk Pkg of 10 Orifice Tubes
- Color: White
- Orifice Dia. IN: 0.071 to 0.073
- Orifice Dia. MM: 1.803 to 1.854
- Style: Standard
- UPC: 096361006232
- Part Description: White Orifice Tube 10 pkg
$1.06
Spectra Premium® HVAC Heater Core for 1992 Audi S4
PartNumber: 94652Product Specifications- Depth: 2.0
- Inlet Size (in): 0.625
- Internet Product Code (IPC): 8C69404F538
- Item has MSDS (SDS): N
- Material: Copper
- MFG Brand Name: Spectra Premium
- MFG Model # (Series): 00671607602050
- MFG Name: Spectra Premium Industries
- Outlet Size (in): 0.625
- Package Contents: 1 x Heater 1 x Installation Sheet
- Supplier Company Name: Spectra Premium Industries
- UPC: 671607602050
- Width: 6.25
- Part Description: HVAC Heater Core
Denso® A/C Compressor for 1992 Audi S4
PartNumber: 471-0259Product Specifications- Clutch Maximum Diameter: 131.0
- Compressor Mount Hole Quantity: 4
- Mounting Type: Bolt Tangent
- New or Remanufactured: Remanufactured
- Pulley Belt Type: V-Belt
- Refrigerant Type: R12
- UPC: 042511162594
- Part Description: A/C Compressor
