Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 67638 |

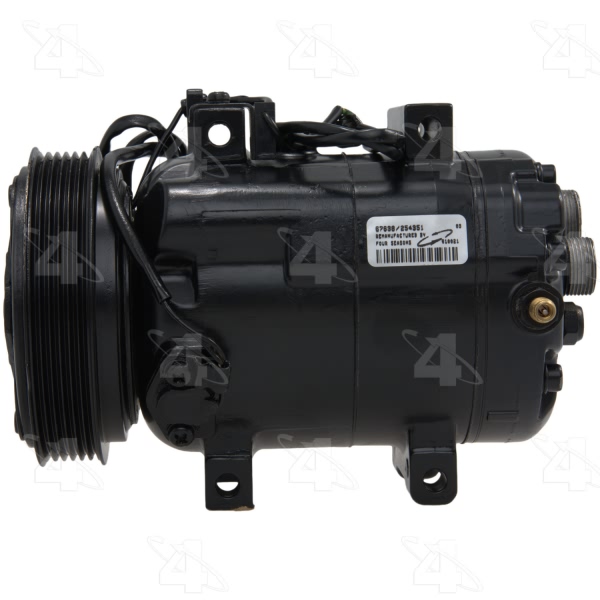

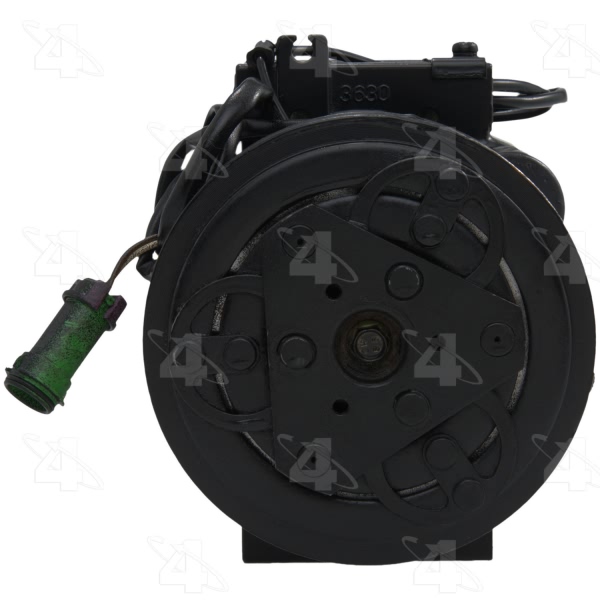

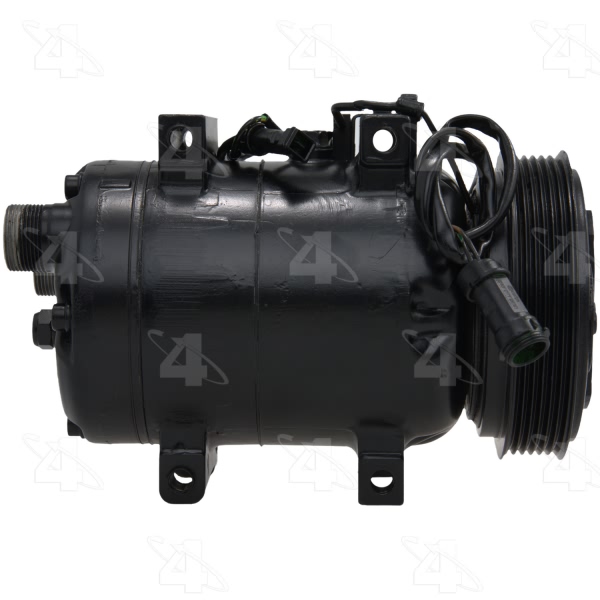

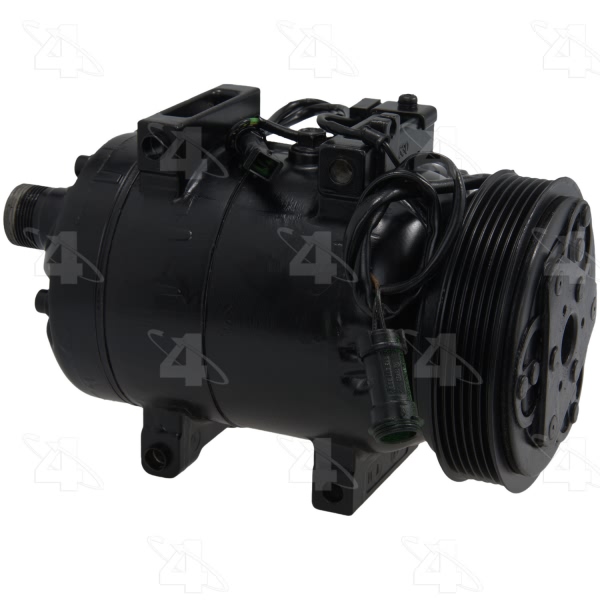

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |
Clutch Maximum Diameter | 5.000 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Compatible Refrigerant Oil Type | PAG 46 |
Compressor Head Type | D163 |
Compressor Type | DCW17B |

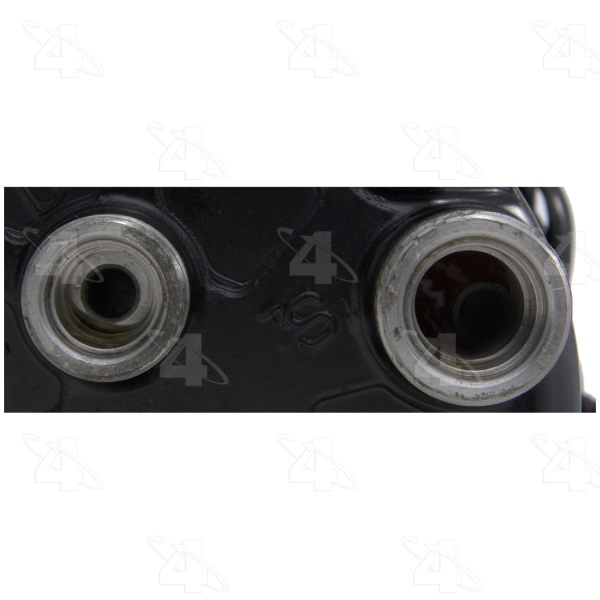

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 1.703125 |
Mount Distance MM | 43.180 |
Mounting Hardware | Not Included |
Mounting Type | Tangent Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24612] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 127.000 |
Pulley Groove Quantity | 6 |
Pulley Lip Diameter | 5.000 |
Pulley Outside Diameter | 5.000 |
Pulley Ridge Diameter | 5.000 |
Refrigerant Type | R134a |
Suction Port Type | O-Ring |
Switch Included | Sensor Port |
Switch Type | Speed Sensor |
Terminal Type | Spade |
UPC | 096361676381 |
Year Make Model | Trim | Engine |
---|---|---|
1990-1994 Audi 100 | All Trims | All Engines |
1990-1994 Audi 100 Quattro | All Trims | All Engines |
1993-1995 Audi 90 | All Trims | All Engines |
1993-1995 Audi 90 Quattro | All Trims | All Engines |
1996 Audi A4 | All Trims | All Engines |
1997 Audi A4 | All Trims | 6 Cyl 2.8L |
1996 Audi A4 Quattro | All Trims | All Engines |
1997 Audi A4 Quattro | All Trims | 6 Cyl 2.8L |
1995-1996 Audi A6 | All Trims | All Engines |
1995-1996 Audi A6 Quattro | All Trims | All Engines |
