1986 Jaguar Vanden Plas
Gates® Engine Coolant Safety Release Radiator Cap for 1986 Jaguar Vanden Plas
PartNumber: 31518Product Specifications- Notes: 16 psi Pressure Rating
- Cap Depth: 1.5 in
- Coolant Recovery System: Optional System
- Filler Neck Depth: 0.75 in
- Filler Neck Inside Diameter: 1.61 in
- Filler Neck Outside Diameter: 2.13 in
- OE Part Number: 50237
- Pressure Rating: 16 psi
- SAE Pressure Range: 14-18 psi
- Shell Diameter: 2.61 in
- UPC: 072053020458
- Part Description: Engine Coolant Safety Release Radiator Cap
$7.17

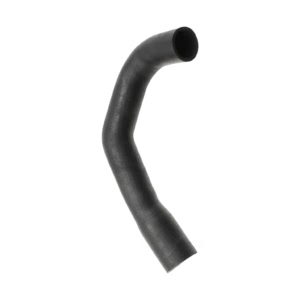

Dayco® 90 Degree Engine Coolant Molded Radiator Hose for 1986 Jaguar Vanden Plas
PartNumber: 80400Product Specifications- Notes: Curved, Short Hose
- UPC: 038244148035
- Part Description: 90 Degree Engine Coolant Molded Radiator Hose
$11.15
Four Seasons® Thermal Engine Cooling Fan Clutch for 1986 Jaguar Vanden Plas
PartNumber: 36733Product Specifications- Notes: Std Rotation; Std Duty Thermal Fan Clutch
- Bolt Hole Quantity: 4
- Bolt Quantity: 4
- Bolt Thread: 5/16-18 Hole
- Clutch Maximum Diameter: 5.9; 5.91
- Clutch Type: B - Non-Thermal & Std Thermal
- Color: Raw Aluminum in Color
- Distance From Clutch To Mounting Flange: 1.088; 1.09
- Electronic Clutch: Non Electronic
- Fan Bolt Circle IN: 3.25
- Fan Bolt Circle MM: 82.55; 82.6
- Material: Aluminum
- Meets / Exceeds OEM: Yes
- Mount Dia. IN: 2.32
- Mount Dia. MM: 59
- Mounting Hardware: Not Included
- Mounting Hole Quantity: 4
- Mounting Type: Flange
- New or Reman: New
- Overall Dia. MM: 149.9
- Overall Height IN: 2.92
- Overall Height MM: 74.2
- Performance Rated: Yes
- Pilot Depth IN: 0.56
- Pilot Depth MM: 14.2
- Pilot Dia. IN: 0.75
- Rotation: STD
- SDS Required: No (135233618)
- Style: Standard Duty
- UPC: 096361367333
- Use Type: Standard
- Part Description: Thermal Engine Cooling Fan Clutch
$39.97
GMB® Engine Coolant Water Pump for 1986 Jaguar Vanden Plas
PartNumber: 113-1130Product Specifications- Housing Material: Cast Iron
- Hub Height: 4.22 in
- Impeller Material: Metal
- Impeller Outside Diameter: 3.88 in
- Impeller Rotation: Standard
- UPC: 826732106892
- Water Pump Drive Type: Drive Belt
- Part Description: Engine Coolant Water Pump
$153.31
Four Seasons® Coolant Temperature Sensor for 1986 Jaguar Vanden Plas
PartNumber: 37884Product Specifications- Connector Gender: Female
- Connector Shape: Rectangle
- Fitting Thread Size: M12-1.25
- Meets / Exceeds OEM: YES
- Number of Terminals: 2
- Style: Coolant Temp Sensor
- UPC: 096361378841
- Part Description: Coolant Temperature Sensor
$19.53
Dayco® Engine Coolant Curved Radiator Hose for 1986 Jaguar Vanden Plas
PartNumber: 70647Product Specifications- Color: Black
- Contains Heat Shield: N
- Contains Protective Sleeve: N
- End 1 Inside Diameter: 3/4
- End 2 Inside Diameter: 3/4
- Hose Type: Single I.D. Hose
- Material: EPDM
- SAE Specification: SAE J20R4 Class D-1, SAE J1684 Type EC
- Trunk Height: 3 1/2
- UPC: 038244134519
- Part Description: Engine Coolant Curved Radiator Hose
$5.56
GMB® Engine Cooling Fan Clutch for 1986 Jaguar Vanden Plas
PartNumber: 913-2010Product Specifications- Notes: Clockwise (Std) Rotation; Thermal Fan Clutch; Std Duty
- Clutch Type: Thermal
- Rotation: Clockwise
- UPC: 083286187214
- Part Description: Engine Cooling Fan Clutch
$41.46
Gates® Engine Coolant Replacement Radiator Cap for 1986 Jaguar Vanden Plas
PartNumber: 31528Product Specifications- Notes: 16 psi Pressure Rating
- Cap Depth: 1.25 in
- Coolant Recovery System: Optional System
- Filler Neck Depth: 0.75 in
- Filler Neck Inside Diameter: 1.61 in
- Filler Neck Outside Diameter: 2.13 in
- OE Comparison Rating: OE Performance
- Pressure Rating: 16 psi
- SAE Pressure Range: 14-18 psi
- Shell Diameter: 2.33 in
- UPC: 072053020489
- Part Description: Engine Coolant Replacement Radiator Cap
$4.48
Dayco® Engine Coolant Curved Radiator Hose for 1986 Jaguar Vanden Plas
PartNumber: 71346Product Specifications- Color: Black
- Contains Heat Shield: N
- Contains Protective Sleeve: N
- End 1 Inside Diameter: 1 1/16
- End 2 Inside Diameter: 2 1/16
- Hose Type: Dual I.D. Hose
- Material: EPDM
- SAE Specification: SAE J20R4 Class D-1, SAE J1684 Type EC
- Trunk Height: 15
- UPC: 038244140671
- Part Description: Engine Coolant Curved Radiator Hose
$13.28
Dayco® 90 Degree Engine Coolant Molded Radiator Hose for 1986 Jaguar Vanden Plas
PartNumber: 80401Product Specifications- Notes: Curved, Long Hose
- UPC: 038244148042
- Part Description: 90 Degree Engine Coolant Molded Radiator Hose
$9.90
MTC® Engine Coolant Expansion Tank for 1986 Jaguar Vanden Plas
PartNumber: 7855Product Specifications- UPC: 849290031093
- Part Description: Engine Coolant Expansion Tank
STANT® Engine Coolant Radiator Cap for 1986 Jaguar Vanden Plas
PartNumber: 10230Product Specifications- Notes: Pressure Rating 16 psi; Part Replacement Replaces 48349
- Cap Depth: 1.25"
- Filler Neck Depth: 0.75"
- Filler Neck Inside Diameter: 1.61"
- Filler Neck Outside Diameter: 2.13"
- OE Part Number: 11531486703, 11171100848, 17111468060, 4596444AA, 5278697AA, 4592098, 05278697AA, 52014479AA, 04596444AA, 5191233AA, 04693175AA, 4693175, 5086226AA, 5352594, F4TZ8100B, FIVH8100BA, F1VY8100B, E9DZ8100A, F47H8100AB, 5-21450-002-1, 9-21450-610-0, 8-94228-74
- Pressure: 16 psi
- Shell Diameter: 2.33"
- Type: Optional System
- UPC: 033342001305
- Part Description: Engine Coolant Radiator Cap
STANT® Engine Coolant Radiator Cap for 1986 Jaguar Vanden Plas
PartNumber: 10330Product Specifications- Notes: Pressure Rating 16 psi
- Cap Depth: 1.5"
- Filler Neck Depth: 0.75"
- Filler Neck Inside Diameter: 1.61"
- Filler Neck Outside Diameter: 2.13"
- Pressure: 16 psi
- Shell Diameter: 2.61"
- Type: Optional System
- UPC: 033342002302
- Part Description: Engine Coolant Radiator Cap
STANT® 3/4" Cooling System Cap Adapter for 1986 Jaguar Vanden Plas
PartNumber: 12552Product Specifications- Notes: System Adapter On Tester
- Quantity: 1 Piece
- Size: 3/4"
- UPC: 033342025523
- Part Description: 3/4" Cooling System Cap Adapter
