Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 36733 |

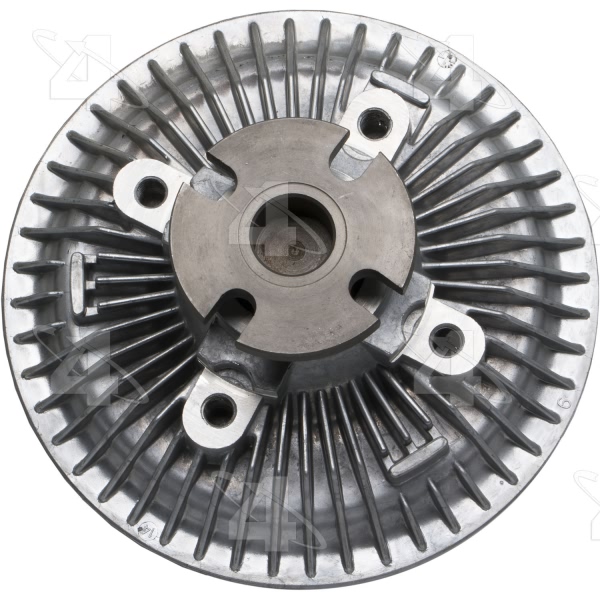

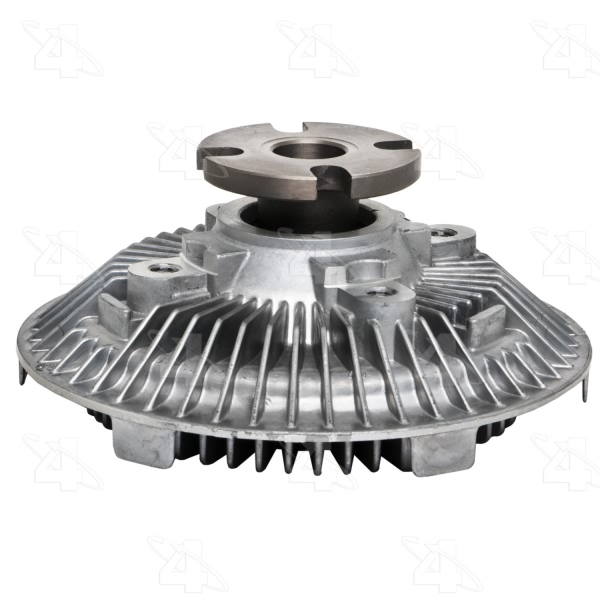

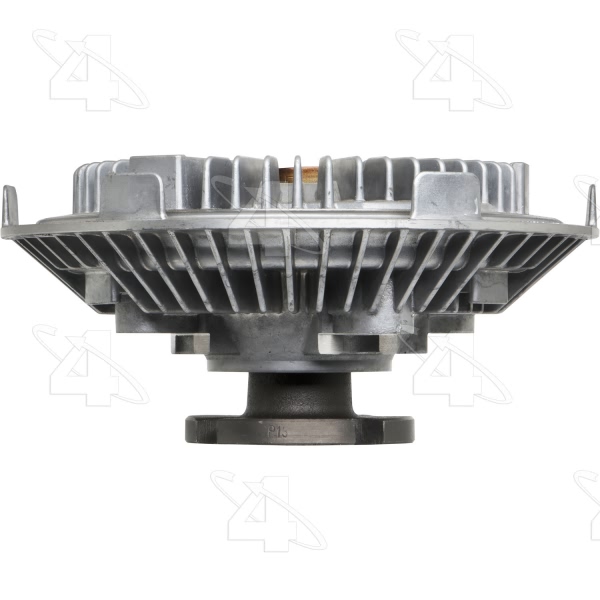

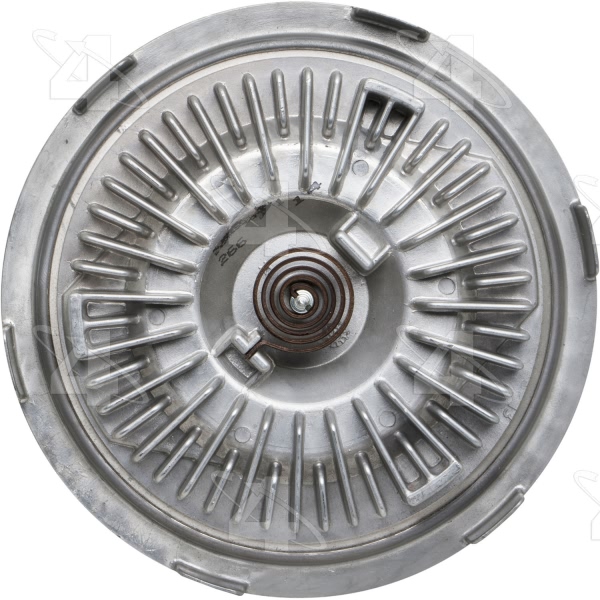

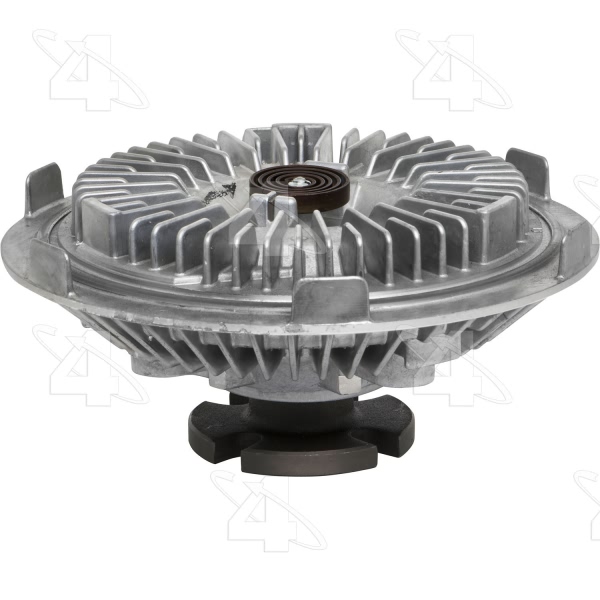

Part Description | Thermal Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | 5/16-18 Hole |
Clutch Maximum Diameter | 5.9 or 5.91 |
Clutch Type | B - Non-Thermal & Std Thermal |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 1.088 or 1.09 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 3.25 |
Fan Bolt Circle MM | 82.55 or 82.6 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 2.32 |
Mount Dia. MM | 59 |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | Flange |
New or Reman | New |
Overall Dia. MM | 149.9 |
Overall Height IN | 2.92 |
Overall Height MM | 74.2 |
Performance Rated | Yes |
Pilot Depth IN | 0.56 |
Pilot Depth MM | 14.2 |
Pilot Dia. IN | 0.75 |
Rotation | STD |
SDS Required | No (135233618) |
Style | Standard Duty |
UPC | 096361367333 |
Use Type | Standard |
Year Make Model | Trim | Engine |
---|---|---|
1985-1987 Jaguar Vanden Plas | All Trims | All Engines |
1985-1986 Jaguar XJ6 | All Trims | All Engines |
1987 Jaguar XJ6 | All Trims | 6 Cyl 4.2L |
1980-1991 Jaguar XJS | All Trims | All Engines |
1992 Jaguar XJS | All Trims | 12 Cyl 5.3L |
1993-1996 Jaguar XJS | All Trims | All Engines |
