Gates® Pre Release Locking Fuel Tank Cap for 1986 Isuzu I-Mark
PartNumber: 31734Product Specifications- Cam Type: Threaded
- Cap Depth: 2.38"
- Locking: Yes
- Neck Diameter: 1.77"
- Shell Diameter: 2.75"
- Type: Pre-Release Locking Fuel Cap
- UPC: 072053416091
- Venting: Emission Control
- Part Description: Pre Release Locking Fuel Tank Cap
$18.69
Gates® Locking Fuel Tank Cap for 1986 Isuzu I-Mark
PartNumber: 31778Product Specifications- Cam Type: Threaded
- Cap Depth: 2.61"
- Locking: Yes
- Neck Diameter: 1.77"
- Shell Diameter: 2.91"
- Type: Regular Fuel Cap
- UPC: 072053021455
- Venting: Emission Control
- Part Description: Locking Fuel Tank Cap
$13.76
Gates® Replacement Non Locking Fuel Tank Cap for 1986 Isuzu I-Mark
PartNumber: 31748Product Specifications- Cam Type: Threaded
- Cap Depth: 2.05"
- Locking: No
- Neck Diameter: 1.77"
- Shell Diameter: 2.78"
- Type: OE Equivalent Fuel Cap
- UPC: 072053021325
- Venting: Emission Control
- Part Description: Replacement Non Locking Fuel Tank Cap
$6.27
Gates® Pre Release Non Locking Fuel Tank Cap for 1986 Isuzu I-Mark
PartNumber: 31615Product Specifications- Cam Type: Threaded
- Cap Depth: 2.14"
- Locking: No
- Neck Diameter: 1.77"
- Shell Diameter: 2.81"
- Type: Pre-Release Fuel Cap
- UPC: 072053107760
- Venting: Emission Control
- Part Description: Pre Release Non Locking Fuel Tank Cap
$9.10

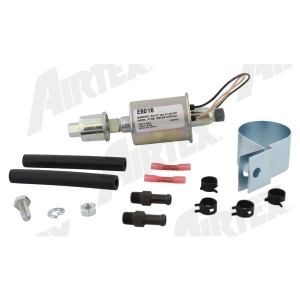

Airtex® Electric Fuel Pump for 1986 Isuzu I-Mark
PartNumber: E8016SProduct Specifications- Notes: Universal Electric Pump Replaces Mechanical Pump;with 3/8 Inch Hose Inlet
- Fuel Pump Flow Rating: 15
- Fuel Pump Inlet Type: Hose Barb
- Fuel Sending Unit Included: No
- Fuel Type: Diesel
- Gasket or Seal Included: Yes
- Inlet Attachment: Inlet-Pipe Thread
- Inlet Count: 1
- Inlet Outside Diameter: 3/8
- Inlet Size: Inlet-1/8
- Inlet Type: Hose Barb
- Internal or External: External
- Internet Product Code (IPC): 5750A8127C7
- Item Grade: OEM Standard Part
- Item has MSDS (SDS): No
- Length (Inch): 112.0
- Maximum Free Flow Rate (gph): 30
- Maximum Pressure (psi): 4.5
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E8016S
- Minimum Free Flow Rate (gph): 30
- Minimum Pressure (psi): 2.5
- Mounting Hardware Included: Yes
- Muffler Outlet Diameter (in): 3/8
- Negative Ground: Yes
- Operating Pressure: 1
- Outlet Attachment: Outlet-Hose Barb
- Outlet Count: 1
- Outlet Quantity: 1
- Outlet Size: Outlet - 1/8
- Outlet Type: Hose Barb
- Package Contents: Fuel Pump Assembly
- Pump Design: Solenoid
- Pump Type: Electric
- Regulator Included: No
- Seal And Lock Ring Included: No
- Static Pressure Rating: 3.5-5.5
- Strainer Included: No
- Supplier Company Name: Airtex Products
- Terminal Type: Lead Wire
- Universal Or Specific Fit: Universal
- UPC: 080044089940
- Voltage [V]: 12V
- Wire Quantity: 2
- Wiring Harness Included: No
- Part Description: Electric Fuel Pump
WIX® Complete In Line Fuel Filter for 1986 Isuzu I-Mark
PartNumber: 33089Product Specifications- Class: W
- Duty Type: LD
- Height: 2.106''
- Inlet: 5/16''
- Inner Diameter Top: Closed
- MediaType: Cellulose
- Micron: 5.00 Micron
- Outer Diameter Bottom: 1.712''
- Outer Diameter Top: 2.047''
- Outlet: 5/16''
- Style: Fuel (Complete In-Line) Filter
- UPC: 765809330894
- Part Description: Complete In Line Fuel Filter
Hastings® In-Line Fuel Filter for 1986 Isuzu I-Mark
PartNumber: GF124Product Specifications- Pallet Layer Quantity: 384
- Part Description: In-Line Fuel Filter
STANT® Fuel Tank Cap for 1986 Isuzu I-Mark
PartNumber: 10504Product Specifications- Notes: Color Black; Part Attributes W/ Threaded Filler Neck; Part Replacement Replaces 48349
- Cam Type: Threaded
- Cap Depth: 2.48"
- Neck Diameter: 1.77"
- Shell Diameter: 2.91"
- UPC: 033342062283
- Venting: Emission Control
- Part Description: Fuel Tank Cap

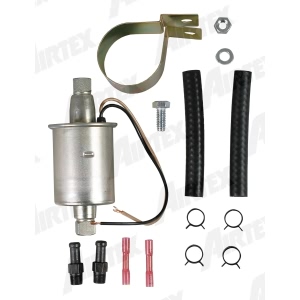

Airtex® In-Line Electric Fuel Pump for 1986 Isuzu I-Mark
PartNumber: E9071Product Specifications- Notes: Universal Electric Pump; May be used to replace mechanical pump
- Gasket Included: N
- Hazardous Material: No
- Inlet Count: 1
- Inlet Type: Female Thread
- Item Grade: Standard Replacement
- Maximum Free Flow Rate (gph): 30
- Maximum Pressure Rate (psi): 4.5
- Minimum Free Flow Rate (gph): 20
- Minimum Pressure Rate (psi): 2.5
- Outlet Count: 1
- Outlet Size: 1/8" - 27
- Outlet Type: Female Thread
- Package Contents: Pump & Kit
- Package Quantity: 1
- UPC: 080044050315
- Warranty: Lifetime Limited Warranty
- Part Description: In-Line Electric Fuel Pump
Airtex® Fuel Pump Gasket for 1986 Isuzu I-Mark
PartNumber: FP2192Product Specifications- Notes: FUEL PUMP MOUNTING GASKET
- Gasket Included: N
- Item Grade: STANDARD REPLACEMENT
- Package Contents: GASKET
- Package Quantity: 1
- UPC: 080044012764
- Part Description: Fuel Pump Gasket
STANT® Black Fuel Cap Tester Adapter for 1986 Isuzu I-Mark
PartNumber: 12410Product Specifications- Notes: Threaded; Threaded Adapter Connected to Tester
- Cam Type: Threaded
- Color: Black
- UPC: 033342062443
- Part Description: Black Fuel Cap Tester Adapter
STANT® Fuel Tank Cap for 1986 Isuzu I-Mark
PartNumber: 10834Product Specifications- Notes: Color Black; Part Attributes W/ Threaded Filler Neck; Part Replacement Replaces 48349
- Cam Type: Threaded
- Cap Depth: 1.78"
- Neck Diameter: 1.77"
- Shell Diameter: 2.61"
- UPC: 033342062191
- Venting: Emission Control
- Part Description: Fuel Tank Cap
STANT® Pre-Release Keyed Alike Fuel Cap for 1986 Isuzu I-Mark
PartNumber: 17501Product Specifications- Notes: Color Black
- Cap Depth: 2.375
- Color: Black
- Fuel Cap Venting: Emission Control
- Locking: Yes
- Material: Plastic
- Neck Diameter: 1.750
- Shell Diameter: 2.750
- Tether Included: No
- UPC: 333420190106
- Part Description: Pre-Release Keyed Alike Fuel Cap
STANT® Regular Keyed Alike Fuel Cap for 1986 Isuzu I-Mark
PartNumber: 17591Product Specifications- Notes: Color Black
- Cap Depth: 2.625
- Color: Black
- Fuel Cap Venting: Emission Control
- Locking: Yes
- Material: Plastic
- Neck Diameter: 1.750
- Shell Diameter: 2.938
- Tether Included: No
- UPC: 333420179170
- Part Description: Regular Keyed Alike Fuel Cap
