1985 Mazda 626
Gates® Safety Stripe Hvac Heater Hose for 1985 Mazda 626
PartNumber: 28409Product Specifications- Notes: Cut to Length, 6";Cut to Length, 8"
- Centerline Length: 50 ft
- End 1 Inside Diameter: 10 mm
- End 2 Inside Diameter: .375 in
- Material: EPDM
- OE Part Number: 8899
- UPC: 072053081183
- Weight Per Length: 8.25 lbs./Carton
- Working Pressure: 60 PSI
- Part Description: 1985 Mazda 626 Safety Stripe Hvac Heater Hose
Vehicle Fitment- 1985 Mazda 626 | All Trims | 4 Cyl 2.0L
$44.06

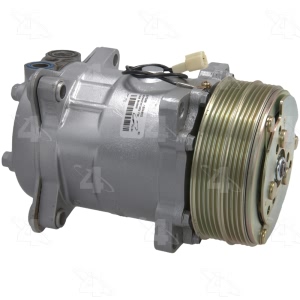

Four Seasons® Remanufactured A C Compressor With Clutch for 1985 Mazda 626
PartNumber: 57508Product Specifications- Notes: w/ SD508 Compressor; Reman w/ Clutch
- Clutch Included: Yes
- Clutch Maximum Diameter: 5.000
- Coil Clock Position: Wire Lead
- Coil Voltage: 12
- Comp Head Prt Config: Top-Vert-Pad
- Compatible Refrigerant Oil Type: PAG 100
- Compressor Head Type: RB/UB
- Compressor Type: SD508
- Discharge Port Type: O-Ring
- Distance From Clutch To Mounting Flange: 0.750
- Mount Distance B IN: 1.546875
- Mounting Hardware: Not Included
- Mounting Type: Ear Mount
- New or Reman: Remanufactured
- O-Ring A Number/Desc: [24613] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24622] / Green O-Ring
- O-Ring B Quantity: 1
- Pulley Belt Type: Serpentine
- Pulley Diameter MM: 127.000
- Pulley Groove Quantity: 10
- Pulley Lip Diameter: 5.000
- Pulley Outside Diameter: 5.000
- Pulley Ridge Diameter: 5.000
- Refrigerant Type: R134a
- Reman w/o Clutch: [57082] / Clutch Assembly
- Suction Port Type: O-Ring
- Terminal Type: Bullet
- UPC: 096361575080
- Part Description: 1985 Mazda 626 Remanufactured A C Compressor With Clutch
Vehicle Fitment- 1985 Mazda 626 | All Trims | All Engines
$224.93

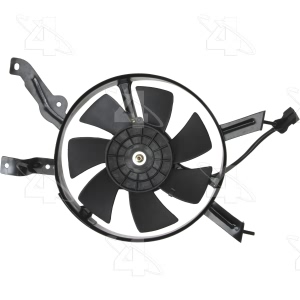

Four Seasons® A C Condenser Fan Assembly for 1985 Mazda 626
PartNumber: 75490Product Specifications- Blade Material: Metal; Plastic
- Blade Type: Rigid
- Connector Gender: Female
- Connector qty: 1
- Connector Shape: Rectangle
- Connector Type: 2 wire lead w/ Connector
- Electrical or Mechanical: Electrical
- Fan 1 Blade Quantity: 6
- Fan Clutch Mounted: Fan clutch not mounted within the assembly.
- Fan Quantity: 1
- Height IN: 14.500
- Housing Finish: Black
- Hub Bolt Hole Quantity: OE Mount
- Material: Plastic / Metal
- Motor Type A: Radiator Fan Assembly
- Mount Location: Condenser Fan
- Mount Type: OE mount
- Mounting Hardware: Not Included
- O.E. Replacement: Yes
- Performance Rated: Yes
- Shroud Included: Included
- Shroud Material: NA
- Style: Condenser Fan
- Terminal Gender: Male
- Terminal Quantity: 2
- UPC: 096361754904
- Voltage: 12
- Width IN: 19.250
- Part Description: 1985 Mazda 626 A C Condenser Fan Assembly
Vehicle Fitment- 1985 Mazda 626 | All Trims | All Engines
$84.68
Gates® Hvac Heater Molded Hose for 1985 Mazda 626
PartNumber: 18737Product Specifications- Notes: Cut to fit
- Centerline Length (in): 12.5"
- Inside Diameter 1 (in): 0.62"
- Number of Branches: 0
- UPC: 072053178876
- Part Description: 1985 Mazda 626 Hvac Heater Molded Hose
Vehicle Fitment- 1985 Mazda 626 | All Trims | 4 Cyl 2.0L
$5.01
Four Seasons® A C Evaporator Core for 1985 Mazda 626
PartNumber: 54800Product Specifications- Core Depth Fraction: 3-1/2
- Core Depth MM: 88.900
- Core Height Fraction: 8-3/4
- Core Height MM: 222.250
- Core Width Fraction: 9-1/4
- Core Width MM: 234.950
- Depth: 3.500
- Height: 8.750
- Inlet Fitting Outside Diameter: No. 8
- Material: Aluminum
- Outlet Fitting Outside Diameter: No. 10
- UPC: 096361548008
- Width: 9.250
- Part Description: 1985 Mazda 626 A C Evaporator Core
Vehicle Fitment- 1985 Mazda 626 | All Trims | All Engines
$81.06
Four Seasons® A C Expansion Valve for 1985 Mazda 626
PartNumber: 38872Product Specifications- Color: Brass
- Refrigerant Type: R134A
- Super Heat: 8.0
- UPC: 096361388727
- Part Description: 1985 Mazda 626 A C Expansion Valve
Vehicle Fitment- 1985 Mazda 626 | All Trims | All Engines
$16.68
Four Seasons® A C System O Ring And Gasket Kit for 1985 Mazda 626
PartNumber: 26754Product Specifications- Notes: O-Ring and Gasket Seal Kit
- Material: Green Rubber O-Rings
- Style: O-Ring & Gasket Kit
- UPC: 096361267541
- Part Description: 1985 Mazda 626 A C System O Ring And Gasket Kit
Vehicle Fitment- 1985 Mazda 626 | All Trims | All Engines
$12.39
Four Seasons® A C System Valve Core And Cap Kit for 1985 Mazda 626
PartNumber: 26777Product Specifications- Notes: Caps and Valve Core Seal Kit; w/ R12 or R134a Retrofit System
- Cap Color: Red, Blue, Black
- Cap Inside Diameter: Specific
- Cap Material: Plastic
- Material: Aluminum
- Refrigerant Type: R12, R134a
- Style: Cap & Valve Kit
- UPC: 096361267770
- Valve Core Material: Specific
- Part Description: 1985 Mazda 626 A C System Valve Core And Cap Kit
Vehicle Fitment- 1985 Mazda 626 | All Trims | All Engines
$10.69
Gates® Hvac Control Duct Hose for 1985 Mazda 626
PartNumber: 28089Product Specifications- Centerline Length (in): 36"
- Inside Diameter 1 (in): 1.75"
- UPC: 072053028195
- Part Description: 1985 Mazda 626 Hvac Control Duct Hose
Vehicle Fitment- 1985 Mazda 626 | All Trims | 4 Cyl 2.0L

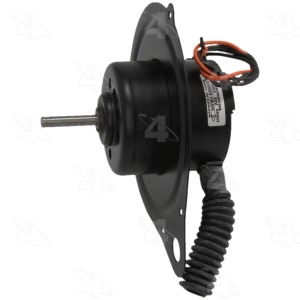

Four Seasons® Hvac Blower Motor Without Wheel for 1985 Mazda 626
PartNumber: 35001Product Specifications- Notes: w/o Wheel
- Cage Wheel Included: w/o Wheel
- Connector Gender: None
- Connector qty: None
- Flanged End: Yes
- Material: Metal
- Motor Diameter: 3.250
- Motor Length: 4.000
- Mount Type: OE Mount
- New or Reman: New
- Number of Terminals: Connector Not Included
- O.E. Replacement: Yes
- Rotation: CW/CCW
- Shaft Diameter: 0.3125
- Shaft Length: 1.500
- Shaft Shape: D-Shaped
- Shaft Type: D-Shaped
- Style: Flanged
- Terminal Type: 2 Lead Wires
- UPC: 096361350014
- Vented: Vented
- Voltage: 12
- Wheel Dia. IN: Yes
- Part Description: 1985 Mazda 626 Hvac Blower Motor Without Wheel
Vehicle Fitment- 1985 Mazda 626 | All Trims | All Engines

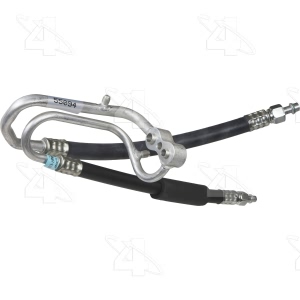

Four Seasons® A C Discharge And Suction Line Hose Assembly for 1985 Mazda 626
PartNumber: 55094Product Specifications- Notes: Discharge & Suction Line
- Bracket: w/o Bracket
- Discharge End Style: UNF O-Ring
- Discharge End Type: Female O-Ring
- Fittings Included: Not Included
- Gasket or Seal Included: Included
- Manifold: Yes
- Material: Aluminum / Rubber
- Muffler: w/o Muffler
- O-Ring A Number/Desc: [24608] / Green O-Ring
- O-Ring A Quantity: 1
- O-Ring B Number/Desc: [24610] / Green O-Ring
- O-Ring B Quantity: 1
- O-Ring C Number/Desc: [24613] / Green O-Ring
- O-Ring C Quantity: 1
- O-Ring D Number/Desc: [24622] / Green O-Ring
- O-Ring D Quantity: 1
- O-Rings Included: Included
- O.E. Replacement: Yes
- Refrigerant Type: R134a
- Service Port: w/o Service Port
- Suction End Style: UNF O-Ring
- Suction End Type: Female O Ring
- Switch Included: w/ Switch Port
- Switch Service Port: w/ Switch Port
- UPC: 096361550940
- Part Description: 1985 Mazda 626 A C Discharge And Suction Line Hose Assembly
Vehicle Fitment- 1985 Mazda 626 | All Trims | All Engines
National® A/C Compressor Clutch Ball Bearing for 1985 Mazda 626
PartNumber: 5001-KFFProduct Specifications- Notes: w/Sanden SD-575 AC Compressor;w/Sanden SD-508 AC Compressor
- Part Description: 1985 Mazda 626 A/C Compressor Clutch Ball Bearing
Vehicle Fitment- 1985 Mazda 626 | All Trims | All Engines
