Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 57508 |

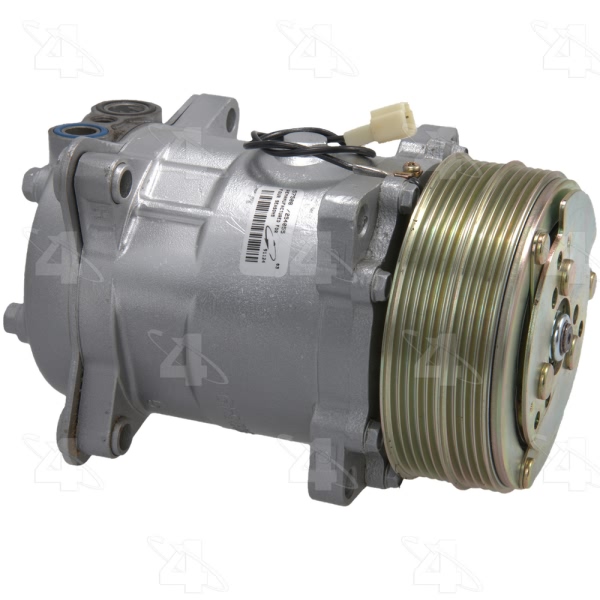

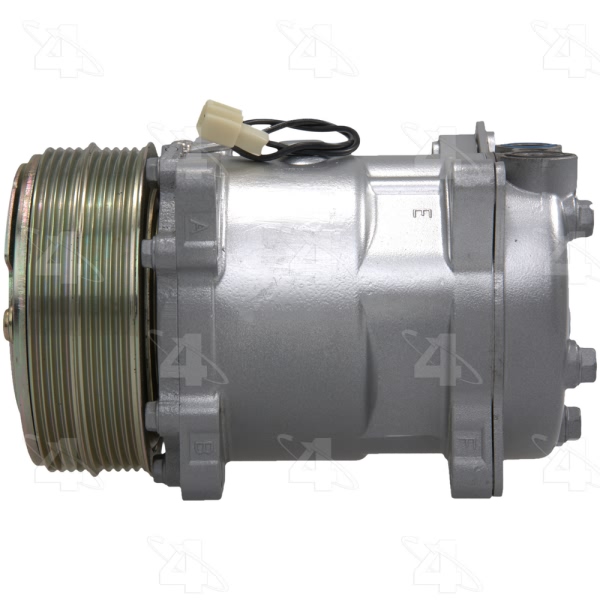

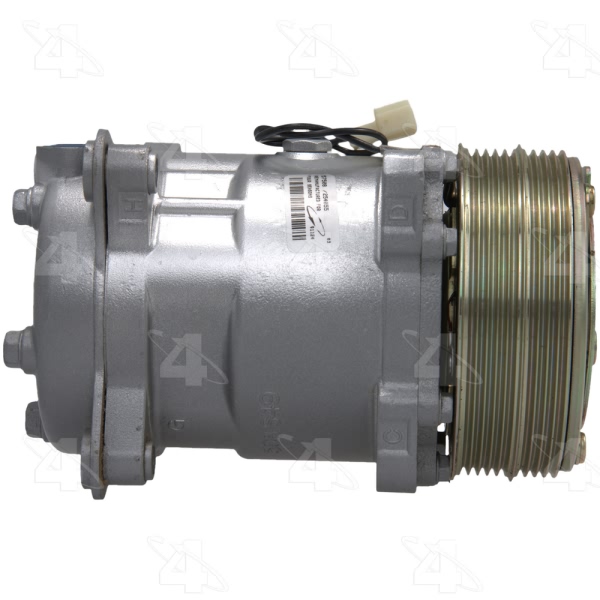

Part Description | Remanufactured A C Compressor With Clutch |
Clutch Included | Yes |

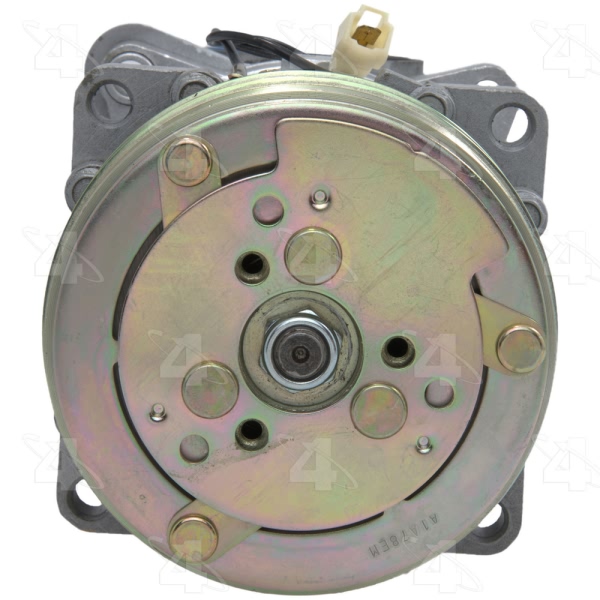

Clutch Maximum Diameter | 5.000 |
Coil Clock Position | Wire Lead |
Coil Voltage | 12 |
Comp Head Prt Config | Top-Vert-Pad |
Compatible Refrigerant Oil Type | PAG 100 |

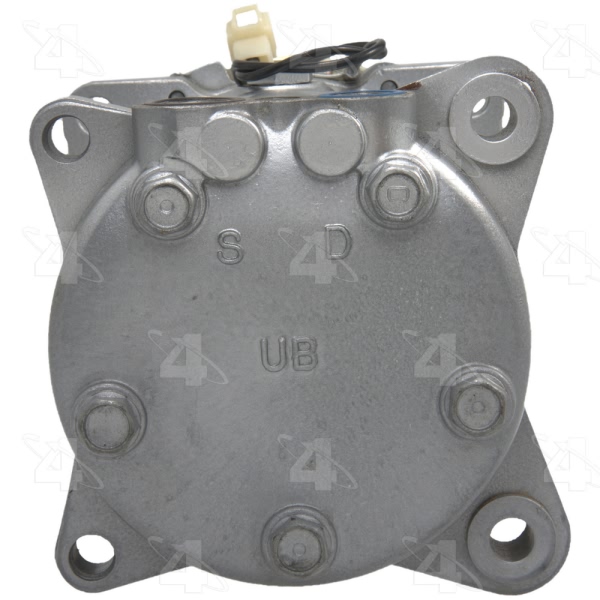

Compressor Head Type | RB/UB |
Compressor Type | SD508 |

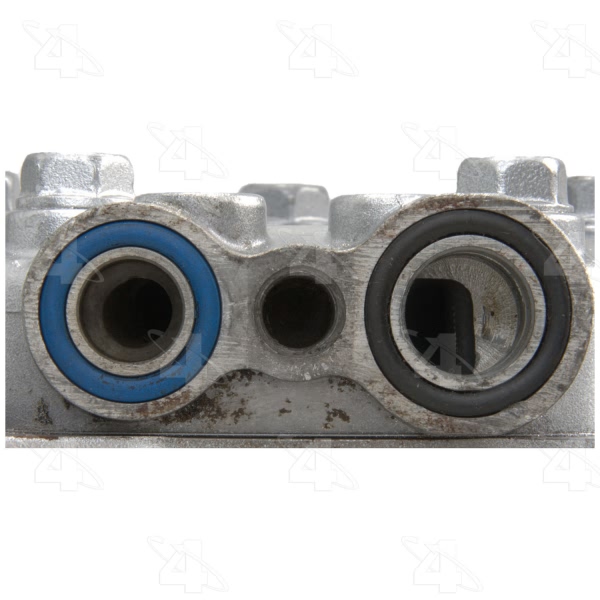

Discharge Port Type | O-Ring |
Distance From Clutch To Mounting Flange | 0.750 |
Mount Distance B IN | 1.546875 |
Mounting Hardware | Not Included |
Mounting Type | Ear Mount |
New or Reman | Remanufactured |
O-Ring A Number/Desc | [24613] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24622] / Green O-Ring |
O-Ring B Quantity | 1 |
Pulley Belt Type | Serpentine |
Pulley Diameter MM | 127.000 |
Pulley Groove Quantity | 10 |
Pulley Lip Diameter | 5.000 |
Pulley Outside Diameter | 5.000 |
Pulley Ridge Diameter | 5.000 |
Refrigerant Type | R134a |
Reman w/o Clutch | [57082] / Clutch Assembly |
Suction Port Type | O-Ring |

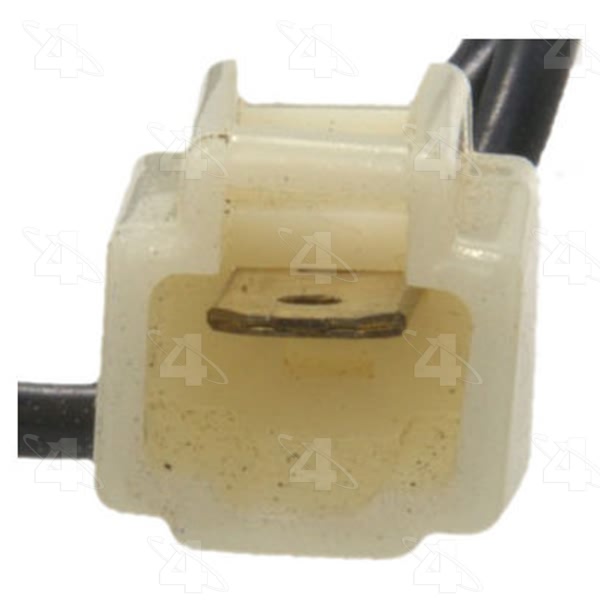

Terminal Type | Bullet |
UPC | 096361575080 |
Year Make Model | Trim | Engine |
---|---|---|
1983-1985 Mazda 626 | All Trims | All Engines |
