Replacement and OEM Parts for Mercury Marauder Piston
Select your vehicle for the best product fit
  • Select Vehicle by Model
  • Select Vehicle by VIN
Select Make
Select Model
Select Year
or

Mercury Marauder Piston

< Back to View All
Crankshafts, Pistons, Rings & Connecting Rods
  • Department
  • Brands
  • Prices

5 Products found

Show Item:
  • 30
  • 60
  • 90
Sort by:
Recommended
Filter
Sort
View by

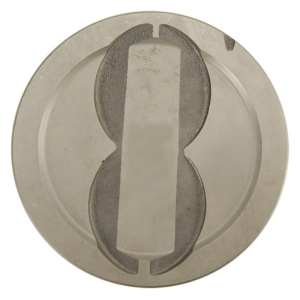

  • Sealed Power Recessed Top Piston for Mercury Marauder - 354P

    Sealed Power® Recessed Top Piston for Mercury Marauder

    PartNumber: 354P
    Product Specifications
    • Bore: 4.1300"
    • Compression Distance: 1.665
    • Head Illustration: 31
    • Head Type: Recessed Head .120 deep - 10.2:1 C.R.
    • Minimum Clearance: 0.0015 @ 2.570 from top of head
    • Part Material: Cast
    • Pin Diameter: 0.9753"
    • Pin Offset: 0.06"
    • Ring 1 Qty: 2
    • Ring 1 Width: 5/64
    • Ring 2 Qty: 1
    • Ring 2 Width: 3/16
    • UPC: 724956346516
    • Part Description: Mercury Marauder Recessed Top Piston
    More Info
    $49.24
  • OEM Mercury Marauder Piston Diagram - 2C5Z-6108-AB
    View Related Parts

    OEM (Genuine) Mercury Marauder Piston

    PartNumber: 2C5Z-6108-AB
    OEM Mercury Marauder Piston - 2C5Z-6108-AB
    Product Specifications
    • Item Weight: 1.30 Pounds
    • Fitment Type: Direct Replacement
    • Replaces: XR3Z-6108-HA
    • Part Description: Mercury Marauder Piston
    More Info
  • OEM Mercury Marauder Piston Diagram - 8L2Z6108A
    View Related Parts

    OEM (Genuine) Mercury Marauder Piston

    PartNumber: 8L2Z6108A
    OEM Mercury Marauder Piston - 8L2Z6108A
    Product Specifications
    • Part Description: Mercury Marauder Piston

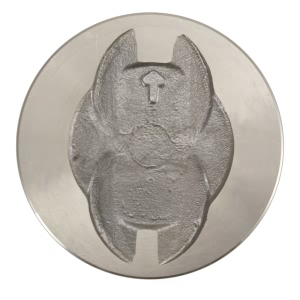

  • Sealed Power Engine Piston for Mercury Marauder - 381NP

    Sealed Power® Engine Piston for Mercury Marauder

    PartNumber: 381NP
    Product Specifications
    • Bore: 101.6000
    • Bore (Inch): 4.0500
    • Compression Distance: 1.660
    • Head Illustration: 31
    • Head Type: Recessed Head .097 deep x 2.620 dia. w/4 valve pockets
    • Minimum Clearance: 0.0015 @ 2.630 from top of head
    • Note 1: Standard Size
    • Part Material: Cast
    • Pin Diameter: 24.773
    • Pin Diameter (Inch): 0.9753
    • Ring 1 Qty: 1
    • Ring 1 Width: 5/64
    • Ring 2 Qty: 1
    • Ring 2 Width: 3/32
    • Ring 3 Qty: 1
    • Ring 3 Width: 3/16
    • Standard Size: Standard
    • UPC: 614046897274
    • Part Description: Mercury Marauder Engine Piston
    More Info
  • Sealed Power Engine Piston for Mercury Marauder - H304P

    Sealed Power® Engine Piston for Mercury Marauder

    PartNumber: H304P
    Product Specifications
    • Bore: 101.6000
    • Bore (Inch): 4.0500
    • Compression Distance: 1.759
    • Head Illustration: 184
    • Head Type: Recessed Head .080 deep x 3.220 dia. w/4 valve reliefs
    • Minimum Clearance: 0.001 @ 2.800 from top of head
    • Note 1: Standard Size
    • Part Material: Hypereutectic
    • Pin Diameter: 24.768
    • Pin Diameter (Inch): 0.9751
    • Pin Offset: 1.524
    • Pin Offset (Inch): 0.06
    • Ring 1 Qty: 1
    • Ring 1 Width: 5/64
    • Ring 2 Qty: 1
    • Ring 2 Width: 3/32
    • Ring 3 Qty: 1
    • Ring 3 Width: 3/16
    • Standard Size: Standard
    • UPC: 724956679706
    • Part Description: Mercury Marauder Engine Piston
    More Info

Browse Mercury Marauder Piston by Years

2004 2003
