Sealed Power® Engine Piston H304P

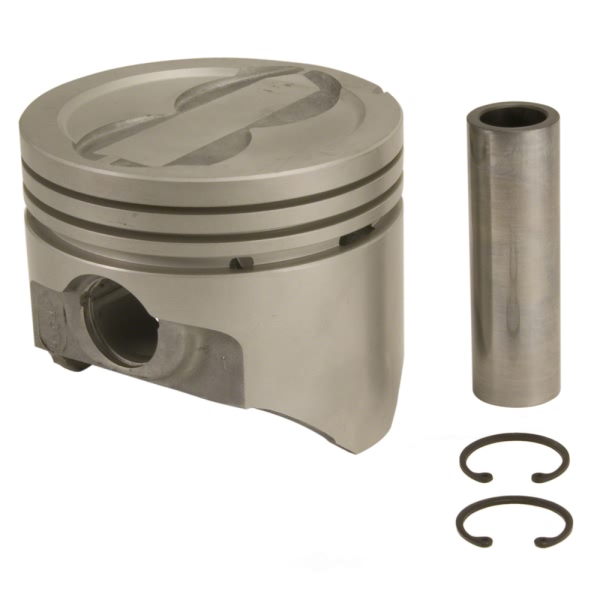

Sealed Power Engine Piston H304P

Vehicle Specific

Check if it fits by entering your vehicle info
Select Your Vehicle
  • Specifications
  • Features
  • Vehicle Fitment
  • Specifications

    BrandSealed Power
    Part NumberH304P
    Part DescriptionEngine Piston
    Bore101.6000
    Bore (Inch)4.0500
    Compression Distance1.759
    Head Illustration184

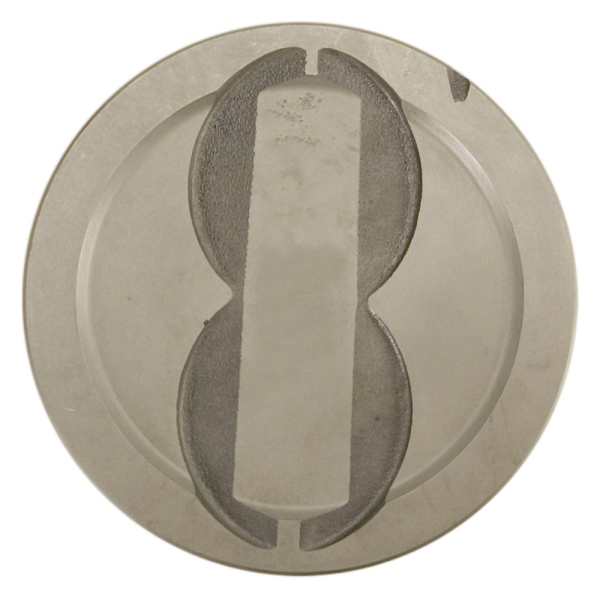

    Head TypeRecessed Head .080 deep x 3.220 dia. w/4 valve reliefs
    Minimum Clearance0.001 @ 2.800 from top of head
    Note 1Standard Size
    Part MaterialHypereutectic
    Pin Diameter24.768
    Pin Diameter (Inch)0.9751
    Pin Offset1.524
    Pin Offset (Inch)0.06
    Ring 1 Qty1
    Ring 1 Width5/64
    Ring 2 Qty1
    Ring 2 Width3/32
    Ring 3 Qty1
    Ring 3 Width3/16
    Standard SizeStandard
    UPC724956679706
    Warning: California’s Proposition 65
  • Features

    Sealed Power Engine Piston are featured as follows:
    • Cylinder sealing is improved for minimum blow-by.
    • It maintains standard ring gaps in the top groove.
    • Piston coated with DUROSHIELD on the skirt.
    • Engine life is extended by moly-graphite coating.
    • Friction reduction leads to higher fuel economy.
    • Protects against damage from inadequate lubrication during start-up.
    • Creating certified ISO & QS, manufacturing guarantees high performance and long product life that engine rebuilders cherish for good reasons.
    • Up-tilt ring grooves improve piston-to-ring sealing & provide great blow-by control.
    • A full range of internal replacement components designed specifically for application are included as part of Sealed Power engine products.
    The Sealed Power Engine Piston H304P is an engine component that is made with quality in mind to decrease the amount of blow-by through improved cylinder sealing and keep the top groove ring gaps within standard. With a Duroshield coated skirt, it has a moly-graphite coating which extends its life span and reduces friction thus enhancing fuel economy. The piston has been developed to prevent damage from inadequate lubrication on start-up. It guarantees performance and longer life for engine rebuilds since it is manufactured under ISO & QS certified standards. Casted using FM413 Eutectic aluminum containing 12% silicon, ensuring strength and durability. Besides, it also provides enhanced sealability in piston-to-rings due to ring grooves tilting up and better blow-by control. This product is included in Sealed Power comprehensive range of application-engineered internal replacement components for engines.
    The application-engineered internal engine replacement components are the main characteristic of Sealed Power, an automotive industry brand that is highly distinguished. Their products include pistons, piston rings, engine bearings, camshafts, oil pumps, timing components and valvetrain products. The brand's determination to keep creating new products ensures they offer top quality items for their customers.
  • Vehicle Fitment

    Year Make Model Trim Engine
    1963 Ford 300All Trims8 Cyl 6.4L
    1961-1970 Ford Country SedanAll Trims8 Cyl 6.4L
    1961-1970 Ford Country SquireAll Trims8 Cyl 6.4L
    1964-1970 Ford CustomAll Trims8 Cyl 6.4L
    1964 Ford Custom 500All Trims8 Cyl 6.4L
    1966-1970 Ford Custom 500All Trims8 Cyl 6.4L
    1961-1970 Ford FairlaneAll Trims8 Cyl 6.4L
    1961-1967 Ford GalaxieAll Trims8 Cyl 6.4L
    1962-1970 Ford Galaxie 500All Trims8 Cyl 6.4L
    1965-1970 Ford LTDAll Trims8 Cyl 6.4L
