2014 Volkswagen Passat
< Back to View All
Fuel Systems
- Department
- Brands
- Prices
Delphi® Fuel Pump Module Assembly for 2014 Volkswagen Passat
PartNumber: FG1964Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 10
- Flow Rating: 19 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Outlet Outside Diameter: 0.313''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 290.0
- Resistance Ohms Full: 50.0
- Strainer Included: Yes
- System Pressure: 58 psi
- Terminal Gender: Male
- Terminal Quantity: 5
- Terminal Type: Blade
- UPC: 689604269879
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2014 Volkswagen Passat Fuel Pump Module Assembly
Vehicle Fitment- 2014 Volkswagen Passat | All Trims | 5 Cyl 2.5L
$386.25
Autobest® Fuel Pump Module Assembly for 2014 Volkswagen Passat
PartNumber: F4749AProduct Specifications- Notes: Includes Fuel Pump, Fuel Pressure Regulator, Sending Unit, Float, Fuel Reservoir and Fuel Strainer
- Average Current Draw(A): 14
- Average Flow Rating(GPH): 41
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Racetrack
- Country of Orign: China
- Fuel Filter Included: No
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Gasket or Seal Included: No
- Gasket Or Seal Material: FKM
- Grade Type: Regular
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 59.5
- Minimum Pump Pressure (PSI): 56.6
- Mounting Hardware Included: No
- Negative Ground: Yes
- Outlet Quantity: 1
- Outlet Size: 5/16
- Outlet Type: Quick Connect
- Product Height (in): 7.52
- Product Length (in): 10.55
- Product Width (in): 8.58
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 51
- Resistance Ohms Full: 292
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 5
- Terminal Type: PIN
- UPC: 00072845147493
- Voltage: 12V
- Weight (lbs): 3.24
- Part Description: 2014 Volkswagen Passat Fuel Pump Module Assembly
Vehicle Fitment- 2014 Volkswagen Passat | All Trims | 6 Cyl 3.6L
- 2014 Volkswagen Passat | All Trims | 4 Cyl 1.8L
$112.89
Delphi® Direct Injection High Pressure Fuel Pump for 2014 Volkswagen Passat
PartNumber: HM10049Product Specifications- Drive Shaft Included: No
- Fuel Type: Gas
- Gasket or Seal Included: No
- Housing Color: Silver
- Housing Material: Metal
- In Tank or External: External
- Inlet Outside Diameter: 0.313''
- Inlet Type: Hose Bead
- Item Grade: Standard Replacement
- Mounting Hardware Included: No
- Outlet Fitting Thread Size: M14-1.5mm
- Outlet Quantity: 2
- Outlet Type: Female Threaded
- Package Contents: Direct Injection High Pressure Fuel Pump, Instruction Sheet
- Pump Type: Mechanical
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Blade
- UPC: 689604285374
- Wiring Harness Included: No
- Part Description: 2014 Volkswagen Passat Direct Injection High Pressure Fuel Pump
Vehicle Fitment- 2014 Volkswagen Passat | All Trims | 4 Cyl 1.8L
$325.48
Delphi® Fuel Pump Module Assembly for 2014 Volkswagen Passat
PartNumber: FG1268Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 8
- Flow Rating: 37 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Lock Ring Included: No
- Maximum Pressure: 87.0 PSI
- Outlet Outside Diameter: 0.313''
- Outlet Quantity: 1
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 52.0
- Resistance Ohms Full: 291.0
- Strainer Included: Yes
- System Pressure: 80 psi
- Terminal Gender: Male
- Terminal Quantity: 5
- Terminal Type: Blade
- UPC: 689604232354
- Vapor Pressure Sensor: No
- Voltage: 12.0 VDC
- Part Description: 2014 Volkswagen Passat Fuel Pump Module Assembly
Vehicle Fitment- 2014 Volkswagen Passat | All Trims | 6 Cyl 3.6L
- 2014 Volkswagen Passat | All Trims | 4 Cyl 1.8L
$279.58
Delphi® Diesel Fuel Pump Module Assembly for 2014 Volkswagen Passat
PartNumber: FG1608Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Average Current Draw: 10
- Average Flow Rating: 17
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Diesel
- Gasket or Seal Included: No
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Lock Ring Included: No
- Outlet Outside Diameter: 0.313
- Outlet Quantity: 2
- Outlet Type: Quick Connect
- Package Contents: Fuel Pump Module Assembly w/Float Arm, Instruction Sheet
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 52.0
- Resistance Ohms Full: 290.0
- Strainer Included: Yes
- System Pressure: 65 psi
- Terminal Gender: Male
- Terminal Quantity: 5
- Terminal Type: Blade
- UPC: 689604279809
- Vapor Pressure Sensor: No
- Voltage: 12.5
- Part Description: 2014 Volkswagen Passat Diesel Fuel Pump Module Assembly
Vehicle Fitment- 2014 Volkswagen Passat | All Trims | 4 Cyl 2.0L
$111.25
TYC® Fuel Pump Module Assembly for 2014 Volkswagen Passat
PartNumber: 150381-AProduct Specifications- UPC: 762405823812
- Part Description: 2014 Volkswagen Passat Fuel Pump Module Assembly
Vehicle Fitment- 2014 Volkswagen Passat | SE | 6 Cyl 3.6L
- 2014 Volkswagen Passat | SEL Premium | 6 Cyl 3.6L
- 2014 Volkswagen Passat | Wolfsburg Edition | 4 Cyl 1.8L
- 2014 Volkswagen Passat | S | 4 Cyl 1.8L
- 2014 Volkswagen Passat | SE | 4 Cyl 1.8L
- 2014 Volkswagen Passat | SEL Premium | 4 Cyl 1.8L
VEMO® Fuel Pump Module Assembly for 2014 Volkswagen Passat
PartNumber: V10-09-1235Product Specifications- Notes: Grade: OE; In Tank Assy
- Height [mm]: 120
- Length [mm]: 270
- Packaging Depth [cm]: 32,4
- Packaging height [cm]: 15,2
- Packaging width [cm]: 22,8
- Supplementary Article/Supplementary Info: with fuel sender unit
- Weight [kg]: 1,25
- Width [mm]: 160
- Part Description: 2014 Volkswagen Passat Fuel Pump Module Assembly
Vehicle Fitment- 2014 Volkswagen Passat | S | 5 Cyl 2.5L
- 2014 Volkswagen Passat | SE | 5 Cyl 2.5L
- 2014 Volkswagen Passat | Wolfsburg Edition | 5 Cyl 2.5L

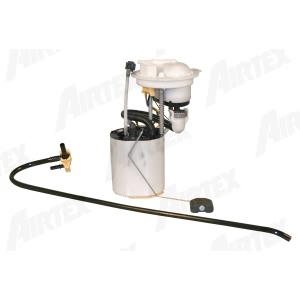

Airtex® Fuel Pump Module Assembly for 2014 Volkswagen Passat
PartNumber: E8738MProduct Specifications- Gasket or Seal Included: No
- Inlet Count: 1
- Inlet Type: STRAINER
- Internal or External: Internal
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 75
- Maximum Pressure (psi): 95
- Minimum Free Flow Rate (gph): 65
- Minimum Pressure (psi): 87.0
- Outlet Count: 1
- Outlet Size: 5/16"
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- UPC: 080044048466
- Voltage [V]: 12V
- Wiring Harness Included: No
- Part Description: 2014 Volkswagen Passat Fuel Pump Module Assembly
Vehicle Fitment- 2014 Volkswagen Passat | All Trims | 6 Cyl 3.6L
- 2014 Volkswagen Passat | All Trims | 4 Cyl 1.8L
Airtex® Fuel Pump Module Assembly for 2014 Volkswagen Passat
PartNumber: E9094MProduct Specifications- Gasket or Seal Included: No
- Inlet Count: 1
- Inlet Type: STRAINER
- Internal or External: Internal
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 65
- Maximum Pressure (psi): 65
- Minimum Free Flow Rate (gph): 55
- Minimum Pressure (psi): 62.0
- Outlet Count: 1
- Outlet Size: 5/16"
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- UPC: 080044057024
- Voltage [V]: 12V
- Wiring Harness Included: No
- Part Description: 2014 Volkswagen Passat Fuel Pump Module Assembly
Vehicle Fitment- 2014 Volkswagen Passat | All Trims | 5 Cyl 2.5L
VEMO® Direct Injection High Pressure Fuel Pump for 2014 Volkswagen Passat
PartNumber: V10-25-0014Product Specifications- Notes: Grade: Aftermarket; Direct Inj Fuel Pump;Grade: Aftermarket; BOSCH
- Height [mm]: 57
- Length [mm]: 106
- Packaging Depth [cm]: 11,6
- Packaging height [cm]: 17,7
- Packaging width [cm]: 20,7
- Weight [kg]: 0,772
- Width [mm]: 98
- Part Description: 2014 Volkswagen Passat Direct Injection High Pressure Fuel Pump
Vehicle Fitment- 2014 Volkswagen Passat | Wolfsburg Edition | 4 Cyl 1.8L
- 2014 Volkswagen Passat | All Trims | 4 Cyl 1.8L
- 2014 Volkswagen Passat | S | 4 Cyl 1.8L
- 2014 Volkswagen Passat | SE | 4 Cyl 1.8L
- 2014 Volkswagen Passat | SEL Premium | 4 Cyl 1.8L
Airtex® Fuel Pump Module Assembly for 2014 Volkswagen Passat
PartNumber: E9132MProduct Specifications- Notes: Includes Fuel Pump, Sending Unit, Float, Fuel Reservoir & Fuel Strainer
- Gasket Included: N
- Inlet Count: 1
- Inlet Type: STRAINER
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 85
- Maximum Pressure Rate (psi): 140
- Minimum Free Flow Rate (gph): 75
- Minimum Pressure Rate (psi): 130
- Outlet Count: 1
- Outlet Size: 5/16"
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- UPC: 080044060765
- Part Description: 2014 Volkswagen Passat Fuel Pump Module Assembly
Vehicle Fitment- 2014 Volkswagen Passat | All Trims | 4 Cyl 2.0L
Delphi® Direct Injection High Pressure Fuel Pump for 2014 Volkswagen Passat
PartNumber: HM10036Product Specifications- Drive Shaft Included: No
- Fuel Type: Gas
- Gasket or Seal Included: No
- Housing Color: Silver
- Housing Material: Metal
- In Tank or External: External
- Inlet Fitting Thread Size: M14-1.5
- Inlet Type: Threaded
- Item Grade: Standard Replacement
- Mounting Hardware Included: No
- Outlet Outside Diameter: 0.313
- Outlet Quantity: 2
- Outlet Type: Hose Bead
- Package Contents: Direct Injection High Pressure Fuel Pump, Instruction Sheet
- Pump Type: Mechanical
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Blade
- UPC: 689604284926
- Wiring Harness Included: No
- Part Description: 2014 Volkswagen Passat Direct Injection High Pressure Fuel Pump
Vehicle Fitment- 2014 Volkswagen Passat | All Trims | 6 Cyl 3.6L
