Check if it fits by entering your vehicle infoBrand | Delphi |

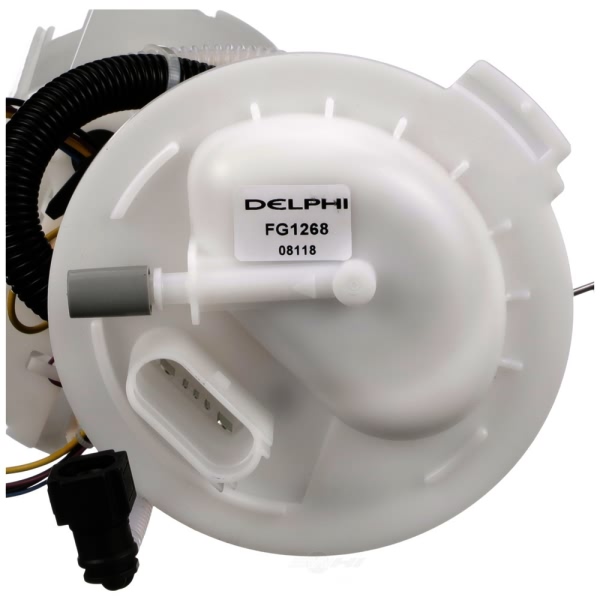

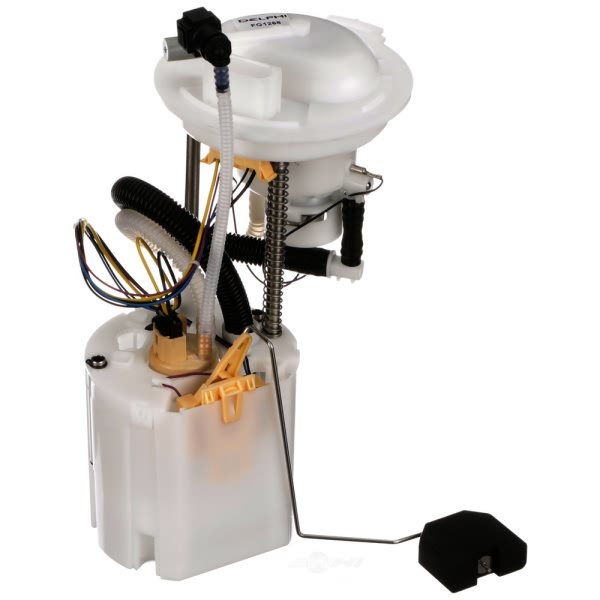

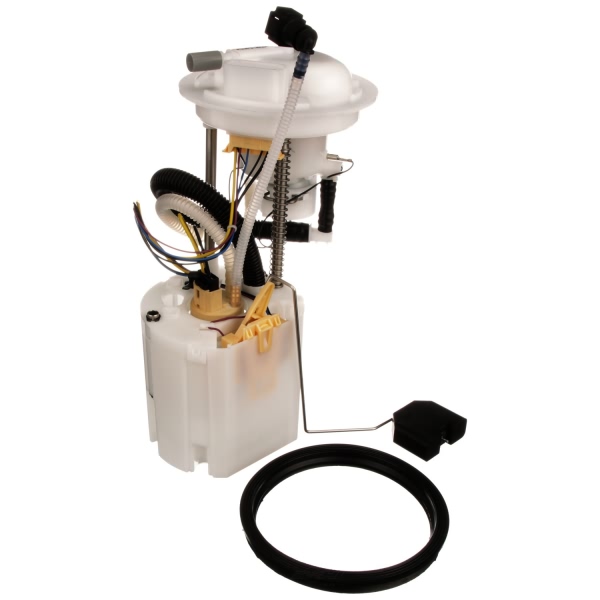

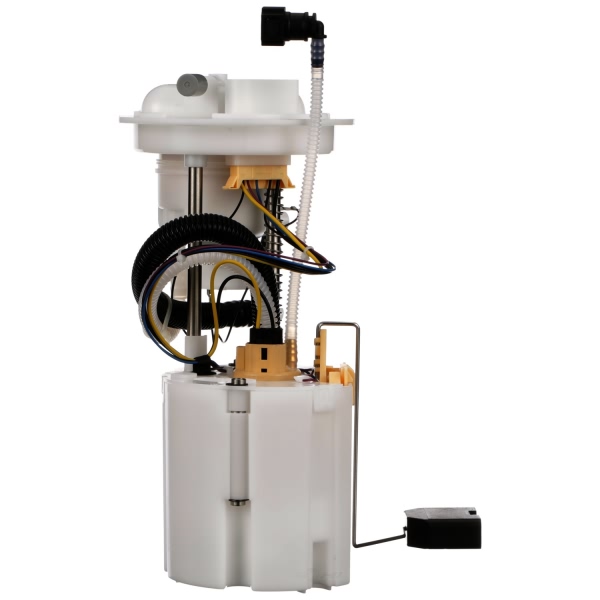

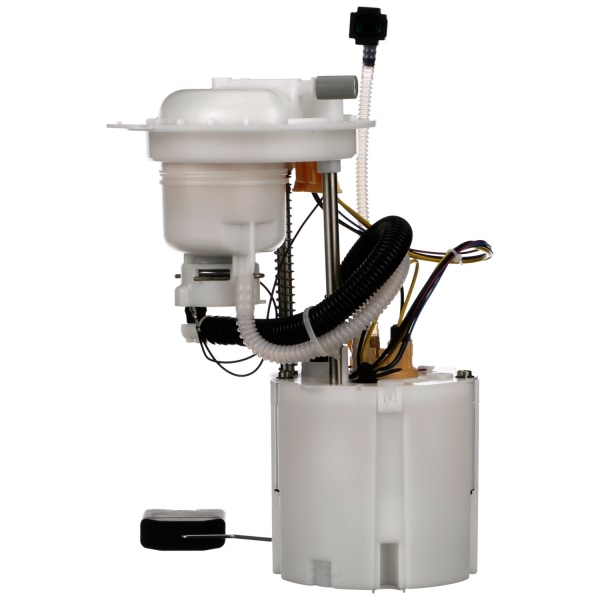

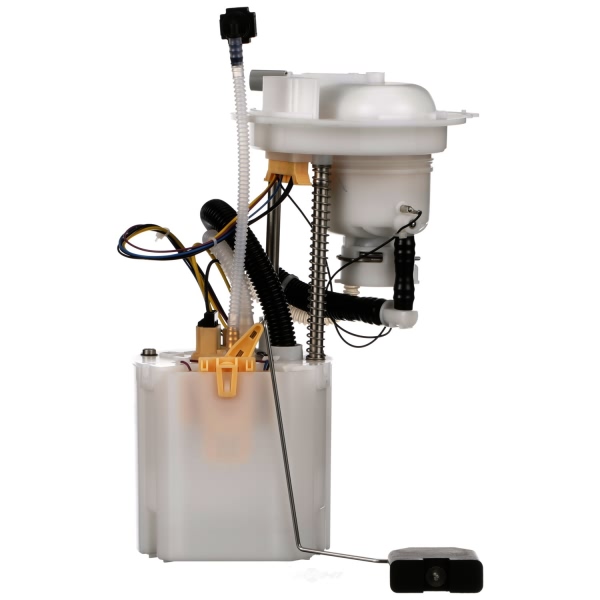

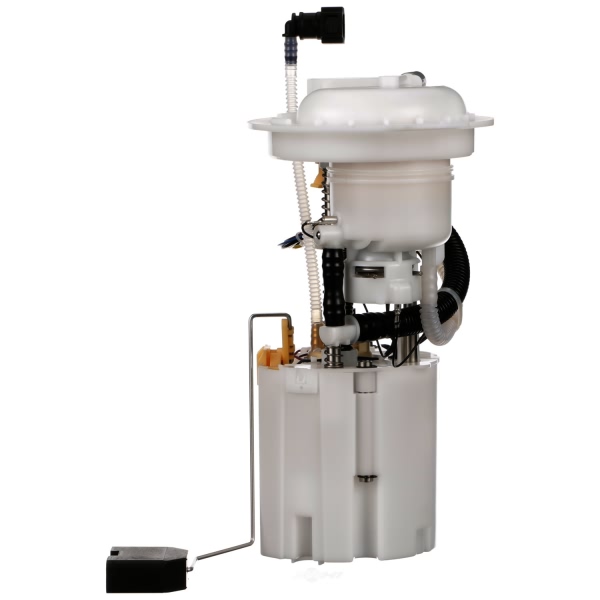

Part Number | FG1268 |

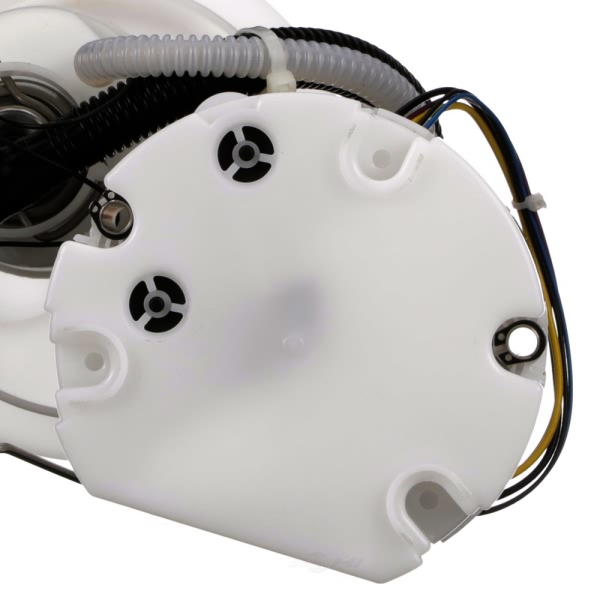

Part Description | Fuel Pump Module Assembly |
Current Draw | 8 |
Flow Rating | 37 gph |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | No |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Maximum Pressure | 87.0 PSI |
Outlet Outside Diameter | 0.313'' |
Outlet Quantity | 1 |

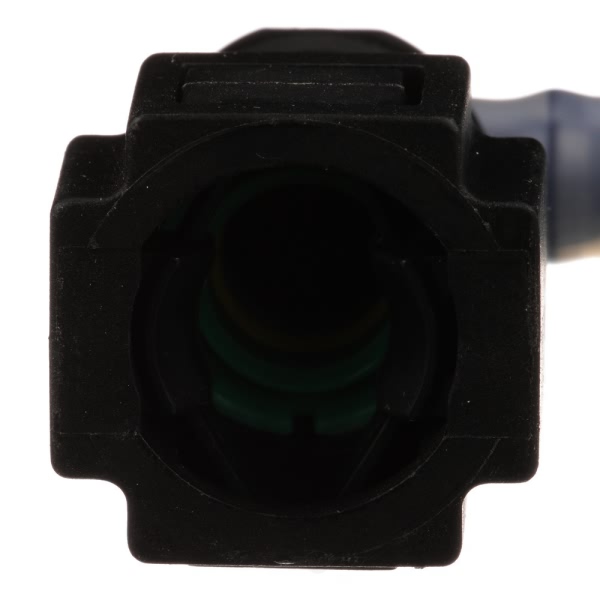

Outlet Type | Quick Connect |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 52.0 |
Resistance Ohms Full | 291.0 |
Strainer Included | Yes |
System Pressure | 80 psi |
Terminal Gender | Male |

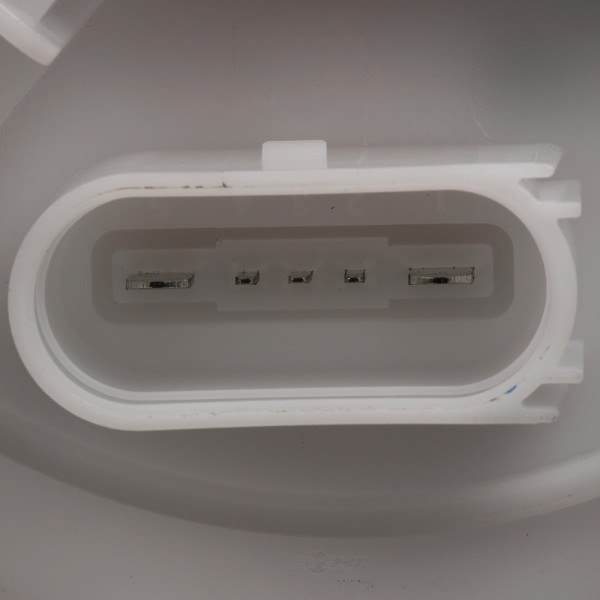

Terminal Quantity | 5 |
Terminal Type | Blade |
UPC | 689604232354 |
Vapor Pressure Sensor | No |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2009-2010 Volkswagen CC | VR6 | 6 Cyl 3.6L |
2009-2010 Volkswagen CC | VR6 Sport | 6 Cyl 3.6L |
2009-2017 Volkswagen CC | All Trims | 4 Cyl 2.0L |
2013 Volkswagen CC | Lux | 6 Cyl 3.6L |
2006-2008 Volkswagen Passat | All Trims | 6 Cyl 3.6L |
2006-2010 Volkswagen Passat | All Trims | 4 Cyl 2.0L |
2012-2018 Volkswagen Passat | All Trims | 6 Cyl 3.6L |
2014-2017 Volkswagen Passat | All Trims | 4 Cyl 1.8L |
2018 Volkswagen Passat | All Trims | 4 Cyl 2.0L |
