Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Current Draw: 11
Flow Rating: 21 gph
Fuel Level Sender Assembly Included: Yes
Fuel Type: Gas
Gasket or Seal Included: Yes
In Tank or External: In Tank
Inlet Type: Strainer
Internal or External Strainer: Internal
Item Grade: Standard Replacement
Maximum Pressure: 80.0 PSI
Outlet Outside Diameter: 0.375''
Outlet Quantity: 3
Outlet Type: Quick Connect
Pump Type: Electric
Regulator Included: Yes
Resistance Ohms Empty: 250.0
Resistance Ohms Full: 40.0
Strainer Included: Yes
System Pressure: 58 psi
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: Blade
UPC: 689604222775
Vapor Pressure Sensor: Yes
Voltage: 12.0 VDC

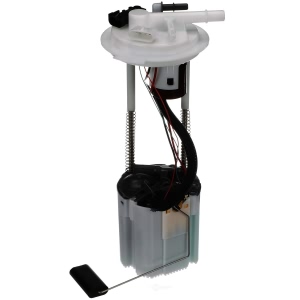

Part Description: 2013 Chevrolet Express 1500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
2013 Chevrolet Express 1500 | All Trims | 6 Cyl 4.3L
Notes: w/o Fuel Level Sensor;Exc. Left Side Rear Hinged Door;Includes Fuel Pump, Fuel Pressure Regulator, Fuel Tank Pressure Sensor, Fuel Reservoir, Fuel Strainer and Tank Seal
Average Current Draw(A): 12
Average Flow Rating(GPH): 43.58
Connector Gender: Male
Connector Quantity: 1
Connector Shape: Racetrack
Country of Orign: China
Fuel Filter Included: Yes
Fuel Sending Unit Included: Yes
Fuel Tank Pressure Sensor Included: Yes
Gasket or Seal Included: Yes
Gasket Or Seal Material: NBR
Grade Type: Performance
Housing Material: POM
In Tank or External: In Tank
Inlet Size: 0.433
Inlet Type: Strainer
Installation Warnings: No
Internal Or External Strainer: Internal
Lock Ring Included: No
Maximum Pump Pressure (PSI): 64
Minimum Pump Pressure (PSI): 59
Mounting Hardware Included: No
Negative Ground: Yes
Outlet Quantity: 1
Outlet Size: 3/8
Outlet Type: Quick Connect
Product Height (in): 7.13
Product Length (in): 14.76
Product Width (in): 10.06
Pump Type: Turbine
Regulator Included: Yes
Resistance Ohms Empty: 252
Resistance Ohms Full: 42
Strainer Included: No
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: PIN
UPC: 00072845150509
Voltage: 12V
Weight (lbs): 3.19
Wire Harness Included: No
Part Description: 2013 Chevrolet Express 1500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
2013 Chevrolet Express 1500 | All Trims | 6 Cyl 4.3L
Notes: Except Left Side Rear Hinged Door;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
Notes: Includes Fuel Pump, Fuel Pressure Regulator, Fuel Tank Pressure Sensor, Fuel Reservoir, Fuel Strainer and Tank Seal;w/Left Hand Side Rear Hinged Door, w/o Fuel Level Sensor
Average Current Draw(A): 14.5
Average Flow Rating(GPH): 59.43
Connector Gender: Male
Connector Quantity: 1
Connector Shape: Racetrack
Country of Orign: China
Fuel Filter Included: Yes
Fuel Sending Unit Included: Yes
Fuel Tank Pressure Sensor Included: Yes
Gasket or Seal Included: Yes
Gasket Or Seal Material: NBR
Grade Type: Performance
Housing Material: POM
In Tank or External: In Tank
Inlet Type: Strainer
Installation Warnings: No
Internal Or External Strainer: Internal
Lock Ring Included: No
Maximum Pump Pressure (PSI): 65
Minimum Pump Pressure (PSI): 55
Mounting Hardware Included: No
Negative Ground: Yes
Outlet Quantity: 1
Outlet Size: 3/8
Outlet Type: Quick Connect
Product Height (in): 6.38
Product Length (in): 15.43
Product Width (in): 9.17
Pump Type: Turbine
Regulator Included: Yes
Resistance Ohms Empty: 250
Resistance Ohms Full: 40
Strainer Included: No
Terminal Gender: Male
Terminal Quantity: 4
Terminal Type: PIN
UPC: 00072845150592
Voltage: 12V
Weight (lbs): 3.09
Wire Harness Included: No
Part Description: 2013 Chevrolet Express 1500 Fuel Pump Module Assembly
More Info
Vehicle Fitment
2013 Chevrolet Express 1500 | All Trims | 6 Cyl 4.3L
