Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Autobest |
Part Number | F5050A |

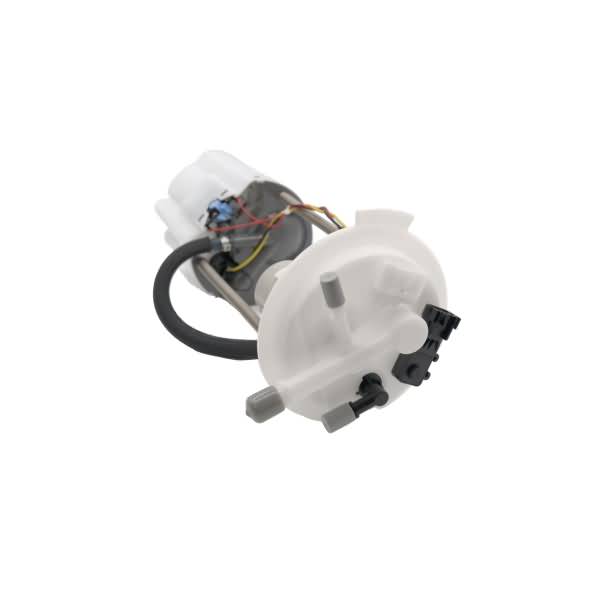

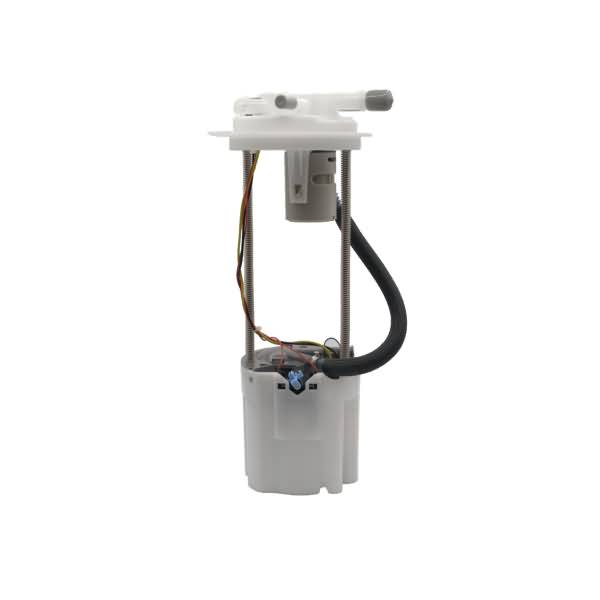

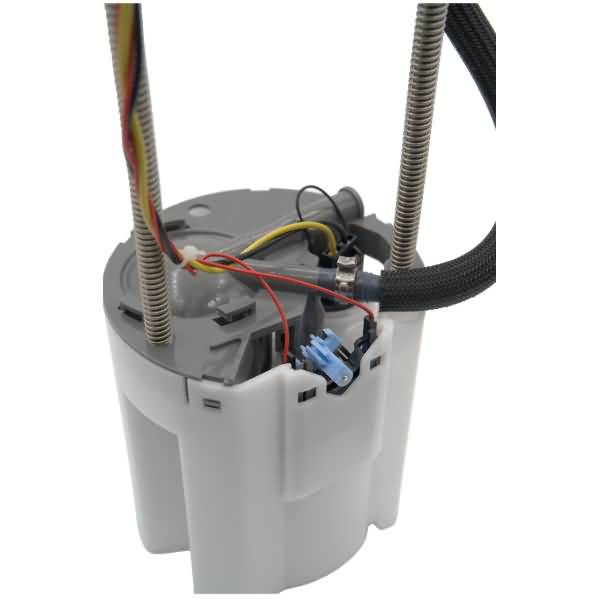

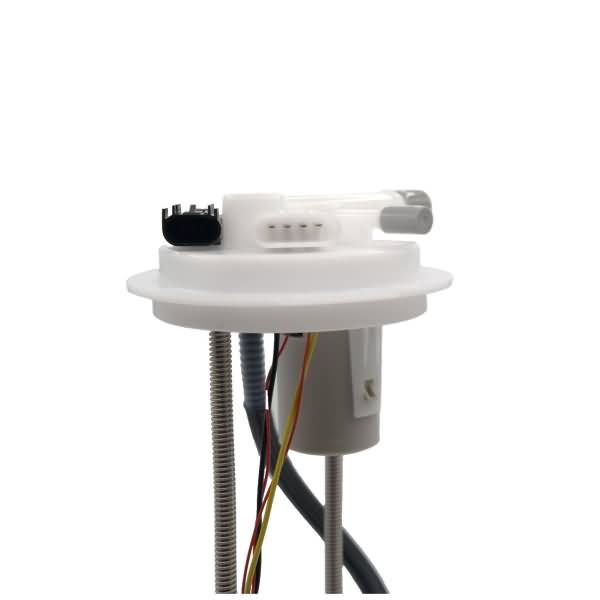

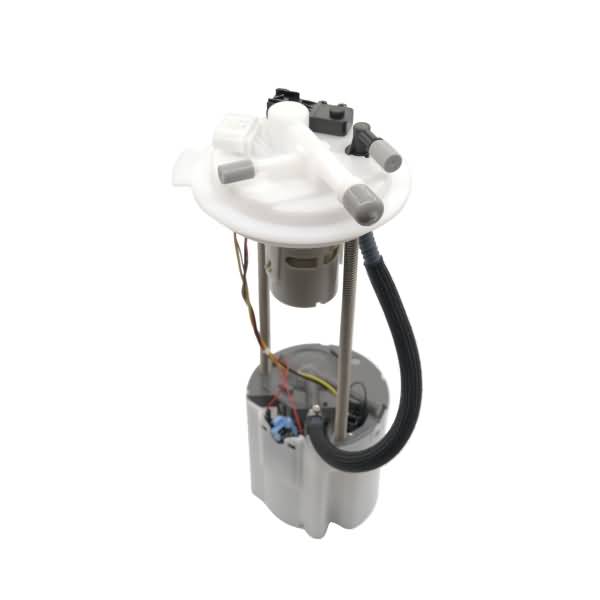

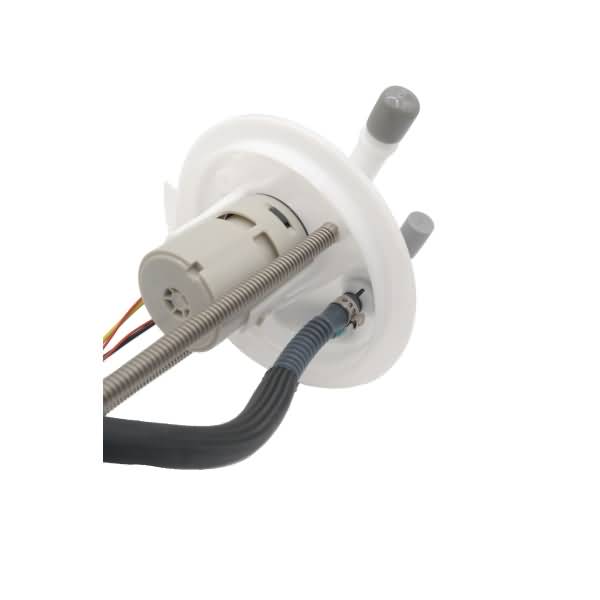

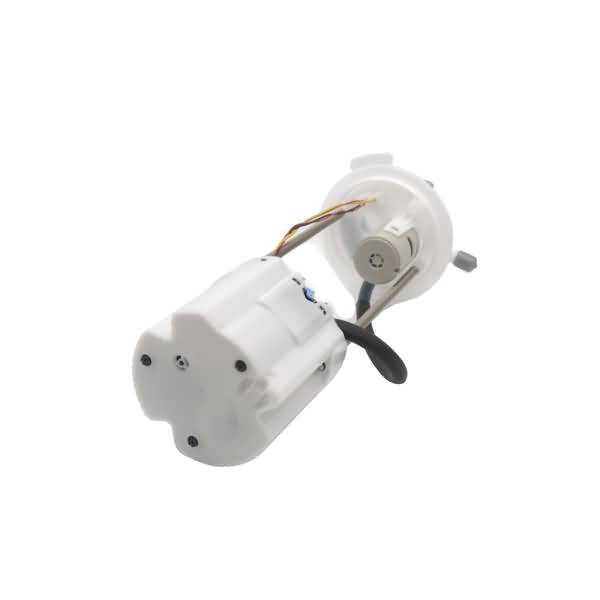

Part Description | Fuel Pump Module Assembly |
Average Current Draw(A) | 12 |
Average Flow Rating(GPH) | 43.58 |
Connector Gender | Male |
Connector Quantity | 1 |
Connector Shape | Racetrack |
Country of Orign | China |
Fuel Filter Included | Yes |
Fuel Sending Unit Included | Yes |
Fuel Tank Pressure Sensor Included | Yes |
Fuel Type | Turbine |
Gasket or Seal Included | Yes |
Gasket Or Seal Material | NBR |
Grade Type | Performance |
Housing Material | POM |
In Tank or External | In Tank |
Inlet Size | 0.433 |
Inlet Type | Strainer |
Installation Warnings | No |
Internal or External | Internal |
Internal Or External Strainer | Internal |
Lock Ring Included | No |
Maximum Free Flow (GPH) | 79 |
Maximum Pump Pressure (PSI) | 64 |
Minimum Free Flow (GPH) | 67.3 |
Minimum Pump Pressure (PSI) | 59 |
Mounting Hardware Included | No |
Negative Ground | Yes |
Outlet Quantity | 1 |
Outlet Size | 3/8 |
Outlet Type | Quick Connect |
Product Height (in) | 7.13 |
Product Length (in) | 14.76 |
Product Width (in) | 10.06 |
Pump Type | Turbine |
Regulator Included | Yes |
Resistance Ohms Empty | 252 |
Resistance Ohms Full | 42 |
Strainer Included | No |
Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | PIN |
UPC | 00072845150509 |
Voltage | 12V |
Weight (lbs) | 3.19 |
Wire Harness Included | No |
Year Make Model | Trim | Engine |
---|---|---|
2010-2014 Chevrolet Express 1500 | All Trims | 6 Cyl 4.3L |
2010-2015 Chevrolet Express 2500 | All Trims | 8 Cyl 4.8L |
2010-2015 Chevrolet Express 2500 | All Trims | 8 Cyl 6.0L |
2010-2015 Chevrolet Express 3500 | All Trims | 8 Cyl 4.8L |
2010-2015 Chevrolet Express 3500 | All Trims | 8 Cyl 6.0L |
2010-2014 GMC Savana 1500 | All Trims | 6 Cyl 4.3L |
2010-2015 GMC Savana 2500 | All Trims | 8 Cyl 4.8L |
2010-2015 GMC Savana 2500 | All Trims | 8 Cyl 6.0L |
2010-2015 GMC Savana 3500 | All Trims | 8 Cyl 4.8L |
2010-2015 GMC Savana 3500 | All Trims | 8 Cyl 6.0L |
