2009 Pontiac Solstice
< Back to View All
Fuel Systems
- Department
- Brands
- Prices
Delphi® Direct Injection High Pressure Fuel Pump for 2009 Pontiac Solstice
PartNumber: HM10029Product Specifications- Drive Shaft Included: No
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- Housing Color: Silver
- Housing Material: Metal
- In Tank or External: External
- Inlet Fitting Thread Size: M14-1.5mm
- Inlet Type: Threaded
- Item Grade: Standard Replacement
- Mounting Hardware Included: No
- Outlet Fitting Thread Size: M14-1.5mm
- Outlet Quantity: 2
- Outlet Type: Threaded
- Pump Type: Mechanical
- Terminal Gender: Male
- Terminal Quantity: 2
- Terminal Type: Blade
- UPC: 689604284247
- Wiring Harness Included: No
- Part Description: 2009 Pontiac Solstice Direct Injection High Pressure Fuel Pump
Vehicle Fitment- 2009 Pontiac Solstice | All Trims | 4 Cyl 2.0L
$632.46
OEM (Genuine) 2009 Pontiac Solstice Fuel Pump
PartNumber: 19257688
Product Specifications- Notes: Solstice; 2.4l; 2.4 Liter
- Other Names: Fuel Pump, Fuel Pump Assembly
- Item Dimensions: 13.5 x 12.2 x 11.2 inches
- Item Weight: 4.10 Pounds
- Fitment Type: Direct Replacement
- Replaces: 19168378
- Part Description: 2009 Pontiac Solstice Fuel Pump
Vehicle Fitment- 2009 Pontiac Solstice | Base | 4 Cyl 2.4 L GAS
$331.24 MSRP:$602.28You Save: $271.04 (46%)
Delphi® Fuel Pump Module Assembly for 2009 Pontiac Solstice
PartNumber: FG1805Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 10
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 3
- Outlet Type: Quick Connect
- Package Contents: Fuel Pump Module Assembly withFloat Arm, Seals, Instruction Sheet
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 250.0
- Resistance Ohms Full: 40.0
- Strainer Included: Yes
- System Pressure: 58 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604285558
- Vapor Pressure Sensor: Yes
- Voltage: 12.0 VDC
- Part Description: 2009 Pontiac Solstice Fuel Pump Module Assembly
Vehicle Fitment- 2009 Pontiac Solstice | All Trims | 4 Cyl 2.0L
$403.60
Delphi® Fuel Pump Module Assembly for 2009 Pontiac Solstice
PartNumber: FG1804Product Specifications- Notes: Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Lock Ring Included: No
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 3
- Outlet Type: Quick Connect
- Package Contents: Fuel Pump Module Assembly withFloat Arm, Seals, Instruction Sheet
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 40.0
- Resistance Ohms Full: 250.0
- Strainer Included: Yes
- System Pressure: 51 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604290941
- Vapor Pressure Sensor: Yes
- Voltage: 12.0 VDC
- Part Description: 2009 Pontiac Solstice Fuel Pump Module Assembly
Vehicle Fitment- 2009 Pontiac Solstice | All Trims | 4 Cyl 2.4L
$297.11OEM (Genuine) 2009 Pontiac Solstice Fuel Pump
PartNumber: 19257689Product Specifications- Notes: Solstice; 2.0l; 2.0 Liter
- Other Names: Fuel Pump, Fuel Pump Assembly
- Item Dimensions: 13.3 x 12.7 x 11.6 inches
- Item Weight: 4.10 Pounds
- Fitment Type: Direct Replacement
- Replaces: 19210221, 19168380
- Part Description: 2009 Pontiac Solstice Fuel Pump
Vehicle Fitment- 2009 Pontiac Solstice | GXP | 4 Cyl 2.0 L GAS

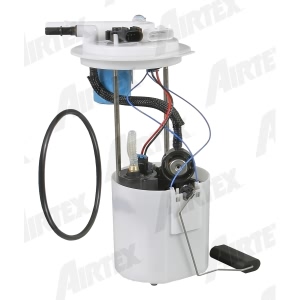

Airtex® Fuel Pump Module Assembly for 2009 Pontiac Solstice
PartNumber: E3785MProduct Specifications- Notes: Incls Fuel Pump, Fuel Pressure Reg, Fuel Tank Pressure Sensor, Sending Unit, Float, Fuel Reservoir, Fuel Strainer & Tank Seal
- Gasket or Seal Included: Yes
- Inlet Attachment: Strainer
- Inlet Count: 1
- Inlet Type: STRAINER
- Internet Product Code (IPC): C1E925CC510
- Item Grade: OEM Standard
- Item has MSDS (SDS): No
- Maximum Pressure (psi): 60
- MFG Brand Name: Airtex Products
- MFG Model # (Series): E3785M
- Minimum Pressure (psi): 54
- Outlet Attachment: Quick Connect
- Outlet Count: 1
- Outlet Size: 3/8
- Outlet Type: QUICK CONNECT
- Package Quantity: 1
- Supplier Company Name: Airtex Products
- UPC: 080044039815
- Part Description: 2009 Pontiac Solstice Fuel Pump Module Assembly
Vehicle Fitment- 2009 Pontiac Solstice | All Trims | 4 Cyl 2.4L
Autobest® Fuel Pump Module Assembly for 2009 Pontiac Solstice
PartNumber: F2796AProduct Specifications- Notes: Includes Fuel Pump, Fuel Pressure Regulator, Fuel Tank Pressure Sensor, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal
- Average Current Draw(A): 9.9
- Average Flow Rating(GPH): 31.4
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Racetrack
- Country of Orign: China
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Fuel Type: Turbine
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- Height (in.): 8.5
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Length (in.): 18
- Life Cycle Status Code: Available to Order
- Lock Ring Included: No
- Maximum Free Flow (GPH): 60
- Maximum Pump Pressure (PSI): 60
- Minimum Free Flow (GPH): 50
- Minimum Pump Pressure (PSI): 54
- Mounting Hardware Included: No
- Negative Ground: Yes
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Package Contents: Pump & Kit
- Product Height (in): 7.83
- Product Length (in): 12.48
- Product Width (in): 8.58
- Regulator Included: Yes
- Resistance Ohms Empty: 250
- Resistance Ohms Full: 40
- Short Description: Electric Fuel Pump
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845127969
- Voltage: 12V
- Weight (lbs): 3.33
- Weight (lbs.): 3.6
- Width (in.): 7
- Wire Harness Included: No
- Part Description: 2009 Pontiac Solstice Fuel Pump Module Assembly
Vehicle Fitment- 2009 Pontiac Solstice | All Trims | 4 Cyl 2.4L

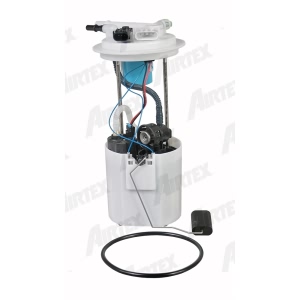

Airtex® Fuel Pump Module Assembly for 2009 Pontiac Solstice
PartNumber: E3795MProduct Specifications- Notes: Incls Fuel Pump, Fuel Pressure Reg, Fuel Tank Pressure Sensor, Sending Unit, Float, Fuel Reservoir, Fuel Strainer & Tank Seal
- Gasket Included: Y
- Inlet Count: 1
- Inlet Type: STRAINER
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 75
- Maximum Pressure Rate (psi): 70
- Minimum Free Flow Rate (gph): 65
- Minimum Pressure Rate (psi): 60
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- UPC: 080044046639
- Part Description: 2009 Pontiac Solstice Fuel Pump Module Assembly
Vehicle Fitment- 2009 Pontiac Solstice | GXP | 4 Cyl 2.0L
