Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Delphi |
Part Number | FG1804 |

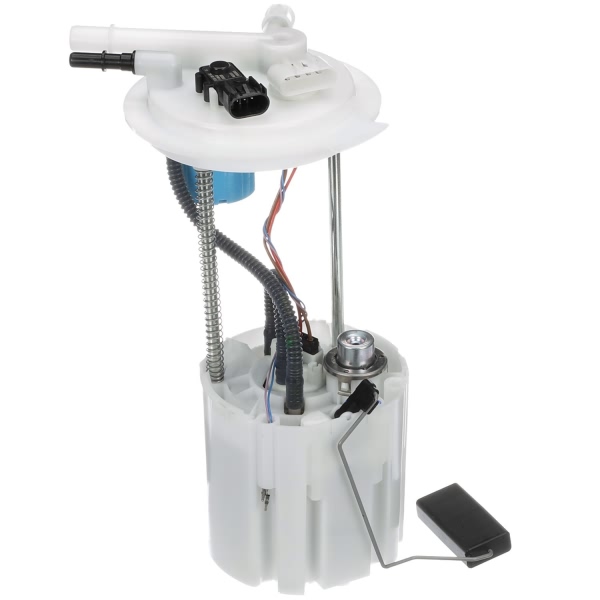

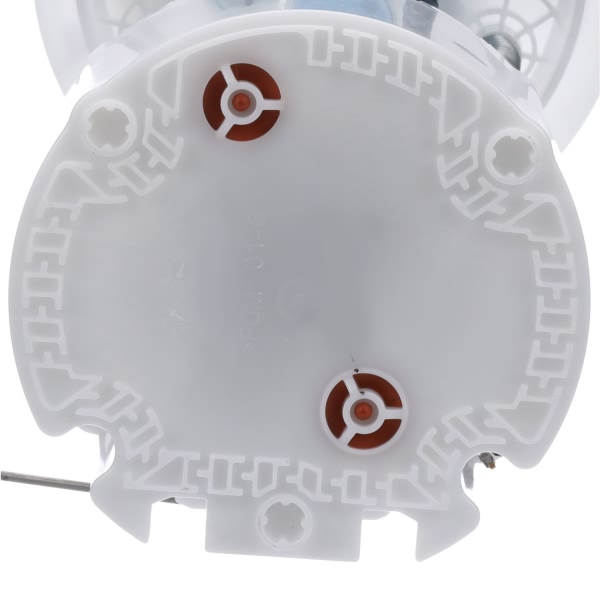

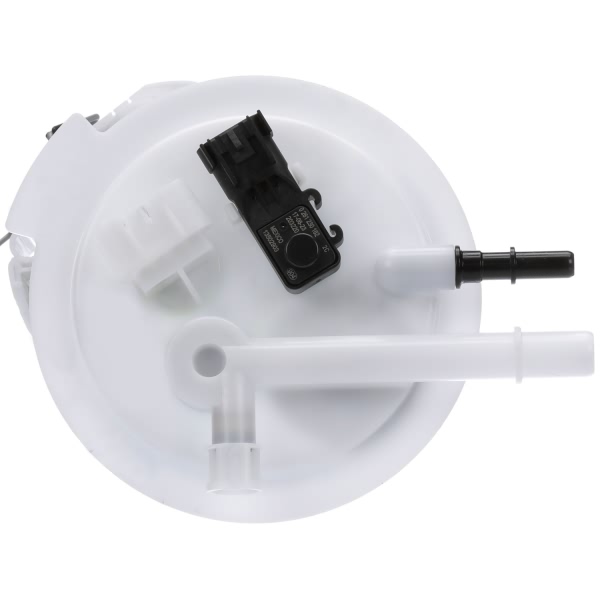

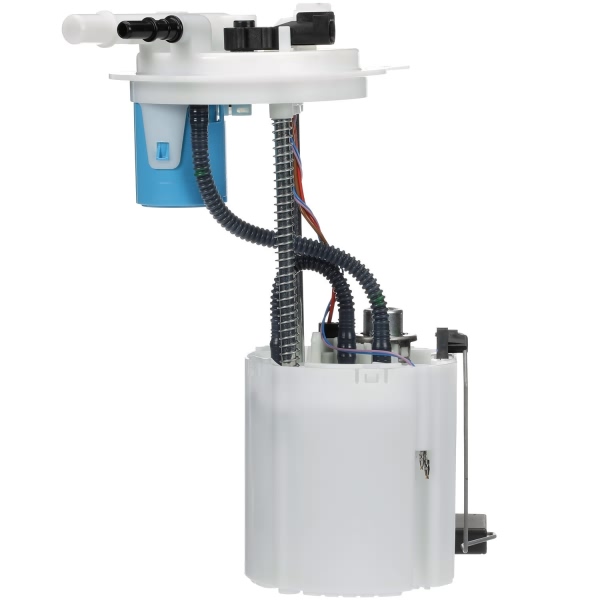

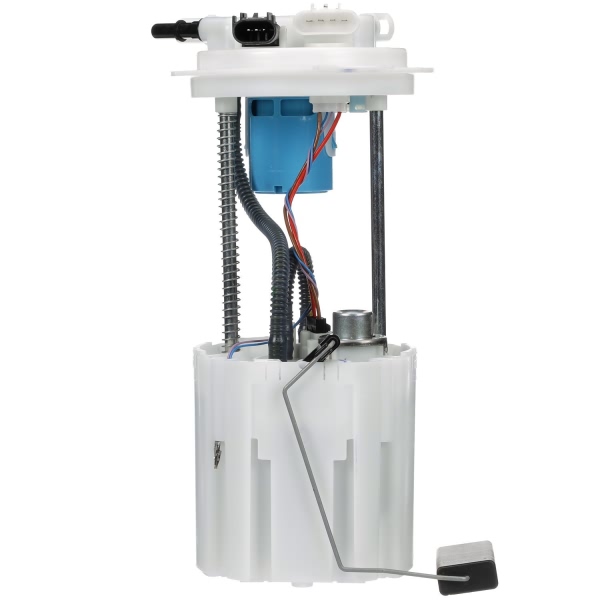

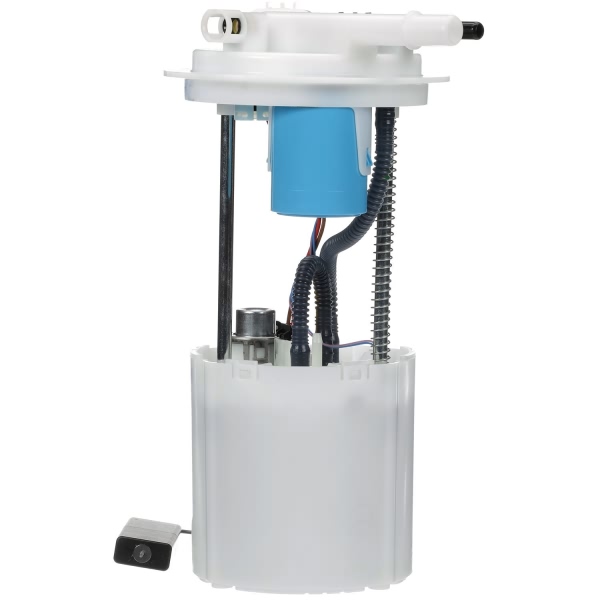

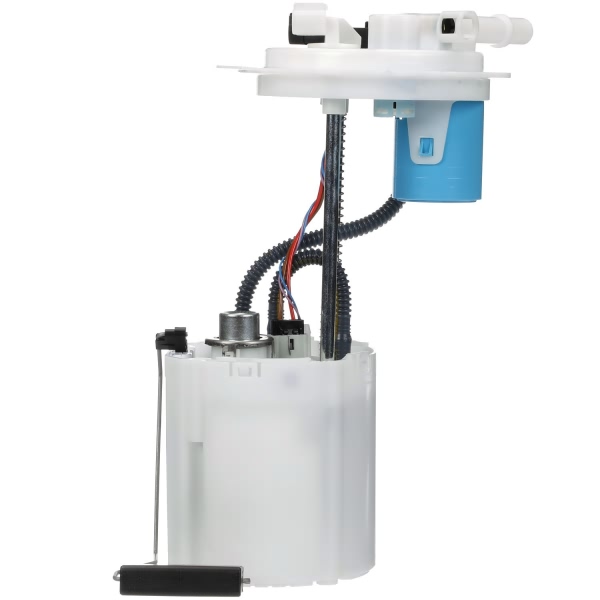

Part Description | Fuel Pump Module Assembly |
Fuel Level Sender Assembly Included | Yes |
Fuel Type | Gas |
Gasket or Seal Included | Yes |
In Tank or External | In Tank |
Inlet Type | Strainer |
Internal or External Strainer | Internal |
Item Grade | Standard Replacement |
Lock Ring Included | No |
Outlet Outside Diameter | 0.375'' |
Outlet Quantity | 3 |

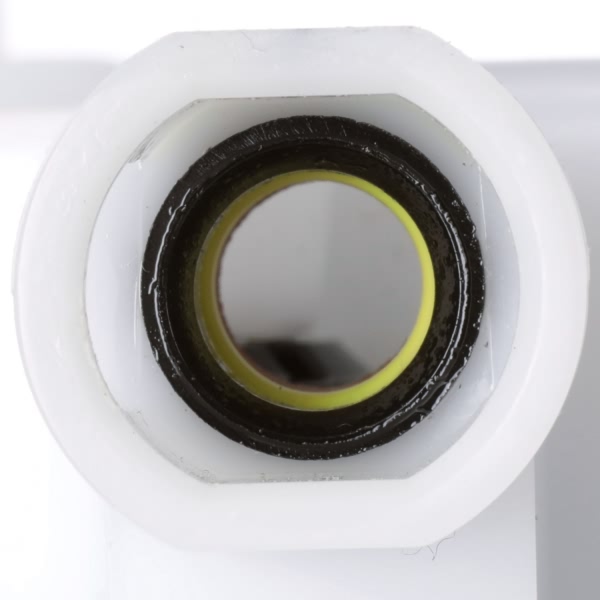

Outlet Type | Quick Connect |

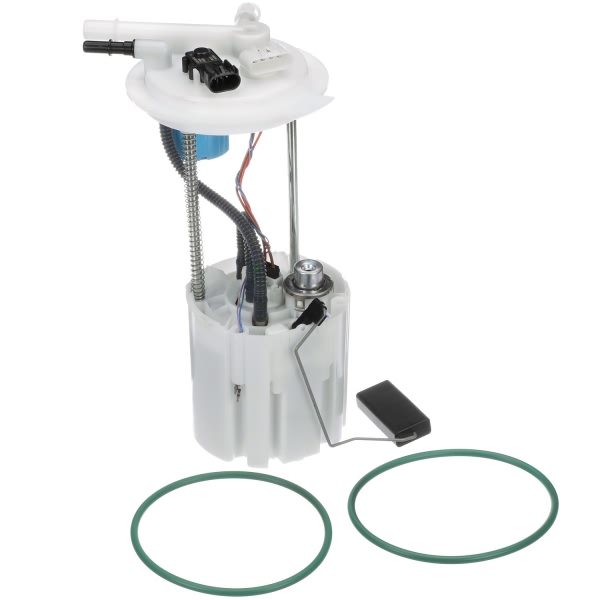

Package Contents | Fuel Pump Module Assembly withFloat Arm, Seals, Instruction Sheet |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 40.0 |
Resistance Ohms Full | 250.0 |
Strainer Included | Yes |
System Pressure | 51 psi |

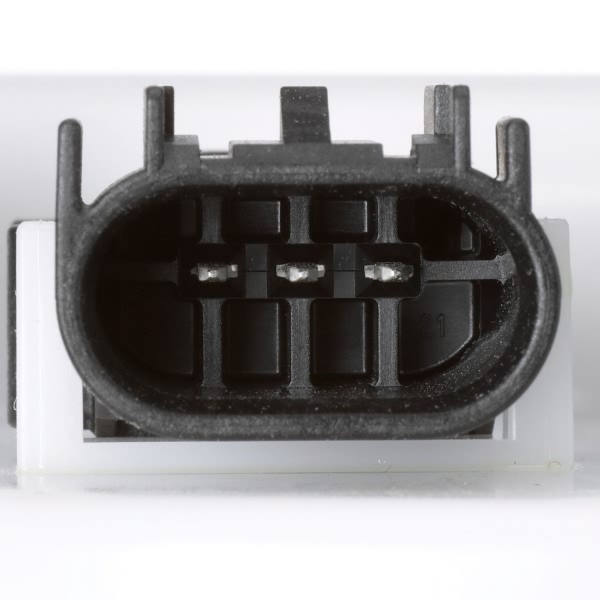

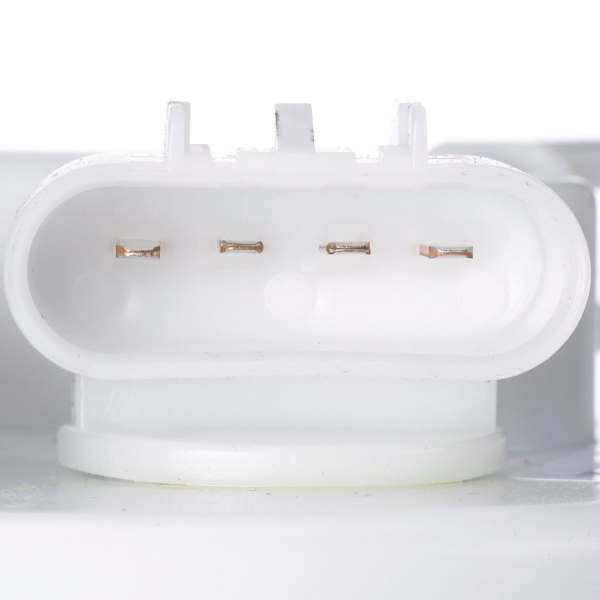

Terminal Gender | Male |
Terminal Quantity | 4 |
Terminal Type | Blade |
UPC | 689604290941 |
Vapor Pressure Sensor | Yes |
Voltage | 12.0 VDC |
Year Make Model | Trim | Engine |
---|---|---|
2008-2009 Pontiac Solstice | All Trims | 4 Cyl 2.4L |
2008-2010 Saturn Sky | All Trims | 4 Cyl 2.4L |
