Delphi® Fuel Pump Module Assembly for 2009 GMC Savana 1500
PartNumber: FG2096Product Specifications- Notes: RPO Code E26 - w/Left Side Rear Hinged Door;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 11
- Flow Rating: 37 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Maximum Pressure: 120.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 3
- Outlet Type: Quick Connect
- Package Contents: Fuel Pump Module Assembly withFloat Arm, Seals, Instruction Sheet
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 250.0
- Resistance Ohms Full: 40.0
- Strainer Included: Yes
- System Pressure: 54 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604285152
- Vapor Pressure Sensor: Yes
- Voltage: 12.0 VDC
- Part Description: 2009 GMC Savana 1500 Fuel Pump Module Assembly
Vehicle Fitment- 2009 GMC Savana 1500 | All Trims | 6 Cyl 4.3L
$222.74
OEM (Genuine) 2009 GMC Savana 1500 Fuel Pump
PartNumber: 19331939
Product Specifications- Notes: Express, Savana; In Tank; Gas Engines; Cargo, Passenger Van; 4.3l; W/O Left Rear Door;Express, Savana; In Tank; Gas Engines; Cargo, Passenger Van; 4.8l, 5.3l; W/O Left Rear Door
- Other Names: Fuel Pump
- Item Dimensions: 17.3 x 13.6 x 10.6 inches
- Item Weight: 2.80 Pounds
- Fitment Type: Direct Replacement
- Replaces: 19303380, 19153039, 88965414, 19133519
- Part Description: 2009 GMC Savana 1500 Fuel Pump
Vehicle Fitment- 2009 GMC Savana 1500 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
$331.30 MSRP:$625.12You Save: $293.82 (48%)
Delphi® Fuel Pump Module Assembly for 2009 GMC Savana 1500
PartNumber: FG1083Product Specifications- Notes: Except Left Side Rear Hinged Door;Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, Delphi recommends cleaning the fuel tank before installing a new pump. Use of fuel tank cleaning kit FC01 is recommended.
- Current Draw: 11
- Flow Rating: 37 gph
- Fuel Level Sender Assembly Included: Yes
- Fuel Type: Gas
- Gasket or Seal Included: Yes
- In Tank or External: In Tank
- Inlet Type: Strainer
- Internal or External Strainer: Internal
- Item Grade: Standard Replacement
- Lock Ring Included: No
- Maximum Pressure: 80.0 PSI
- Outlet Outside Diameter: 0.375''
- Outlet Quantity: 3
- Outlet Type: Quick Connect
- Pump Type: Electric
- Regulator Included: Yes
- Resistance Ohms Empty: 250.0
- Resistance Ohms Full: 40.0
- Strainer Included: Yes
- System Pressure: 54 psi
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: Blade
- UPC: 689604217399
- Vapor Pressure Sensor: Yes
- Voltage: 12.0 VDC
- Part Description: 2009 GMC Savana 1500 Fuel Pump Module Assembly
Vehicle Fitment- 2009 GMC Savana 1500 | All Trims | 6 Cyl 4.3L
$199.71
OEM (Genuine) 2009 GMC Savana 1500 Fuel Pump Assembly
PartNumber: 19207301
Product Specifications- Notes: 6.6 Liter Diesel, W/O 6.6 Liter, 4.3, 4.8, 6.0 Liter
- Item Dimensions: 16.5 x 13.8 x 10.3 inches
- Item Weight: 3.30 Pounds
- Replaced by: 19331958
- Part Description: 2009 GMC Savana 1500 Fuel Pump Assembly
Vehicle Fitment- 2009 GMC Savana 1500 | Base | 6 Cyl 4.3 L GAS
$231.22 MSRP:$436.28You Save: $205.06 (48%)OEM (Genuine) 2009 GMC Savana 1500 Fuel Pump
PartNumber: 19331946
Product Specifications- Notes: Express, Savana; In Tank; Gas Engines; Cargo, Passenger Van; 4.3l; All;Express, Savana; In Tank; Gas Engines; Cargo, Passenger Van; 4.8l, 5.3l; All
- Other Names: Fuel Pump, Fuel Pump Assembly
- Item Dimensions: 16.9 x 13.7 x 10.4 inches
- Item Weight: 2.90 Pounds
- Fitment Type: Direct Replacement
- Replaces: 19303381, 19133516, 19153042
- Part Description: 2009 GMC Savana 1500 Fuel Pump
Vehicle Fitment- 2009 GMC Savana 1500 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
OEM (Genuine) 2009 GMC Savana 1500 Fuel Pump
PartNumber: 19352891Product Specifications- Notes: Express, Savana; In Tank; Gas Engines; Cargo, Passenger Van; Commercial Cutaway; W/55 Gallon Tank; All
- Other Names: Fuel Pump
- Item Dimensions: 16.8 x 13.7 x 10.1 inches
- Item Weight: 3.10 Pounds
- Fitment Type: Direct Replacement
- Replaces: 19331312, 19153056, 19303411, 19133502
- Part Description: 2009 GMC Savana 1500 Fuel Pump
Vehicle Fitment- 2009 GMC Savana 1500 | Base, LS, LT | 6 Cyl 4.3 L GAS, 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS
OEM (Genuine) 2009 GMC Savana 1500 Fuel Pump Assembly
PartNumber: 19181056Product Specifications- Other Names: Fuel Pump Assembly
- Item Dimensions: 13.4 x 11.1 x 11.6 inches
- Item Weight: 0.90 Pounds
- Fitment Type: Direct Replacement
- Replaced by: 19368792
- Part Description: 2009 GMC Savana 1500 Fuel Pump Assembly
Vehicle Fitment- 2009 GMC Savana 1500 | Base, LS, LT | 8 Cyl 5.3 L FLEX, 8 Cyl 5.3 L GAS

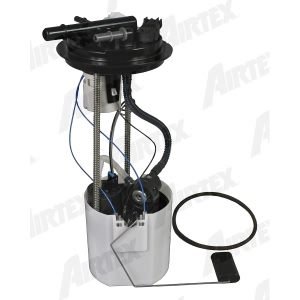

Airtex® Fuel Pump Module Assembly for 2009 GMC Savana 1500
PartNumber: E3788MProduct Specifications- Notes: Exc Left Hand Rear Hinged Door, w/Fuel Level Sensor; Incls Fuel Pump, Fuel Pressure Reg, Fuel Tank Pressure Sensor, Sending Unit, Float, Fuel Reservoir, Fuel Strainer & Tank Seal
- Gasket Included: Y
- Inlet Count: 1
- Inlet Type: STRAINER
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 85
- Maximum Pressure Rate (psi): 90
- Minimum Free Flow Rate (gph): 75
- Minimum Pressure Rate (psi): 80
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- UPC: 080044055891
- Part Description: 2009 GMC Savana 1500 Fuel Pump Module Assembly
Vehicle Fitment- 2009 GMC Savana 1500 | All Trims | 8 Cyl 5.3L
Autobest® Fuel Pump Module Assembly for 2009 GMC Savana 1500
PartNumber: F2790AProduct Specifications- Notes: Includes Fuel Pump, Fuel Pressure Regulator, Fuel Tank Pressure Sensor, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,FLEX;w/Left Side Rear Hinged Door, w/Fuel Level Sensor
- Average Current Draw(A): 13.75
- Average Flow Rating(GPH): 33
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Racetrack
- Country of Orign: China
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 90
- Minimum Pump Pressure (PSI): 80
- Mounting Hardware Included: No
- Negative Ground: Yes
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 6.44
- Product Length (in): 15.2
- Product Width (in): 9.93
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 250
- Resistance Ohms Full: 40
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845127907
- Voltage: 12V
- Weight (lbs): 3.34
- Wire Harness Included: No
- Part Description: 2009 GMC Savana 1500 Fuel Pump Module Assembly
Vehicle Fitment- 2009 GMC Savana 1500 | All Trims | 8 Cyl 5.3L

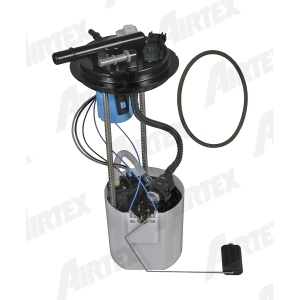

Airtex® Fuel Pump Module Assembly for 2009 GMC Savana 1500
PartNumber: E3789MProduct Specifications- Notes: w/Left Side Rear Hinged Door, w/Fuel Level Sensor; Incls Fuel Pump, Fuel Pressure Reg, Fuel Tank Pressure Sensor, Sending Unit, Float, Fuel Reservoir, Fuel Strainer & Tank Seal
- Gasket Included: Y
- Inlet Count: 1
- Inlet Type: STRAINER
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 80
- Maximum Pressure Rate (psi): 90
- Minimum Free Flow Rate (gph): 70
- Minimum Pressure Rate (psi): 80
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- UPC: 080044055938
- Part Description: 2009 GMC Savana 1500 Fuel Pump Module Assembly
Vehicle Fitment- 2009 GMC Savana 1500 | All Trims | 8 Cyl 5.3L
Autobest® Fuel Pump Module Assembly for 2009 GMC Savana 1500
PartNumber: F2799AProduct Specifications- Notes: Includes Fuel Pump, Fuel Pressure Regulator, Fuel Tank Pressure Sensor, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,FLEX;Except Left Hand Rear Hinged Door, w/Fuel Level Sensor
- Average Current Draw(A): 13.75
- Average Flow Rating(GPH): 33
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Racetrack
- Country of Orign: China
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 90
- Minimum Pump Pressure (PSI): 80
- Mounting Hardware Included: No
- Negative Ground: Yes
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 6.44
- Product Length (in): 15.2
- Product Width (in): 9.93
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 250
- Resistance Ohms Full: 40
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845127990
- Voltage: 12V
- Weight (lbs): 3.34
- Wire Harness Included: No
- Part Description: 2009 GMC Savana 1500 Fuel Pump Module Assembly
Vehicle Fitment- 2009 GMC Savana 1500 | All Trims | 8 Cyl 5.3L
Airtex® Fuel Pump Module Assembly for 2009 GMC Savana 1500
PartNumber: E3820MProduct Specifications- Notes: w/o Left Side Rear Hinged Door
- Gasket or Seal Included: Yes
- Inlet Count: 1
- Inlet Type: STRAINER
- Internal or External: Internal
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 70
- Maximum Pressure (psi): 62
- Minimum Free Flow Rate (gph): 60
- Minimum Pressure (psi): 55
- Outlet Count: 1
- Outlet Size: 3/8
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- Pump Type: Electrical
- UPC: 080044041665
- Voltage [V]: 12V
- Wiring Harness Included: No
- Part Description: 2009 GMC Savana 1500 Fuel Pump Module Assembly
Vehicle Fitment- 2009 GMC Savana 1500 | All Trims | All Engines
Autobest® Fuel Pump Module Assembly for 2009 GMC Savana 1500
PartNumber: F2831AProduct Specifications- Notes: Includes Fuel Pump, Fuel Pressure Regulator, Fuel Tank Pressure Sensor, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal,Standard Cargo Van,GAS;w/o Left Hand Side Rear Hinged Door, w/o Fuel Fitting For Auxillary Power Units
- Average Current Draw(A): 9
- Average Flow Rating(GPH): 50
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Rectangle
- Country of Orign: China
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 62
- Minimum Pump Pressure (PSI): 55
- Mounting Hardware Included: No
- Negative Ground: No
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 6.69
- Product Length (in): 15.75
- Product Width (in): 9.25
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 254
- Resistance Ohms Full: 42
- Strainer Included: Yes
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845128317
- Voltage: 12V
- Weight (lbs): 4.42
- Wire Harness Included: No
- Part Description: 2009 GMC Savana 1500 Fuel Pump Module Assembly
Vehicle Fitment- 2009 GMC Savana 1500 | All Trims | 6 Cyl 4.3L
Airtex® Fuel Pump Module Assembly for 2009 GMC Savana 1500
PartNumber: E3821MProduct Specifications- Notes: Exc Left Side Rear Hinged Door; Incls Fuel Pump, Fuel Pressure Reg, Fuel Tank Pressure Sensor, Sending Unit, Float, Fuel Reservoir, Fuel Strainer & Tank Seal
- Gasket Included: Y
- Inlet Count: 1
- Inlet Type: STRAINER
- Item Grade: STANDARD REPLACEMENT
- Maximum Free Flow Rate (gph): 85
- Maximum Pressure Rate (psi): 65
- Minimum Free Flow Rate (gph): 75
- Minimum Pressure Rate (psi): 55
- Outlet Count: 1
- Outlet Size: 3/8"
- Outlet Type: QUICK CONNECT
- Package Contents: PUMP & KIT
- Package Quantity: 1
- UPC: 080044049487
- Part Description: 2009 GMC Savana 1500 Fuel Pump Module Assembly
Vehicle Fitment- 2009 GMC Savana 1500 | All Trims | 8 Cyl 5.3L
Autobest® Fuel Pump Module Assembly for 2009 GMC Savana 1500
PartNumber: F2832AProduct Specifications- Notes: Includes Fuel Pump, Fuel Pressure Regulator, Fuel Tank Pressure Sensor, Sending Unit, Float, Fuel Reservoir, Fuel Strainer and Tank Seal;Exc. Left Side Rear Hinged Door
- Average Current Draw(A): 10.4
- Average Flow Rating(GPH): 46
- Connector Gender: Male
- Connector Quantity: 1
- Connector Shape: Racetrack
- Country of Orign: China
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: Yes
- Gasket or Seal Included: Yes
- Gasket Or Seal Material: NBR
- Grade Type: Performance
- Housing Material: POM
- In Tank or External: In Tank
- Inlet Size: 0.433
- Inlet Type: Strainer
- Installation Warnings: No
- Internal Or External Strainer: Internal
- Lock Ring Included: No
- Maximum Pump Pressure (PSI): 64
- Minimum Pump Pressure (PSI): 59
- Mounting Hardware Included: No
- Negative Ground: Yes
- Outlet Quantity: 1
- Outlet Size: 3/8
- Outlet Type: Quick Connect
- Product Height (in): 5.98
- Product Length (in): 15.43
- Product Width (in): 10.35
- Pump Type: Turbine
- Regulator Included: Yes
- Resistance Ohms Empty: 250
- Resistance Ohms Full: 40
- Strainer Included: No
- Terminal Gender: Male
- Terminal Quantity: 4
- Terminal Type: PIN
- UPC: 00072845128324
- Voltage: 12V
- Weight (lbs): 3.14
- Wire Harness Included: No
- Part Description: 2009 GMC Savana 1500 Fuel Pump Module Assembly
Vehicle Fitment- 2009 GMC Savana 1500 | All Trims | 8 Cyl 5.3L
